1. Door lock - Microwave oven door must be closed properly in order for it to
operate.
2. Viewing window - Allow user to see the cooking status.
3. Rotating axis - The glass turntable sits on the axis; the motor underneath it
drives the turntable to rotate.
4. Rotating ring -The glass turntable sits on its wheels; it supports the turntable
and helps it to balance when rotating.
5. Turntable - The food sits on the turntable, its rotation during operation helps to
cook food evenly.
- Place the rotating ring first and fit the turntable onto the rotating axis and make
sure that it is geared in properly.
6. Control panel - See below.
7. Waveguide cover - It is inside the microwave oven, next to the wall of control
panel.
WARNING: Never remove the waveguide cover
OPERATING INSTRUCTIONS

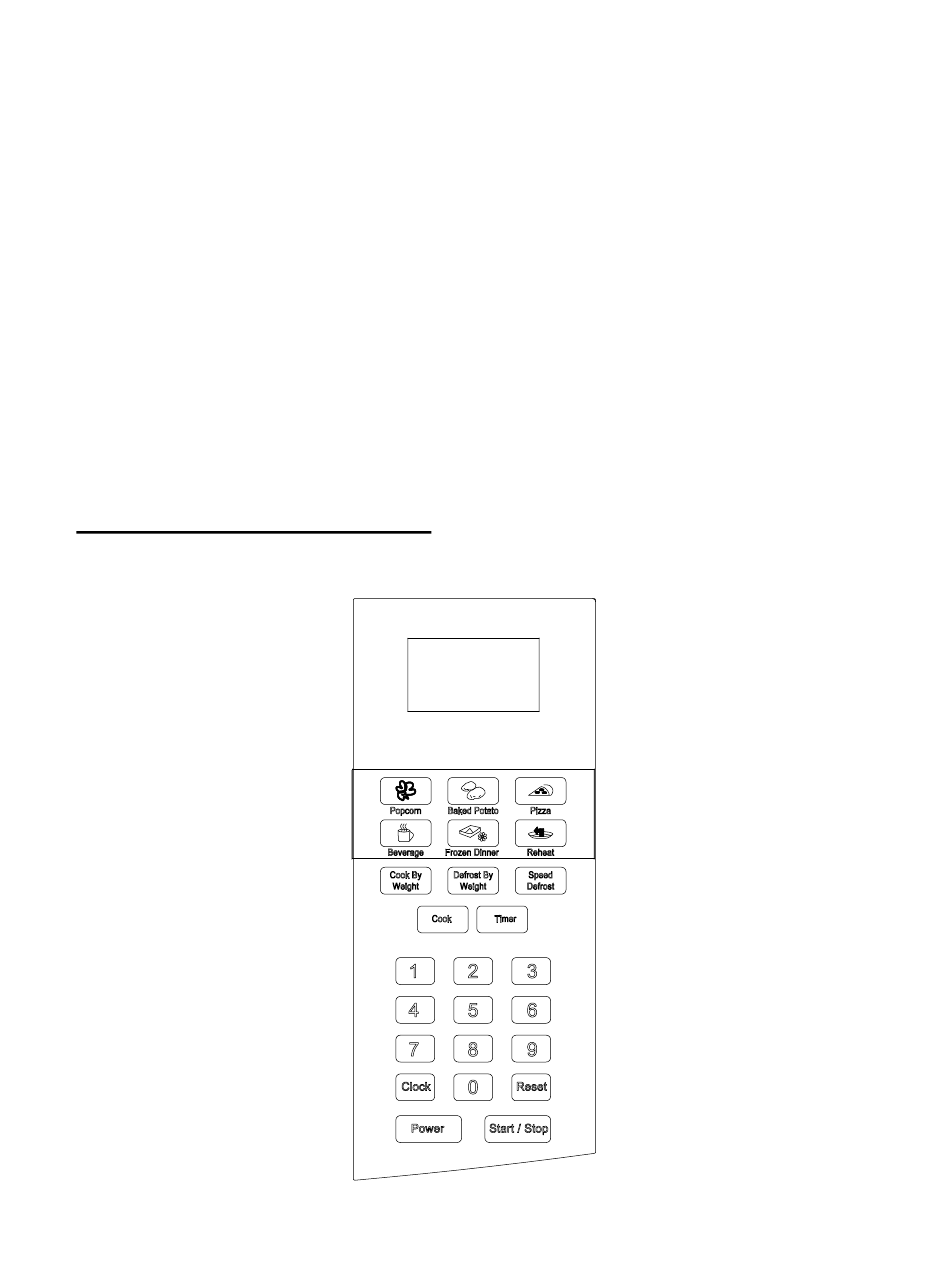

Control Panel:
9
