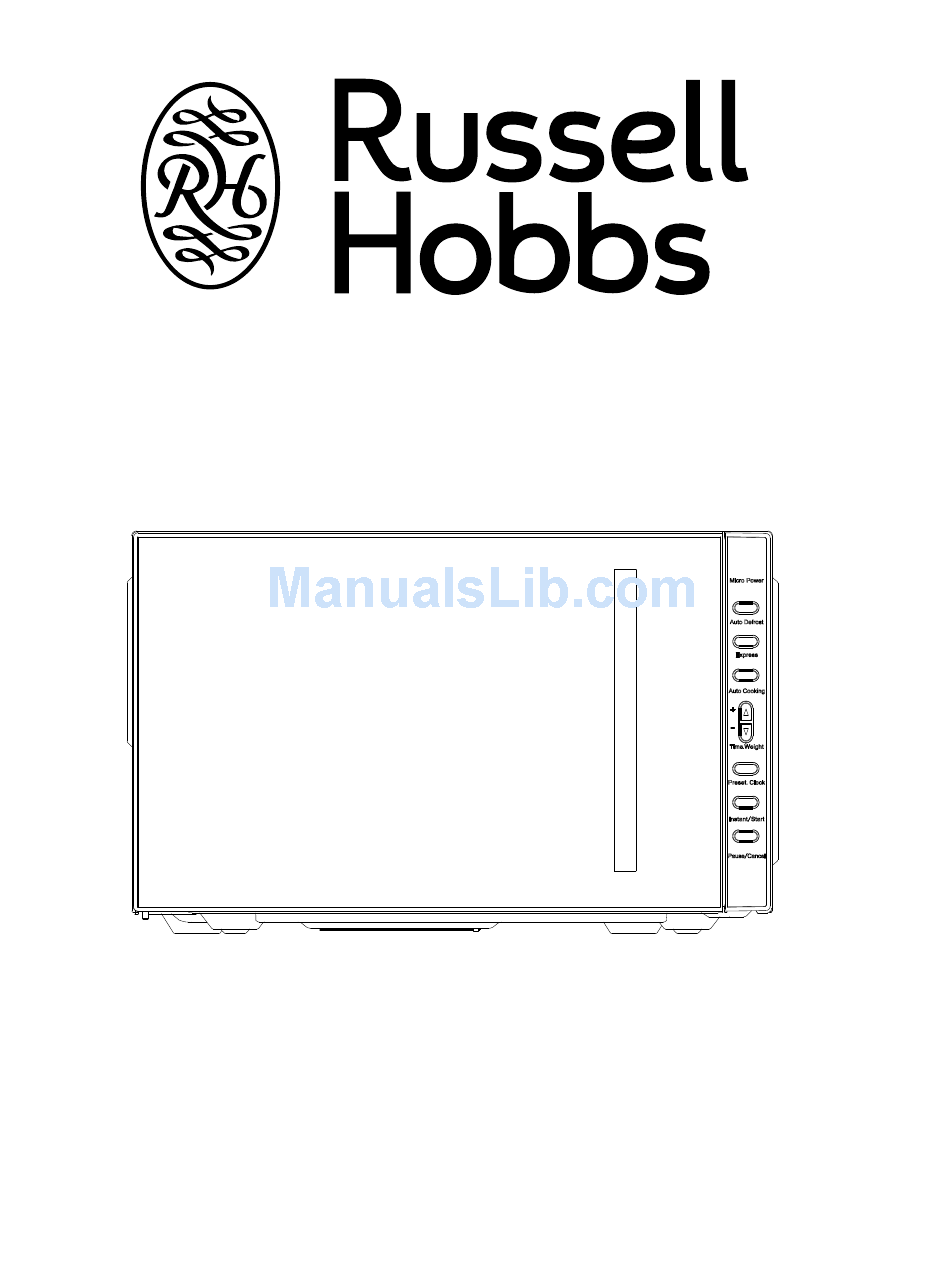

- Page 1 INSTRUCTIONS AND WARRANTY MODEL NO. RHEM22L RUSSELL HOBBS 20L ELECTRONIC MICROWAVE OVEN...
-
Page 2: Important Safeguards
Congratulations on purchasing our Russell Hobbs 20L Electronic Microwave Oven. Each unit is manufactured to ensure safety and reliability. Before using this appliance for the first time, please read the instruction manual carefully and keep it for future reference. FEATURES OF THE RUSSELL HOBBS 20L ELECTRONIC MICROWAVE OVEN ... - Page 3 3. Incorrect operation and improper use can damage the appliance and cause injury to the user. 4. The appliance is intended for household use only. Commercial use invalids the warranty and the supplier can not be held responsible for injury or damage caused when using the appliance for any other purpose than that intended.
- Page 4 15. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container. 16. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in burns.
- Page 5 30. Do not use the appliance on a gas or electric cooking top or over or near an open flame. 31. Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of the extension cord, appliance or plug point.
-
Page 6: Installation
Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the Door (bent), Hinges and latches (broken or loosened), Door seals and sealing surfaces. ... - Page 7 Hole A Clasp C Clasp B Hole A Clasp A Push Distance Limiter in this direction Secure Clasp A to Hole A Distance Limiter 1)Push Distance Limiter in the given direction; 2)Make sure Clasp A is secured to Hole A; 3)Insert Clasp B and Clasp C into their respective square holes.
-
Page 8: Turntable Installation
TURNTABLE INST ALLATION RADIO INTERFERENCE Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures: Clean the door and sealing surface of the oven. ... -
Page 9: Utensils Guide
Cover foods while cooking. Covers prevent spattering and help foods to cook evenly. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once. ... -
Page 10: Parts Diagram
Plastic Wrap Wax Paper Containers containing metal parts Metal Twist-ties Paper Bags Plastic Foam Wood PARTS DIAGRAM... -
Page 11: Control Panel
CONTROL PANEL Set Power level Select Auto Defrost menu Select express cooking menu Set auto cooking menu Select cooking time or weight during cooking Set clock Start Stop cooking or clear settings OPERATING INSTRUCTIONS HOW TO SET THE OVEN CONTROLS The LED display will flash 3 times once the microwave has been plugged into a power supply. -
Page 12: Microwave Cooking
1. Once the oven is plugged in, switched on and ready for input, the LED display will show “ ”. 2. Press the Preset. Clock button once and the display will show “00:00”. 3. Press the Auto cooking/Time. Weight button to set the amount of hours. Once selected, the display will show “08:00”. - Page 13 60% microwave power Applicable for steaming food. Medium Low power 40% microwave power Applicable for defrosting food. Low power 20% microwave power Applicable for keeping warm. Note that the longest cooking time is 60 minutes. Example: to cook at 80P for 10 minutes 1.
-
Page 14: Defrost By Weight
second duration. Each time you press the same button then the cooking period will increase by 30 seconds e.g. 00:30, 01:00 and 01:30. The maximum cycle time is 01:30, one minute and thirty seconds. 2. After choosing the desired Express cycle, press the Instant/ Start button to confirm your selection and start the process. - Page 15 The defrosting process can be considered complete if you are able to easily cut the food with a knife. A microwave will normally penetrate around 4cm into most food. Defrosted food should be consumed as soon as possible. It is not advised to put them back into the freezer.
- Page 16 RESET ELAYED TART UNCTION If you do not want the cooking cycle to start immediately, you can preset the cooking menu and time. By doing this, your cooking selection will automatically start at a time you prefer. This can be done in two steps: 1.
-
Page 17: Auto Cooking Menu
10. Press the Clock button to confirm the delayed start menu. Now the program has been activated and the cooking process with start at 14:30 in the afternoon. 11. You may check the starting time at any time by pressing the Clock button. Note: The digital clock must be set/ programmed by the user. -
Page 18: Child Lock
temperature is about 5-10℃. Use a big mouthed cup and do not seal it. Use to cook strips of potato chips. Ensure that they are cut into 5mm width, height and length. The total Potato weight should be at about 0.45kg. Place the strips on a large dish and cover the dish with a thin film to prevent water loss. -
Page 19: Troubleshooting
The display will show OFF. To cancel the CHILD LOCK: Press and hold the Pause/ Cancel button for about three (3) seconds. The display will revert to normal. ETTING ICROWAVE Once the cooking/ defrost selection has finished, the LED display will show the words “End” and three beeps will sound to prompt you that the process has completed and to take out the food or drink. -
Page 20: Maintenance
(3) Trouble with the power Test the power outlet with outlet other electrical appliances Microwave does not heat (4) The door is not closed Close the door well properly Refer to “Cleaning and Glass turntable makes noise (5) Dirty roller and cavity Maintenance”... - Page 21 If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.
-
Page 22: Changing The Plug
ERVICING PPLIANCE There are no user serviceable parts in this appliance. If the unit is not operating correctly, please check the following: You have followed the instructions correctly That the unit has been wired correctly and that the wall socket is switched on. ... - Page 23 IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED. W A R R A N T Y Home of Living Brands (Pty) Limited warrants to the original purchaser of this product (“the customer”) that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of 1 (one) year from the date of purchase (“warranty period”).
