Related Manuals for Russell Hobbs RHEM42G
Summary of Contents for Russell Hobbs RHEM42G

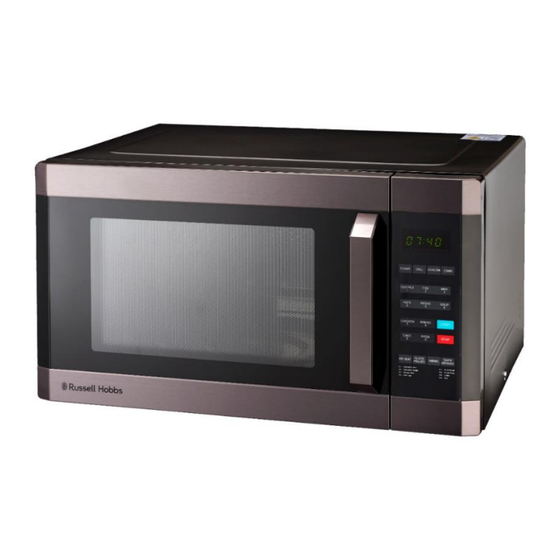

- Page 1 INSTRUCTIONS AND WARRANTY MODEL NO. RHEM42G RUSSELL HOBBS 42L ELECTRONIC MICROWAVE OVEN GRILL & CONVECTION...
- Page 2 Congratulations on purchasing our Russell Hobbs 42L Electronic Microwave Oven with Grill and Convection. Each unit is manufactured to ensure safety and reliability. Before using this appliance for the first time, please read the instruction manual carefully and keep it for future reference.
-
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS When using any electrical appliance, basic safety precautions should always be followed including the following: 1. Please read the instructions carefully before using any appliance. 2. Always ensure that the voltage on the rating label corresponds to the mains voltage in your home. - Page 4 11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 12.
- Page 5 19. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns or scalding. 20. Cooking utensils may become hot because of heat transferred from the heated food.
- Page 6 29. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven. 30. Do not use the appliance on a gas or electric cooking top or over or near an open flame.
-
Page 7: Specifications
42. The rear surface of the appliance should be placed against a wall. 43. Failure to comply with the above mentioned pre-cautions and instructions, could affect the safe operation of this machine. SPECIFICATIONS Model: RHEM42G Rated Voltage: 230V~50Hz Rated Input Power (Microwave): 1550W... -
Page 8: Installation
• PLEASE NOTE: If the microwave appliance is not maintained in a good state of cleanliness, its surface could become degraded, its lifespan affected and could result in a possibly hazardous situation. INSTALLATION 1. Make sure that all the packing materials are removed from the inside of the door. -
Page 9: Radio Interference
restricted. 12. Both glass tray and turntable ring assembly must always be used during cooking. 13. All food and containers are always to be placed on the glass tray for cooking. 14. If the glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. -
Page 10: Utensils Guide
top to bottom and from the center of the dish to the outside. UTENSILS GUIDE • The ideal material for a microwave utensil is material which is transparent. This allows energy to pass through the container and heat the food. •... - Page 11 Wax Paper Containers containing metal parts Metal Twist-ties Paper Bags Plastic Foam Wood Additional Information: Materials you can use in microwave oven...
-
Page 12: Parts Diagram
Materials to be avoided in microwave oven PARTS DIAGRAM A. Control Panel B. Turntable Shaft C. Turntable ring assembly D. Glass Tray E. Observation window F. Door Assembly... -
Page 13: Turntable Installation
G. Safety Interlock System H. Grill Rack TURNTABLE INSTALLATION 1. Never place the glass tray upside down. The glass tray should not be restricted. 2. Both glass tray and turntable ring should always be used during cooking. 3. All food and containers of food should always be placed on the glass tray for cooking. - Page 14 OPERATING INSTRUCTIONS The accessible surface may be hot during operation. .Setting the Clock When the microwave oven is electrified, the oven will display "0:00", the buzzer will ring once. The input time should be within 0:00--23:59(24 Hour) or 1:00--12:59 (12 Hour). (1) Press "...
- Page 15 (1) Press " POWER " once, the oven will display "P100". (2) Press " POWER" once again to choose 80% power, the oven will display "P80". (3) Press the number buttons of "1","0","0","0" in order, the oven will display "10:00" (4) Press "START "...
- Page 16 (1) Press the " CONVECTION " key several times to select the required temperature. Convection temperature varies from 140 degrees to 230 degrees. (2) Press the "STA RT" key to start preheating. The temperature figure will flash when reaching the temperature selected and buzzer will ring twice to remind you that you’ve put food in the oven.
- Page 17 Cooking temperatures explained: C1-C2: the microwaves cavity will heat up to and maintain a temperature of +/- 165℃ (give or take 5℃) - the convection function (C-1) or grill function (C-2) will switch on and off intermittently to maintain this temperature. C3-C4: the microwaves cavity will heat up to and maintain a temperature of +/- 200℃...
- Page 18 Reheat Chart:...
- Page 19 8. Defrost by time (1) Press "QUICK DEFROST" once, the oven will display "d-1". (2) Input the figure of the time of cooking. (The maximum cooking time is 99 minutes and 99 seconds.) (3) Press "START " key to start defrosting. 9.
- Page 20 Defrosting should not be set in the pre-set function. After selecting the cooking function, please do not press "START” (3) Press " CLOCK PRE-SET". "0:00" will display; (4) Press the number buttons to set pre-set time. (5) Press " START " to finish setting. ":" will light, buzzer will ring twice when the time is reached, then the cooking process will start automatically.
- Page 21 13. Auto Menu Cooking The numeral keys/functions 0—9 are matching with ten different subjects; Example: Cooking vegetable of 350g: (1) Press "VEGETABLE" button. (2) Press "VEGETABLE" button again to choose the weight, oven will display "350" (3) Press " START " to start cooking.
- Page 22 Auto Menu Chart: Press Menu Weight Display Times Times 150g (add water 30g) Once 02:20 Vegetable 350g (add water 60g) Twice 04:30 500g (add water120g) 3 Times 06:00 150g Once 02:30 250g Twice 03:50 Fish 350g 3 Times 05:10 450g 4 Times 06:30 650g...
- Page 23 200g Once 11:00 Pizza 300g Twice 12:30 400g 3 Times 14:00 Note: 1) When you select the Cake option, please do not put the cake into the oven immediately. The oven needs to be preheated at 180 degree first. After several minutes, the buzzer beeps twice to remind you to put the cake into the oven.
- Page 24 15. Multi-Stage Cooking Only two stages of cooking can be set. If one of the stages is defrosting, it will be Inserted as the first stage automatically. The auto menu should not be set here. The buzzer will ring once after each stage and the next stage will begin thereafter.
- Page 25 (8) During cooking state, press "CLOCK PRE-SET" to check the current time. It will be displayed for 2~3 seconds 18. Lock Function for Children Lock: In waiting state - 10 minutes will pass after each auto menu cooking, if there is no operation within 1 minute, the oven will enter into the child-lock state and the key/lock icon will light up.
-
Page 26: Troubleshooting
Trouble shooting Normal Microwave interfering with TV reception Dim oven light Steam accumulating on door, hot air out of vents Oven started accidently It is forbidden to run the unit without any food without food inside inside. It is very dangerous. Trouble Cause Solution... -
Page 27: Cleaning And Maintenance
CLEANING AND MAINTENANCE • This appliance is for household use only and is not user-serviceable. • Do not open or change any parts by yourself. Please refer to a qualified electrical service department or return to the supplier if servicing is necessary. •... -
Page 28: Storing The Appliance
dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position. • Remove odors from your oven by combining a cup of water with the juice and rind of one lemon in a deep microwaveable bowl, microwave for 5 minutes. -
Page 29: Servicing The Appliance
SERVICING THE APPLIANCE There are no user serviceable parts in this appliance. If the unit is not operating correctly, please check the following: • You have followed the instructions correctly • That the unit has been wired correctly and that the wall socket is switched on. - Page 30 Green/Yellow = Earth Blue = Neutral Brown = Live...
-
Page 31: Year Warranty
PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED. 2 YEAR WARRANTY 1 year retail ⵏ 1 year extended warranty upon registration* visit www.russellhobbs.co.za W A R R A N T Y AND EXTENDED WARRANTY Home of Living Brands (Pty) Limited ("Home of Living Brands") warrants to the original purchaser of this product ("the customer") that this product will be free of defects in quality and workmanship which under normal personal,... - Page 32 This warranty will extend only to the product provided at the date of the purchase and not to any expendables attached or installed by the customer. In this regard any accessories supplied with the product by the supplier, may be excluded in this warranty or extended warranty (see Exclusions to Warranty and Extended Warranty document).
- Page 33 www.homeoflivingbrands.com www.russellhobbs.co.za www.facebook.com/RussellHobbsSA HOME OF LIVING BRANDS (PTY) LTD (JOHANNESBURG) JOHANNESBURG TEL NO. (011) 490-9600 CAPE TOWN TEL NO. (021) 552-5161 DURBAN TEL NO. (031) 303-1163...
