Related Manuals for Russell Hobbs RHEM29L
Summary of Contents for Russell Hobbs RHEM29L

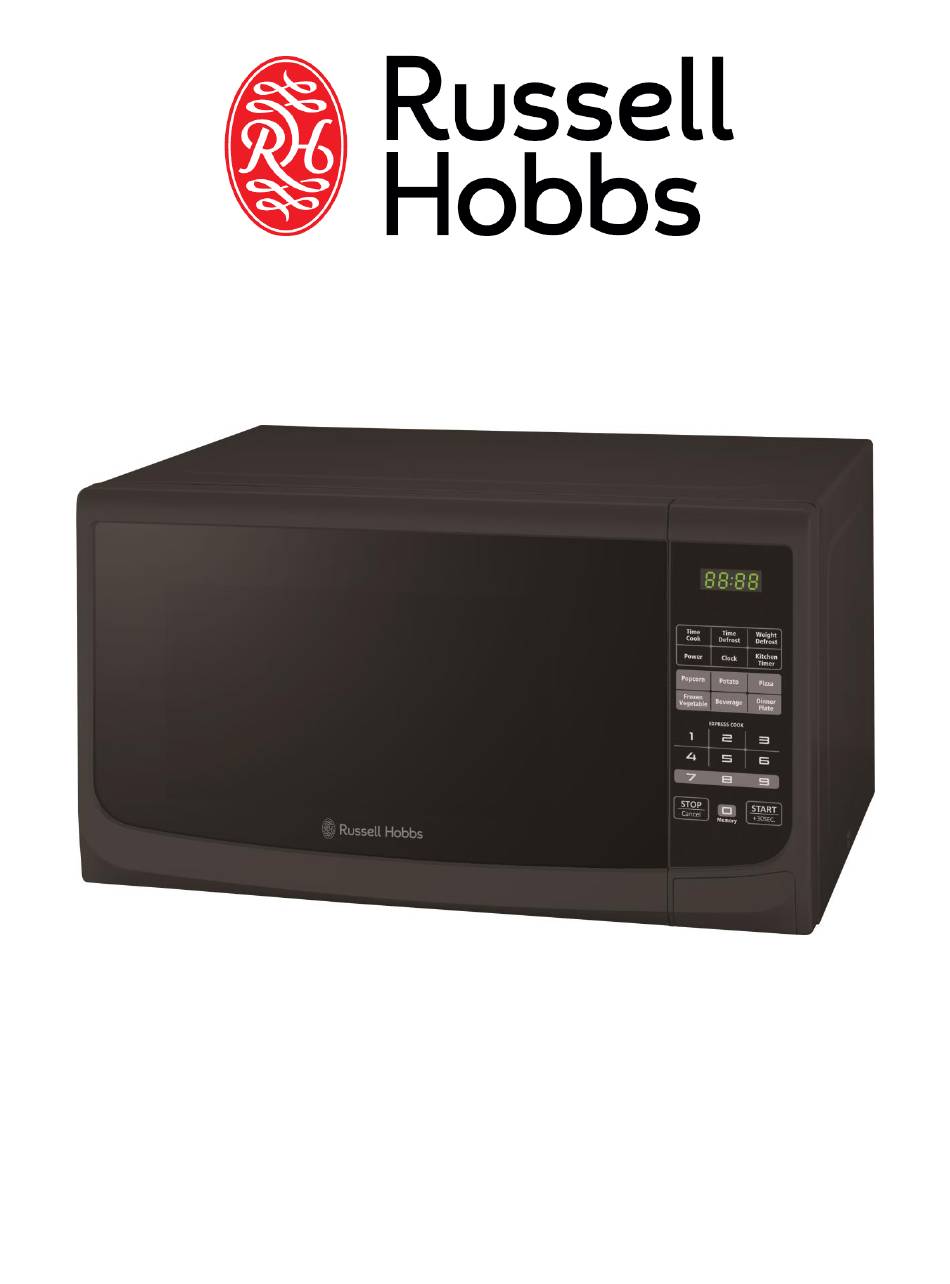

- Page 1 INSTRUCTIONS AND WARRANTY MODEL NO. RHEM29L RUSSELL HOBBS 28L ELECTRONIC MICROWAVE OVEN...
-
Page 2: Important Safeguards
Congratulations on purchasing our Russell Hobbs 28L Electronic Microwave Oven. Each unit is manufactured to ensure safety and reliability. Before using this appliance for the first time, please read the instruction manual carefully and keep it for future reference. FEATURES OF THE RUSSELL HOBBS 28L ELECTRONIC MICROWAVE OVEN •... - Page 3 Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent Do not operate the oven when empty. 10. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.
- Page 4 equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose. 24. Never immerse the unit in water or any other liquid for cleaning purposes. 25.
-
Page 5: Specifications
SPECIFICATIONS Model: RHEM29L Rated Voltage: 230V~ 50Hz Rated Input Power(Microwave): 1450W Rated Output Power(Microwave): 900W Oven Capacity: Turntable Diameter: 315mm External Dimensions: 513 x 395 x 307mm Net Weight: Approx. 14 kg PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY •... -
Page 6: Radio Interference
Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 20cm at back and 20cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet. -
Page 7: Utensils Guide
UTENSILS GUIDE • The ideal material for a microwave utensil is material which is transparent. This allows energy to pass through the container and heat the food. • A microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used. -
Page 8: Parts Diagram
PARTS DIAGRAM TURNTABLE INSTALLATION... -
Page 9: Power Level
Never place the glass tray upside down. The glass tray should not be restricted. Both glass tray and turntable ring should always be used during cooking. All food and containers of food should always be placed on the glass tray for cooking. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service centre. -
Page 10: Speedy Cooking
Press "POWER" once, LED will display "PL10". The default power is 100% power. You can now press number keys to adjust the power level. Press " START/+30SEC." to start cooking. Example: to cook the food with 50% microwave power for 15 minutes. a. -
Page 11: Dinner Plate
Press "START/+30SEC." to start defrosting. The remaining cooking time will be displayed. POPCORN Press "POPCORN" repeatedly until the number you wish appears in the display, "50","100" grams will display in order. For example, press "POPCORN" once, "50" appears. Press "START/+30 SEC." to cook the popcorn, buzzer sounds once. When cooking has finished, buzzer will sound five times and then turn back to the waiting state.Important Information about Microwave Popcorn Feature: •... -
Page 12: Multi-Stage Cooking
PIZZA Press "PIZZA" repeatedly until the number you wish appears in the display, "100", "200", "400" grams will display in order. For example, press "PIZZA" once, "100" appears. Press "START/+30 SEC." to cook, buzzer sounds once. When cooking has finished, buzzer sounds five times and then turns back to waiting state. -
Page 13: Other Specifications
microwave power will be displayed. After three seconds, the oven will turn back to the previous state. In multi-stage state, the inquiring way can be done by the same way as above. CHILD LOCK SAFETY FEATURE Lock: In waiting state, press "STOP/CANCEL" for 3 seconds, there will be a long "beep" denoting entering into the child-lock state;... -
Page 14: Troubleshooting
TROUBLE SHOOTING It is forbidden to run the unit without any food inside. It is very dangerous. -
Page 15: Cleaning And Maintenance
According to the Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time you need to dispose of this product, please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available. CLEANING AND MAINTENANCE •... -
Page 16: Storing The Appliance
in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. • Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities. -
Page 17: Changing The Plug
CHANGING THE PLUG Should the need arise to change the fitted plug, follow the instructions below. This unit is designed to operate on 230V~240V current only. Connecting to other power sources may damage the appliance. Connect a three-pin plug as follows: The wires in this mains lead are coloured in accordance with the following code: Green/Yellow = Earth... -
Page 18: Year Warranty
PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED. 2 YEAR WARRANTY 1 year retail ⵏ 1 year extended warranty upon registration* visit www.russellhobbs.co.za W A R R A N T Y AND EXTENDED WARRANTY Home of Living Brands (Pty) Limited ("Home of Living Brands") warrants to the original purchaser of this product ("the customer") that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of... - Page 19 www.russellhobbs.co.za www.facebook.com/RussellHobbsSA EXCLUSIONS TO W A R R A N T Y AND EXTENDED WARRANTY Any accessories supplied with the product, including but not limited to, bowls, jugs, mills or carafes made either of glass or plastic and supplied with this appliance (hereinafter referred to as “the accessory or accessories”), is warranted to be free from material and workmanship defects for the duration of the appliance warranty.
