Related Manuals for Russell Hobbs RHEM28L
Summary of Contents for Russell Hobbs RHEM28L

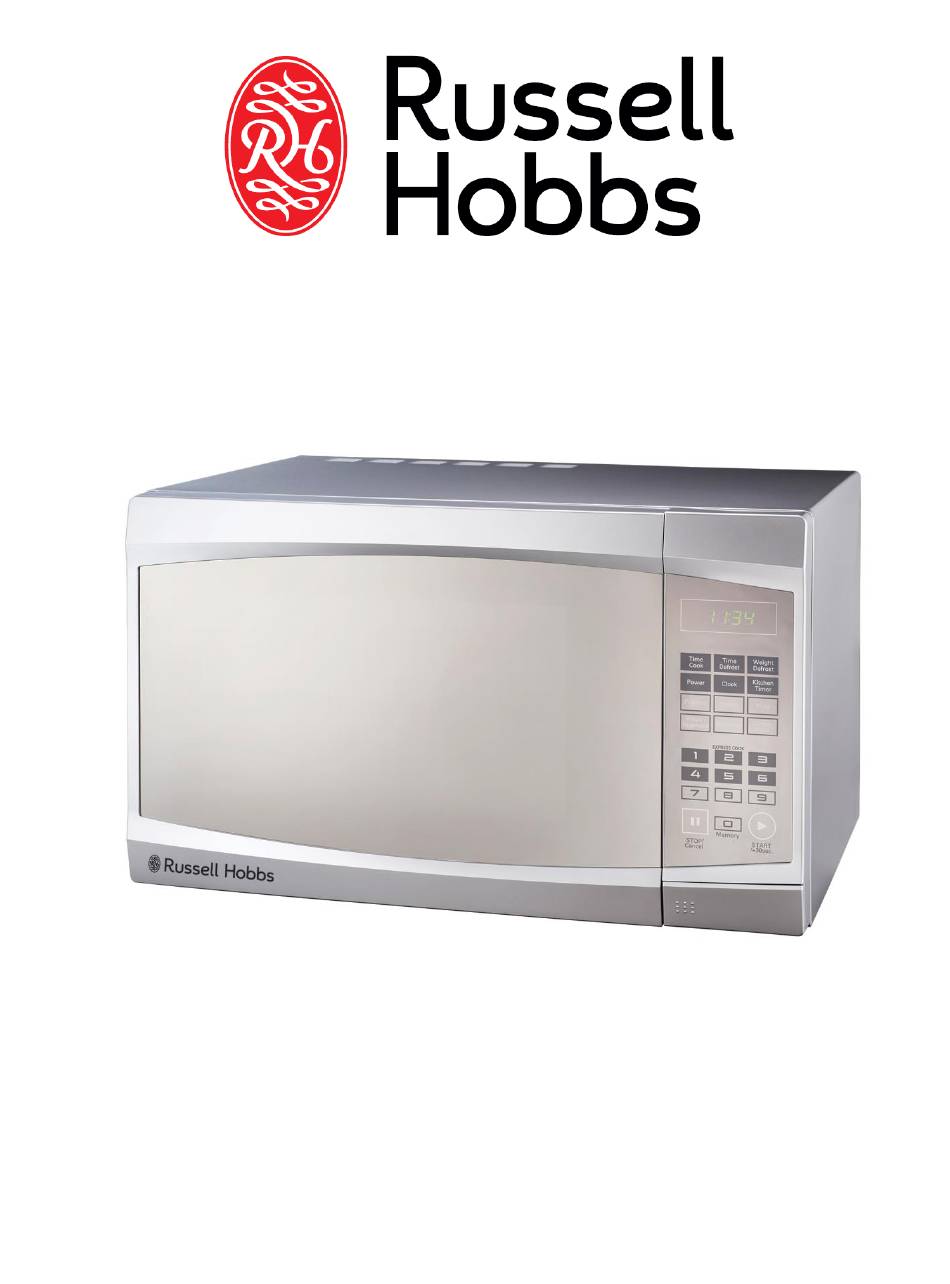

- Page 1 INSTRUCTIONS AND WARRANTY MODEL NO. RHEM28L RUSSELL HOBBS 28L ELECTRONIC MICROWAVE OVEN...
-
Page 2: Important Safeguards
Congratulations on purchasing our Russell Hobbs 28L Electronic Microwave Oven. Each unit is manufactured to ensure safety and reliability. Before using this appliance for the first time, please read the instruction manual carefully and keep it for future reference. FEATURES OF THE RUSSELL HOBBS 28L ELECTRONIC MICROWAVE OVEN ... - Page 3 Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent Do not operate the oven when empty. 10. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.
- Page 4 equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose. 24. Never immerse the unit in water or any other liquid for cleaning purposes. 25.
-
Page 5: Specifications
SPECIFICATIONS Model: RHEM28L Rated Voltage: 230V~ 50Hz Rated Input Power(Microwave): 1450W Rated Output Power(Microwave): 900W Oven Capacity: 28 L Turntable Diameter: 315mm External Dimensions: 520x408x 326mm Net Weight: Approx. 14.5kg PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ... -
Page 6: Radio Interference
This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials. -
Page 7: Utensils Guide
UTENSILS GUIDE The ideal material for a microwave utensil is material which is transparent. This allows energy to pass through the container and heat the food. A microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used. -
Page 8: Parts Diagram
PARTS DIAGRAM TURNTABLE INSTALLATION Never place the glass tray upside down. The glass tray should not be restricted. Both glass tray and turntable ring should always be used during cooking. All food and containers of food should always be placed on the glass tray for cooking. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service centre. -
Page 9: Power Level
OPERATING INSTRUCTIONS POWER LEVEL 11 power levels are available. Level 10% 0% Power 100% 90% 50% 40% Display PL10 CLOCK SETTING Press "CLOCK ", "00:00" will display. Press the number keys and enter the current time. For example, time is 12:10 now, press "1, 2, 1, 0" in that order. -
Page 10: Speedy Cooking
within 1 minute, the oven will go back to the former setting automatically. 2) If "PL0" is selected, the oven will work with fan for no power. You can use this level to remove odour from the oven. 3) During microwave cooking, "POWER" can be used to change the power you need. After pressing "POWER", the current power will flash for 3 seconds, now you can press the number button to change the power. -
Page 11: Dinner Plate
Popcorn Feature: When selecting 100 grams of popcorn, it is suggested that you fold down a triangle on each corner of the bag before cooking. If/when the popcorn bag expands and no longer rotates properly, please press STOP/CANCEL button once and open the oven door and adjust the bag position to ensure even cooking. -
Page 12: Multi-Stage Cooking
PROGRAMMABLE MEMORY FUNCTION Press "0/MEMORY" to choose memory 1-3 procedure. The LED will display 1, 2, 3. If the procedure has been set, press "START/ +30 SEC." to use it. If not, continue to set the procedure. Only one or two stages can be set. -
Page 13: Other Specifications
Lock quitting: In locked state, press "STOP/CANCEL" for 3 seconds, there will be a long "beep" denoting that child-lock is released. CYCLE REMINDER FUNCTION When the cycle has finished, the buzzer will go off 5 "beeps" to alert the user that cooking has completed. -
Page 14: Troubleshooting
TROUBLE SHOOTING It is forbidden to run the unit without any food inside. It is very dangerous. According to the Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time you need to dispose of this product, please do NOT dispose of this product with household waste. -
Page 15: Cleaning And Maintenance
CLEANING AND MAINTENANCE This appliance is for household use only and is not user-serviceable. Do not open or change any parts by yourself. Please refer to a qualified electrical service department or return to the supplier if servicing is necessary. ... -
Page 16: Storing The Appliance
STORING THE APPLIANCE Unplug the unit from the wall outlet and clean all the parts as instructed above. Ensure that all parts are dry before storing. Store the appliance in its box or in a clean, dry place. ... -
Page 17: Year Warranty
PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED. 2 YEAR WARRANTY 1 year retail/ 1 year extended warranty upon registration* visit www.russellhobbs.co.za W A R R A N T Y AND EXTENDED WARRANTY Home of Living Brands (Pty) Limited ("Home of Living Brands") warrants to the original purchaser of this product ("the customer") that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of...
