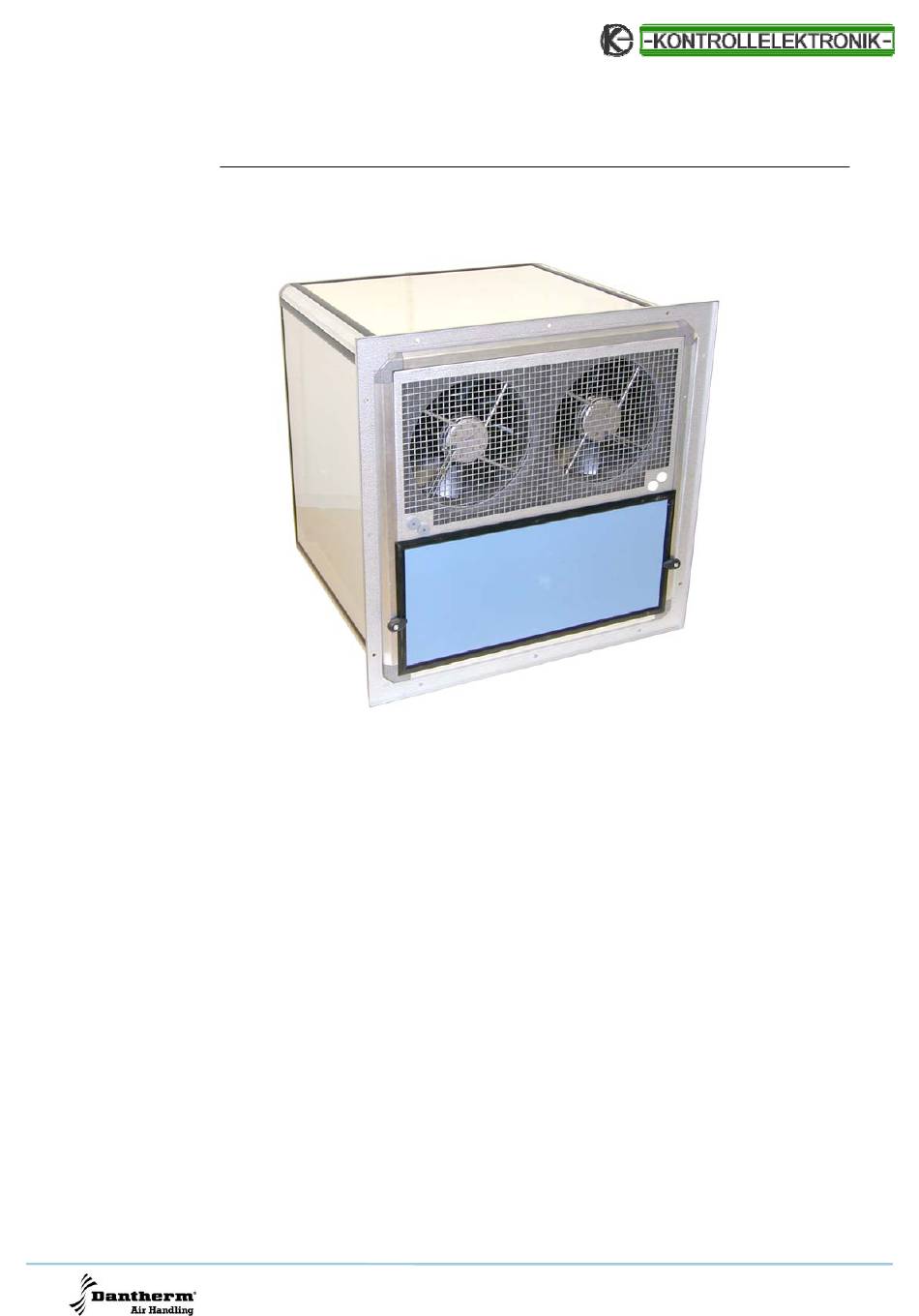

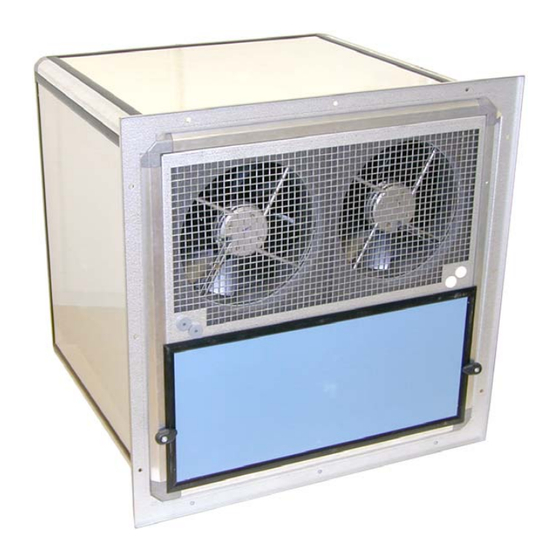

Page 1: Table Of Contents Efc2 V2 Tc
EFC2 V2 TC Service manual U:\Manuals\EFC\EFC2V2TC -EN-.pdf 1/15 2008-11-13... -
Page 2: Table Of Contents
In the table below you can see how to contact the manufacturer and sales offices. Office Sweden Norway Denmark Name Kontrollelektronik A/S Dantherm avd. Dantherm Air Handling A/S Dantherm Air Handling AB Kontrollelektronik Address Virkesgatan 5 Postboks 147 / Marienlystvej 65 Storgatan 29 SE-614 31 Söderköping... -
Page 3: General Information
Kontrollelektronik Dantherm Air Handling AB. Reservations The service manual is subject to changes without notice. CE-Declaration of Kontrollelektronik Dantherm Air Handling AB, Virkesgatan 5, SE-614 31 Söderköping Conformity hereby declare that the unit are in conformity with the following directives: 2006/95/EG... -
Page 4: Technical Data
Technical data Free Cooling The table below shows the performance of the Free cooling unit: Performance 48V DC Specification 230V AC Air flow (at 53 V DC) 622 l/s (2240m 700 l/s (2520m Free cooling capacity 746 W/K 830 W/K Free cooling capacity at Δt=7°C 5,2 kW 5,8 kW... - Page 5 Technical data, continued Filter data In the table below the data of the filter are specified: Compact filter Specification Type Compact filter Removal efficiency Dimensions 540 x 548 x 130 mm Total Area 10,5 m Filter monitor setting 130 Pa Controlling The table below show the components and types for controlling of the Free cooling unit: 48 VDC...
-
Page 6: Dimensions
Dimensions Illustration This drawing illustrates the dimensions of the Free cooling unit: BOTTOM OF UNIT WITH AIR INTAKE GRILL FRAME WALL WALL FRONTVIEW WITH FRAME SIDE VIEW TKS 3000 TEMPERATURE CONTROLLER INDOOR TEMPERATURE OUTDOOR TEMPERATURE SET INDOOR TEMP. SET COOLI NG UNITS (0-1-2) SET TEMP. -
Page 7: Functional Description
Functional description Flow The picture below schematically shows the air flow in a shelter. In the same picture some accessories that can be connected to the controller are shown. RADIOBASE SHELTER EFC2 V2 230 V TKS 3000 ELECTRICAL HEATER 230V AC (ACCESSORY U:\Manuals\EFC\EFC2V2TC -EN-.pdf 7/15... -
Page 8: Wiring Diagram - Tks 3000
Wiring diagram – TKS 3000 Int fuse 5AT U:\Manuals\EFC\EFC2V2TC -EN-.pdf 8/15 2008-11-13... -
Page 9: Wiring Diagram - Acue Cs1
Wiring diagram – ACUE CS1 U:\Manuals\EFC\EFC2V2TC -EN-.pdf 9/15 2008-11-13... -
Page 10: Preventive Maintenance
20 and then go back to normal operation. Interval Kontrollelektronik Dantherm Air Handling AB recommends that intervals between preventive maintenance do not exceed 1 year. It is also our recommendation that the site and unit is examined closely during the first preventive maintenance to determine whether the interval is too long. -
Page 11: Spare Parts List
In the table below you can see how to contact the manufacturer and sales offices. Office Sweden Norway Denmark Name Kontrollelektronik A/S Dantherm avd. Dantherm Air Handling A/S Dantherm Air Handling AB Kontrollelektronik Address Virkesgatan 5 Postboks 147 / Marienlystvej 65 Storgatan 29 SE-614 31 Söderköping... -
Page 12: Test Report: Tks 3000 And Acue 3000
Test Report: TKS 3000 and ACUE 3000 Introduction After electrical installation of the free air cooling unit, the display normally shows actual room temperature (if indication is at Indoor temp). The following tests shall be done to secure the function of the system. Every checkpoint shall be receipted with a sign and finally a date. - Page 13 Test Report: TKS 3000 and ACUE 3000, continued Fire & smoke alarm After the self test, the Fire and smoke alarm (if applicable) shall be done. Check Alarm Action Fire & smoke alarm Activate the smoke detector. Check that everything is stopped: Fan, Heater, AC, and that the dampers are closed.
-
Page 14: Test Report: Acue Cs1
Test Report: ACUE CS1 Introduction After electrical installation of the free air cooling unit, the display normally shows actual room temperature (if indication is at Indoor temp). The following tests shall be done to secure the function of the system. Every checkpoint shall be receipted with a sign and finally a date. - Page 15 Test Report: ACUE CS1, continued Test of temperature If the display show a “-“ this means that the sensors is out of range. What the sensor sensors indicate, warm or cold, indicates with the lamps LOW TEMP. ALARM respectively HIGH TEMP. ALARM following: LOW TEMP.
