INSTALLATION MANUAL
739TLK Traditional Log Kit—for G3 739M & 738K
Description
The 739TLK Traditional Log kit installs in a Valor G3
739M or 738K fi replaces.
Material Required
• Traditional Log Kit, which contains:
• 6 logs
• 3 embers
• 1 log support bracket
• Gloves, if desired

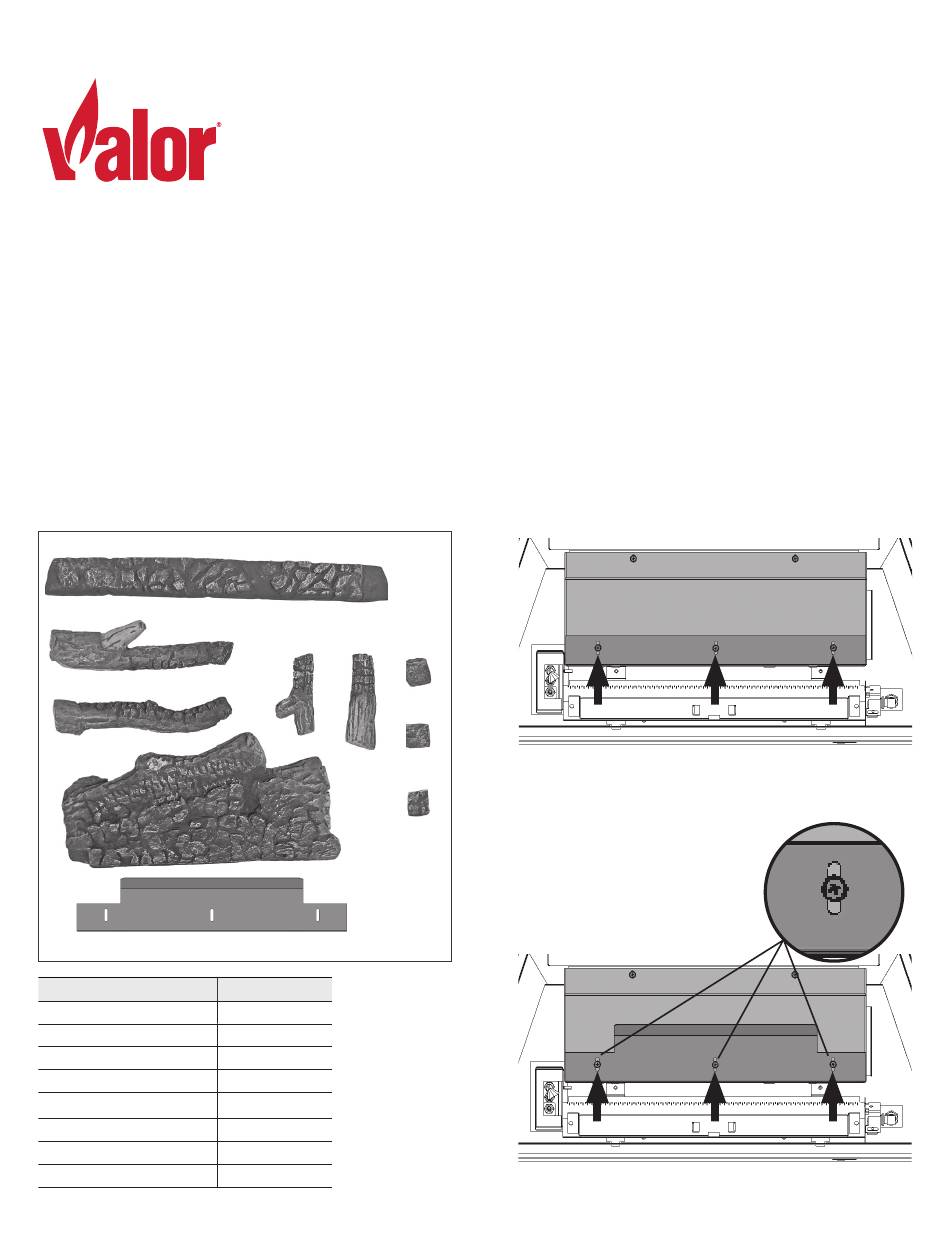

Kit Content
Base Panel
G31
G32
G30
Fuel Bed Support Bracket
Item
Base Panel
Log G30
Log G31
Log G32
Log G33
Log G34
Embers (3)
Fuel Bed Support Bracket
© Copyright Miles Industries Ltd., 2022
G3 739TLK
Embers
G33
G34
Part Number
4008849
4008844
4008845
4008846
4008847
4008848
4008850
4009301
Installation
Carefully unpack the kit. Note each log has its own
number stamped on the bottom. Some logs have pegs
to help you place them on the burner platform, or other
logs.
Replace Fuel Bed Support Bracket
The fi replace is supplied with the fuel bed support
and bracket shown below. For this log set, the fuel
bed support bracket must be changed for the bracket
included with the log set.
1. Remove the factory-installed fuel bed support
bracket (3 screws).
2. Install the fuel bed support bracket supplied with
the log set, securing it re-using the same screws.
Ensure the screws are centered
in the bracket's slots as shown.
1
