Installation & Operating Instructions
!
WARNING
!
WARNING
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light the appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
4001839-11
©2010, Miles Industries Ltd.
L
egend

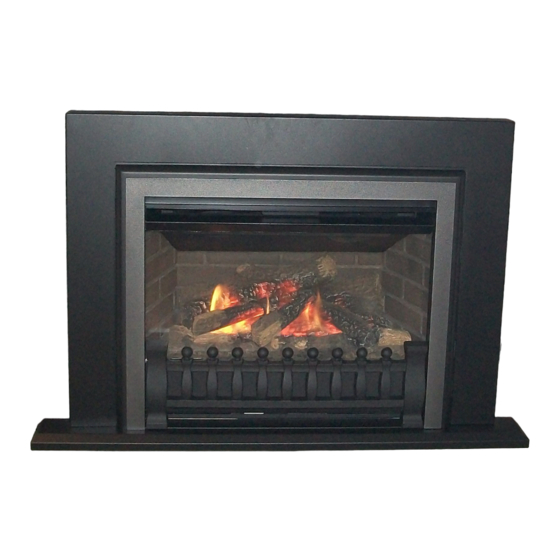

Direct Vent Gas Insert
739ILN (NG) & 739ILP (LPG)
WARNING
HOT GLASS WILL
HOT GLASS WILL
HOT GLASS WILL
CAUSE BURNS.
CAUSE BURNS.
CAUSE BURNS.
DO NOT TOUCH GLASS
DO NOT TOUCH GLASS
DO NOT TOUCH GLASS
UNTIL COOLED.
UNTIL COOLED.
UNTIL COOLED.
NEVER ALLOW CHILDREN
NEVER ALLOW CHILDREN
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
TO TOUCH GLASS.
TO TOUCH GLASS.
Manufactured by
MILES INDUSTRIES LTD., British Columbia, Canada
www.valorfireplaces.com
INSTALLER: Leave this manual
with the appliance.
CONSUMER: Retain this manual
for future reference.
Please read this manual BEFORE
installing and operating this
appliance.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where not
prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in a
bedroom or bed sitting room.
Massachusetts: The piping and final
gas connection must be performed by a
licensed plumber or gas fitter in the State of
Massachusetts.
Advertisement
Table of Contents
Related Manuals for Valor Legend 739ILN
Summary of Contents for Valor Legend 739ILN
- Page 1 egend Direct Vent Gas Insert 739ILN (NG) & 739ILP (LPG) Installation & Operating Instructions WARNING WARNING WARNING HOT GLASS WILL HOT GLASS WILL HOT GLASS WILL INSTALLER: Leave this manual CAUSE BURNS. CAUSE BURNS. CAUSE BURNS. with the appliance. DO NOT TOUCH GLASS DO NOT TOUCH GLASS DO NOT TOUCH GLASS CONSUMER: Retain this manual...
- Page 2 Thank You ... For purchasing a Valor by Miles Industries. Your new radiant gas heater is a technical appliance that must be installed by a qualified dealer. Each Valor fireplace is fully tested during the production process for your safety and comfort.
-
Page 3: Table Of Contents
Table of Content Safety and Warning Information..............4 ◊ Specifications ....................5 Overview ......................6 ◊ Dimensions ....................7 Cavity ......................7 ◊ Clearances ......................8 Venting ......................9 Installation Planning ..................10 Existing Fireplace Preparation ..............10 Appliance Preparation .................11 Gas Supply Installation ................14 Ceramic Bricks Installation .................15 Ceramic Logs Installation ................15 Window Refitting ..................17 ◊... -
Page 4: Safety And Warning Information
Safety and Warning Information READ and UNDERSTAND all instructions carefully This unit MUST be used with a vent system as before starting the installation. FAILURE TO FOLLOW described in this installation manual. NO OTHER vent these installation instructions may result in possible fire system or components MAY BE USED. -
Page 5: Specifications
Safety and Warning Information Operating your fireplace for the first time It is also possible that these vapors could set off any smoke detection alarms in the immediate vicinity. When operating your new fireplace for the first time, These vapors are quite normal on new appliances. We some vapors may be released due to the burning of recommend opening a window to vent the room. -
Page 6: Overview
Overview This appliance may ONLY be installed in an existing unaltered, functioning solid-fuel burning fireplace with a working flue and constructed of non-combustible material. DO NOT install into combustible construction. This appliance is NOT APPROVED for installation with a zero clearance kit. Chimney Terminal Cap Flashing 2 x 3”... -
Page 7: Dimensions
Dimensions 28-5/8” (727 mm) 19-1/2” (495 mm) 12” (305 mm) or 12-5/8” (321 mm) Varies with outer trim options Optional Outer Trim or Surround sold separately 9-3/8” (238 mm) or 10” (254 mm) Varies with outer trim options 20” (508 mm) Gas inlet Gas connection Electrical inlet... -
Page 8: Clearances
Clearances WARNING Some materials or items, altough safe, may discolor, warp, crack, peel, and so on because of the heat produced by the fireplace. Avoid placing candles, paintings, photos, and other items sensitive to heat around the fireplace. Combustible Mantel Clearances Mantel 1”... -
Page 9: Venting
Venting Typical Vent Installation See list of approved Venting Accessories on page 28 of this manual. Vent Location The vent terminal must be located through the Terminal Cap roof. This direct vent appliance is designed to opreate when an undistrubed airflow hits the outside vent terminal from any direction. -
Page 10: Installation Planning
Installation Planning Installer—READ THIS FIRST 1. YOU NEED TO KNOW FROM THE Tools and supplies required HOMEOWNER what accessories (surround, • Packing knife door, etc.) will be installed with this fireplace; • Screwdriver set 2. Unpack the appliance. • Pliers 3. -
Page 11: Appliance Preparation
Existing Fireplace Preparation Gas Line Routing Combustible Mantels Plan the routing of the gas line before proceeding. Combustible mantel clearances must conform to those Utilize the existing hole for the gas line of the factory- required for the original solid-fuel fireplace into which built fireplace. -
Page 12: Window Removal
Appliance Preparation Window Removal The window is held in place by four spring-loaded bolts, two at the top and two at the bottom. 1. To remove the window, turn each bolt a quarter turn to disengage the bolt pin. 2. Gently pull the bottom of the window outward and unhook it from the firebox’s opening frame. -
Page 13: Venting Installation
Appliance Preparation Venting Installation IMPORTANT: This appliance’s venting system is room sealed and therefore, does not require room air to be used in the combustion process. 1. Rough-in two 3” diameter vent liners into the existing chimney system from the roof. Be careful not to tear or damage the liners in the process. -
Page 14: Gas Supply Installation
Gas Supply Installation The gas supply inlet connection is a 3/8” NPT female Pressure Test Points connector and is located on the left hand side of the The minimum supply pressure is given in the section control valve. Specifications of this manual—page 5. All piping and connections must be tested for leaks after installation or servicing. -
Page 15: Ceramic Bricks Installation
Ceramic Bricks Installation The following guidelines apply for all brick liners. 4. Rotate the anchor up and out of the way and slide the right hand side panel against the firebox side. 1. Inside the firebox, on the top of each side, release Rotate the anchor back down to hold the panel. - Page 16 Ceramic Logs Installation 2. Place the rear log centering it side to side in the 5. Identify the right cross log; it has firebox. Position forward until it sits against the a hole under on of its end and it is sheet metal return behind the burner.
-
Page 17: Window Refitting
Window Refitting 1. To refit the window, hook its top part to the firebox’s opening frame. Make sure that the wider part of the window frame is at the bottom. 2. While you hold it, push in and turn the two top spring-loaded bolts a quarter turn to engage their pin. -
Page 18: Operation Check & Aeration Settings Adjustment
Operation Check & Aeration Settings Adjustment Operation Check In a few unusual installations, the flame picture may be improved by adjusting the aeration. The need for Turn the fireplace flame up and down using the adjustment should be determined only by operating the remote control to confirm that the full range of inputs appliance with the ceramic logs and window installed. -
Page 19: Owner's Information
Owner’s Information • Clean the glass regularly as soon as you notice CAUTION the buildup (white film). If the film is left for a longer Your fireplace becomes very hot when operating. period of time, it will bake on. It is then much harder, Avoid placing decorating objects sensitive to heat if not impossible, to remove. - Page 20 Owner’s Information Soot or dust can be brushed from the ceramic logs Batteries and firebox walls using a soft brush. Dust can also CAUTION be removed from the burner using a soft brush after DO NOT USE a screwdriver or other metallic object removing the ceramic logs.
- Page 21 Owner’s Information Manual On/Off Switch In cases where you want to turn off your fireplace and cannot do it with the remote control handset (misplaced, lost, dead batteries, etc.) or if you need to replace the receiver’s batteries, you can turn off the appliance with the manual switch located on the right hand side of the valve.
-
Page 22: Remote Control Operation
Remote Control Operation NOTE: Before using the remote control system for the first time, the receiver and the handset must be synchronized. See the section Remote Control Initial Set-up on page 17 in this manual. Your fireplace remote control helps you get the comfort, convenience and aesthetics you want from your gas fireplace. The remote controls your fireplace in different ways. -
Page 23: Flame Height
Remote Control Operation Operation Modes STANDBY MODE—Ignited pilot only. MAN MODE —Manual Mode. You can use this mode to adjust the flame height up or down. ☼ TEMP MODE —Daytime Temperature Mode (appliance must be in Standby mode; pilot ignited): The room temp temperature is measured and compared to the set temperature. - Page 24 Remote Control Operation Temperature Use this setting when you come in and want to enjoy a set temperature. MODE or the ☽ 1. Select either the ☼ MODE by briefly pressing the SET button. temp temp 2. Hold the SET button until the TEMP display flashes. 3.
-
Page 25: Options
Remote Control Operation Low Battery Indication CAUTION Remote handset: BATT will appear on the display when DO NOT USE a screwdriver or other metallic object the battery needs to be replaced. to remove the batteries from the battery box or the Replace with one 9 V alkaline battery. -
Page 26: Lighting Instructions
Lighting Instructions FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING : If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand or by remote control. Follow these instructions exactly. To save gas, turn the pilot off when not using the appliance for a prolonged period of time. -
Page 27: Wiring Diagram
Wiring Diagram Optional Wall Switch Kit 1265WSK Connector Yellow GV60 Wiring Diagram... -
Page 28: Venting Accessories
Venting Accessories APPROVED DIRECT VENT SUPPLIERS FOR VALOR MODELS 739 & RF24DV Venting Parts Code / availability by Manufacturer Venting Parts Description Standard Co-axial 46DVA-VC 4DT-VC TM-4VT — HSDV4658-1313 — High Wind Co-axial 46DVA-VCH — — SV4CGV — — Extended Co-axial 46DVA-VCE —... -
Page 29: Warranty
Warranty If you have a problem with this unit, please contact your dealer or supplier immediately. Under no circumstances should you attempt to service the unit in any way by yourself. The warranties in paragraphs 1 and 2 are provided only to the first purchaser/user of this unit, are not transferable and are subject to the conditions and limitations in paragraphs 3, 4 and 5. -
Page 30: Spare Parts
Spare Parts Part Part Code Description Code Description Number Number Exhaust Slide Assembly 4001133 Module Gasket—Left 4000181 Exhaust Slide Gasket 4000176 Olive Nut for Pilot Pipe 220K913 Fan Closure Plate 4001136 Pipe—Valve to Pilot 4001838 Port Cover 4001820AH Thermal Switch Retainer 4001519 Log Support 4001841... - Page 31 Spare Parts 12 13...
- Page 33 Thank You ... For purchasing a Valor by Miles Industries. Your new radiant gas heater is a technical appliance that must be installed by a qualified dealer. Please circle where appropriate - ask your installer or your dealer if in doubt. The information provided will be used for customer records only.
- Page 34 Fold here Postage needed Miles Industries Ltd. 190 - 2255 Dollarton Highway North Vancouver, BC V7H 3B1 Canada Online Warranty registration at www.valorfireplaces.com Were you given all documentation and manuals for your product? Thank you for choosing a Valor Product...
