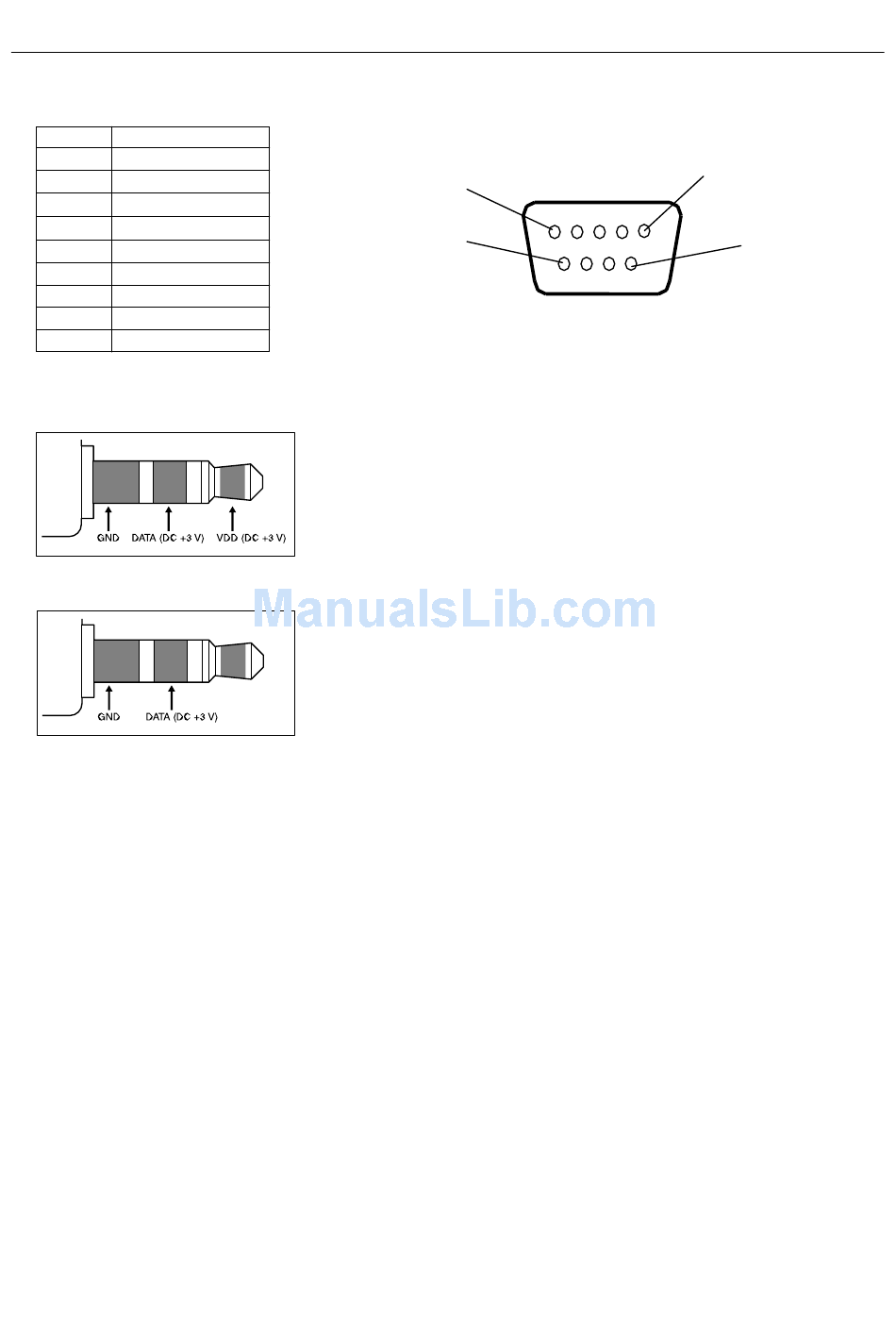

Pin Assignment

1) RS-232C input/output
Pin No
Name
1
connected to 7&8
2
RXD
3
TXD
4
connected to 6
5
GND
6
connected to 4
7
connected to 1&8
8
connected to 1&7
9
NC
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
2) REMOTE IN
3) REMOTE OUT
D-SUB 9P
1
6
English-40
5
9
