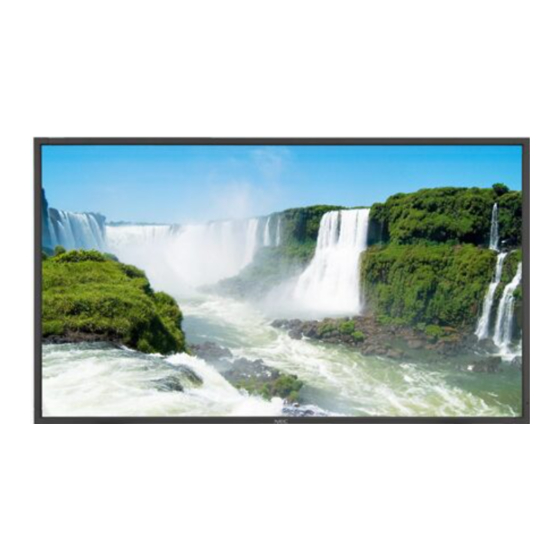

NEC MultiSync P401 Installation Manual

40” lcd display
Hide thumbs

Advertisement

P401 Installation Guide
40" LCD Display
Contents:
Product Description and Notes
Tilt Angle and Rotation
Ventilation Requirements
Display Dimensions
Front, Top & Right Side
Rear & Bottom
Display Dimensions w/Optional Speakers and Stand
Optional Table Top Stand Dimensions
Optional Speaker Dimensions
Dimensions with Optional Wall Mount
Control Codes

Product Description

Type:
Resolution:
Aspect Ratio:
FCC:
Power Consumption:
Notes
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to
be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally to
fill the screen using the menus (see "Aspect Modes" in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.
Tilt Angle and Rotation
Below are the maximum angles that the monitor can be tilted in the landscape position only.
Landscape 20deg
Max. 20 deg
www.necdisplay.com
LCD Display
1920 x 1080
16:9
Class B
330W (max)
NEC Display Solutions of America, Inc.
Page 1
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Screen Surface: Anti-Reflective
Dimensions:
Weight:
BTU's:
36.2"(W) x 21.0"(H) x 5.5"(D)
920mm(W) x 532mm(H) x 140mm(D)
52.9 lbs / 24.0 kg
1126 BTU/hour
P401
Page 1 of 9
Rev 1.0

Advertisement

loading

  Related Manuals for NEC MultiSync P401

  Summary of Contents for NEC MultiSync P401

  • Page 1: Product Description

    Tilt Angle and Rotation Below are the maximum angles that the monitor can be tilted in the landscape position only. Landscape 20deg Max. 20 deg www.necdisplay.com NEC Display Solutions of America, Inc. Page 1 Page 1 Page 2 Page 3...
  • Page 2 NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.
  • Page 3: Display Dimensions

    NEC Display Solutions of America, Inc. P401 Installation Guide 40” LCD Display Rev 1.0 Display dimensions (PANEL DISPLAY AREA) Ambient Sensor IR Receiver www.necdisplay.com P401 Page 3 of 9...
  • Page 4 NEC Display Solutions of America, Inc. P401 Installation Guide 40” LCD Display Rev 1.0 Display dimensions (cont.) 300mm MOUNTING HOLE PATTERN for MOUNT UNIT (4-M6 Depth 12mm) Power Switch AC Inlet www.necdisplay.com P401 Page 4 of 9...
  • Page 5 NEC Display Solutions of America, Inc. P401 Installation Guide 40” LCD Display Rev 1.0 Dimensions with optional speakers and stand www.necdisplay.com P401 Page 5 of 9...
  • Page 6 P401 Installation Guide 40” LCD Display Optional Table Top Stand Dimensions (ST-4020) 3.52 4.94 www.necdisplay.com 3.48 0.83 0.69 13.00 NEC Display Solutions of America, Inc. Table Top Stand ST-4020 0.83 P401 Rev 1.0 Page 6 of 9...
  • Page 7: Optional Speakers

    P401 Installation Guide 40” LCD Display Optional Speaker Dimensions (SP-P4046) www.necdisplay.com NEC Display Solutions of America, Inc. Optional Speakers SP-P4046 Rev 1.0 Input Terminal P401 Page 7 of 9...
  • Page 8 NEC Display Solutions of America, Inc. P401 Installation Guide 40” LCD Display Rev 1.0 Dimensions with Optional Wall Mount Kit (WMK3260-L) www.necdisplay.com P401 Page 8 of 9...
  • Page 9: Control Codes

    SCREEN MODE: NORMAL FULL WIDE ZOOM AUTO SETUP EXECUTE FILM MODE AUTO NOTE: Contact your NEC rep for codes not listed. NOTE: Use a cross/reverse/null modem cable. Cable Connection Communication Protocol: Interface: RS-232C Communication: Asynchronous Baud Rate: 9600 bps Data Length:...
