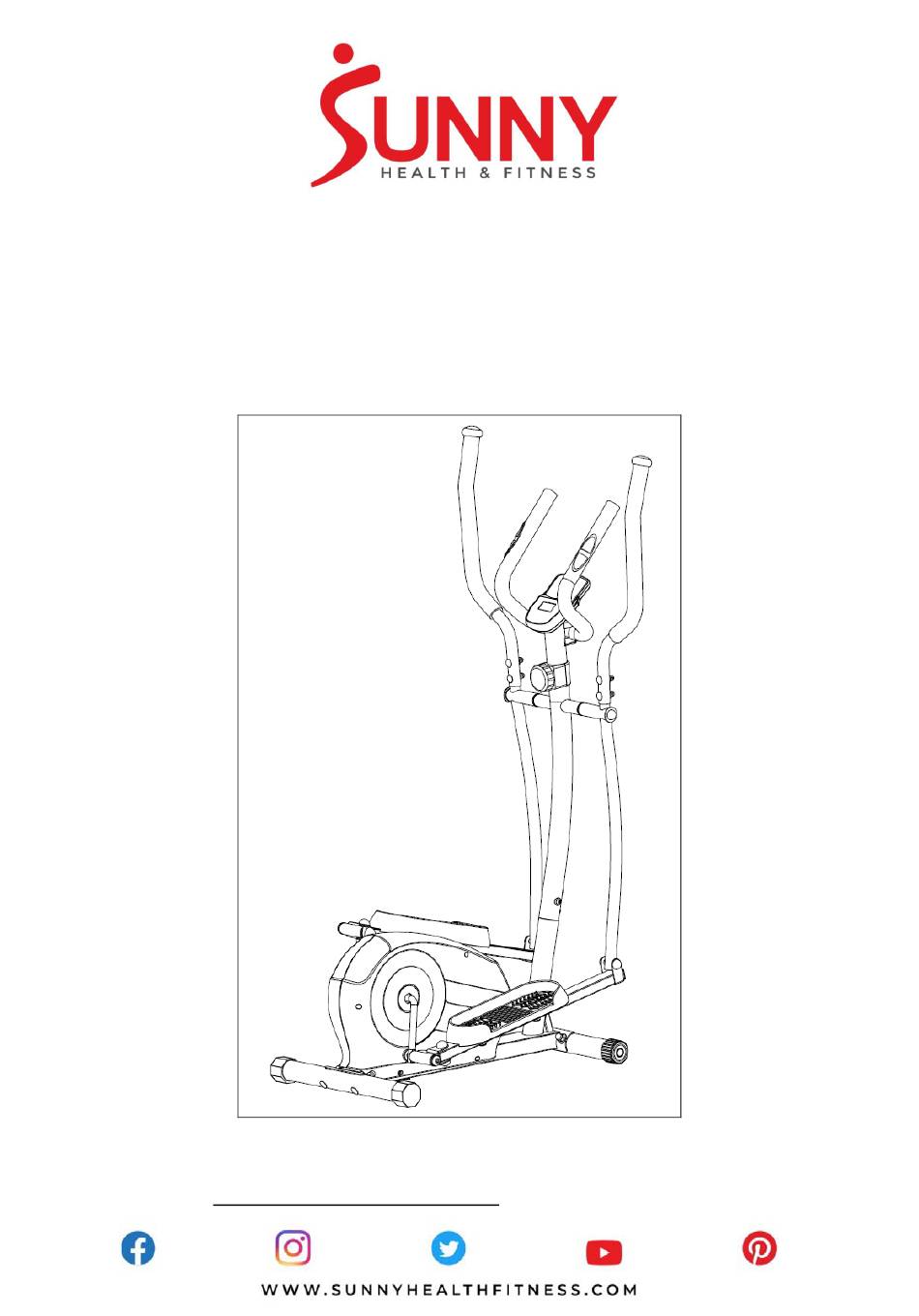

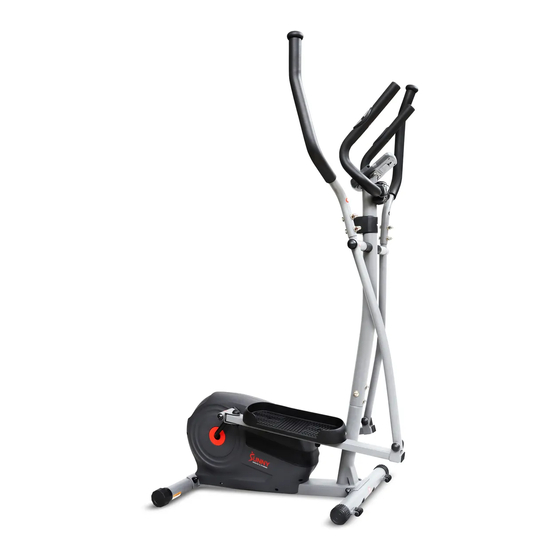

ESSENTIAL INTERACTIVE
SERIES ELLIPTICAL
SF-E322902
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-E322902 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny SF-E322902

Summary of Contents for Sunny SF-E322902

  • Page 1 ESSENTIAL INTERACTIVE SERIES ELLIPTICAL SF-E322902 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST .Before you start to assemble, please make sure all parts are included.
  • Page 4 Description Spec. Qty. Description Spec. Qty. Main Frame Armrest Front Stabilizer 32L/R Handlebar 1pr. Rear Stabilizer Meter Manual Handlebar Post Thank You Card 18L/R Pedal Support Tube 1pr. 24L/R Swing Bar 1pr. Hardware Package 27L/R Pedal 1pr. Battery...

  • Page 5: Hardware Package

    HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed:  The model number (found on cover of manual)  The product name (found on cover of manual) ...

  • Page 6: Assembly Instruction

    ASSEMBLY INSTRUCTION We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Remove 2 Paper Tubes (No. A) from the Main Frame (No. 1).
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: A: Remove the preassembled 2 Wave Washers (No. 63), 2 Hex Bolts (No. 25) and 2 Flat Washers (No.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Secure the 2 Pedals (No. 27L/R) to the 2 Pedal Support Tubes (No. 18L/R) respectively using 4 Hex Bolts (No.
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: A: Attach Armrest (No. 31) to the Handlebar Post (No. 9) in place. Secure it with 2 Spring Washers (No.
  • Page 10 ADJUSTMENTS & USAGE GUIDE 1. If you find there is no difference between tension level 1 to level 8, please check the connection of the tension cable. Please see Diagram A under Step 2. 2. If the meter does not show numbers correctly, please check the batteries. If the meter does not count the speed and time, please check the connections of Upper Sensor Wire (No.
  • Page 11 6. If you still hear noises after you did Step 4 and Step 5, please remove the Belt Cover (No. 65L/R). Loosen the screws for the Flywheel (No. 94) about a half of a rotation. See the following diagram below. 7.

  • Page 12: Adjustment Guide

    ADJUSTMENT GUIDE ADJUSTING THE LEVEL If at any point the elliptical does not feel level, you can adjust the Leveler Caps (No. 5). ADJUSTING THE TENSION Adjust the tension by rotating the Tension Controller (No. 10a) clockwise increase the level of resistance. Rotate Tension Controller (No.

  • Page 13: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT Battery Battery Cover BATTERY INSTALLATION 1. Take out 2 AAA batteries from computer box. 2. Press the buckle of battery cover on the Meter (No. 108), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Meter (No. 108). Pay attention to the battery + and –...
  • Page 14 EXERCISE METER 1. KEY FUNCTION  This key lets you select and lock on to a particular function you want. SCAN→TIME→SPEED(SPD)→DISTANCE(DIST) →CALORIES(CAL)→TOTAL DIST(ODO) →RPM →PULSE  Pressing and hold for 3 seconds to reset the value to zero(without ODO). 2. SLEEP MODE ...

  • Page 15: App Connection

    APP CONNECTION: 1. Scan the QR code below to download the SunnyFit app onto your mobile device. 2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. 3.

  • Page 16: Exploded Diagram

    EXPLODED DIAGRAM 1 EXPLODED DIAGRAM 2...

  • Page 17: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Nylon Nut Front Stabilizer Nut Cap Rear Stabilizer Nut Cap Φ32×59 End Cap Spacer Leveler Cap Axle Bushing 2 Φ17.1×Φ23×0.3 Carriage Bolt M10×L57 Wave Washer Φ10×1.5×Φ25×R28 Arc Washer Phillips Screw M5x10 Φ20×Φ28×0.6 Domed Nut...
