Flexible Arm Installation - NEC MultiSync LCD2070WNX User Manual

Flexible Arm Installation

This LCD monitor is designed for use with a flexible arm. To mount the monitor to
a flexible arm:
. Follow the instructions on how to Remove Monitor Stand for Mounting to
remove the stand.
2. Using the 4 screws from the stand removal and attach the arm to the monitor
(Figure F.1).
NOTE: The LCD monitor should only be used with an approved arm (e.g. GS mark).
To meet the safety requirements, the monitor must be mounted to an arm which
guaranties the necessary stability under consideration of the weight of the monitor.

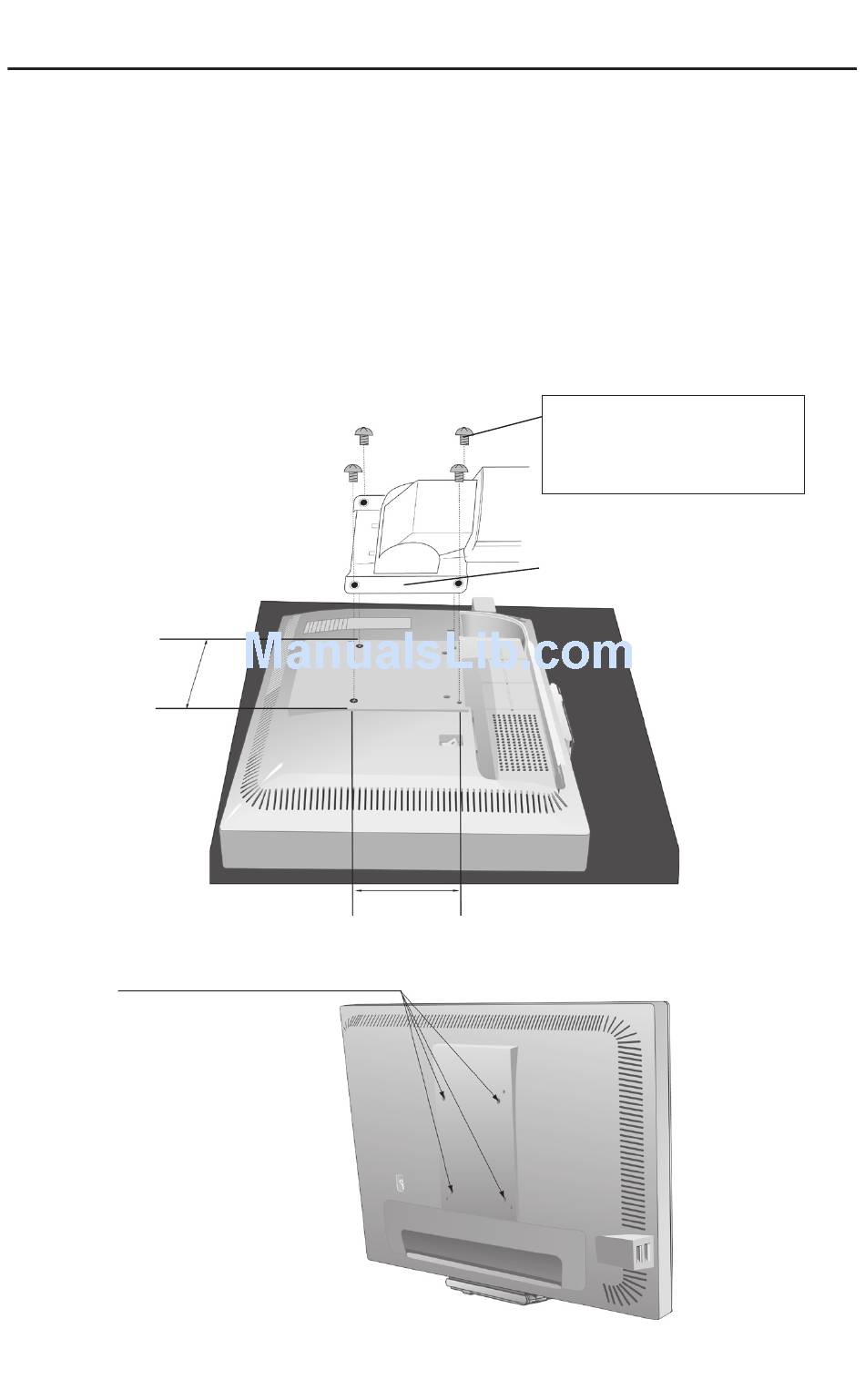

Figure F.1
00mm
4 Screws (4M)
(Max Depth: 8 mm)
00mm
9
NOTE: Please use the screws
(4pcs) that were removed from
stand when mounting flexible
arm.
Thickness of Bracket (Arm)
2.0~3.2mm
Weight of LCD assembly:
5.7 kg MAX
