Grizzly T32838 Instructions Manual

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T32838 Bandsaw Sled (see Figure 1)
fits vertical wood-cutting bandsaws with tables
between 12 ⁄ "–18 ⁄ " long, and allows you to pro-
7 1
8 2
cess logs when used with one of the accessories
listed on Page 5.

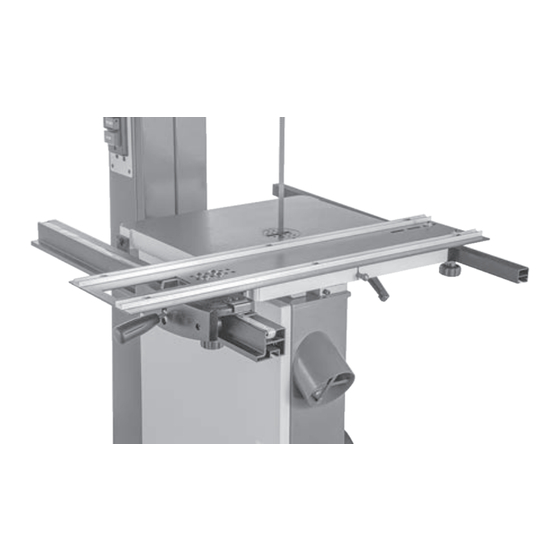

Figure 1. Example of Model T32838 installed on
bandsaw.
Inventory
Description (Figure 2)
A. Sled Assembly ............................................ 1
B. Rear Rail Mounting Brackets ...................... 2
C. Front Rail Mounting Brackets ..................... 2
D. Hex Wrenches 3, 4mm .........................1 Ea.
E. Hex Bolts M6-1 x 16 ................................... 4
F.
Hex Bolts ⁄ "-20 x
1
4
G. Flat Washers
⁄ " ......................................... 4
1
4
H. Square Nuts
⁄ "-18 .................................... 4
5
16
I.
Open-End Wrench 10mm ........................... 1
J.
Rear Rail .................................................... 1
K. Scale .......................................................... 1
L. Front Rail .................................................... 1
M. Pointer ........................................................ 1
N. Button Head Cap Screws M5-.8 x 10 ......... 2
O. Knob Bolts ⁄ "-18 x
5
16
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄ " ................................. 4
5
8
⁄ " .............................. 4
5
8
COPYRIGHT © NOVEMBER, 2021 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 11/21) #CS22151 PRINTED IN TAIWAN
MODEL T32838
BANDSAW SLED
A
D
F
H
J
K
Qty
L
If you cannot find item on list, check around/
inside packaging materials. Often, items
get lost in packaging while unpacking or
they are pre-installed at factory.
INSTRUCTIONS
B
E
G
N
Figure 2. T32838 inventory.
NOTICE
C
I
M
O
V1.11.21
