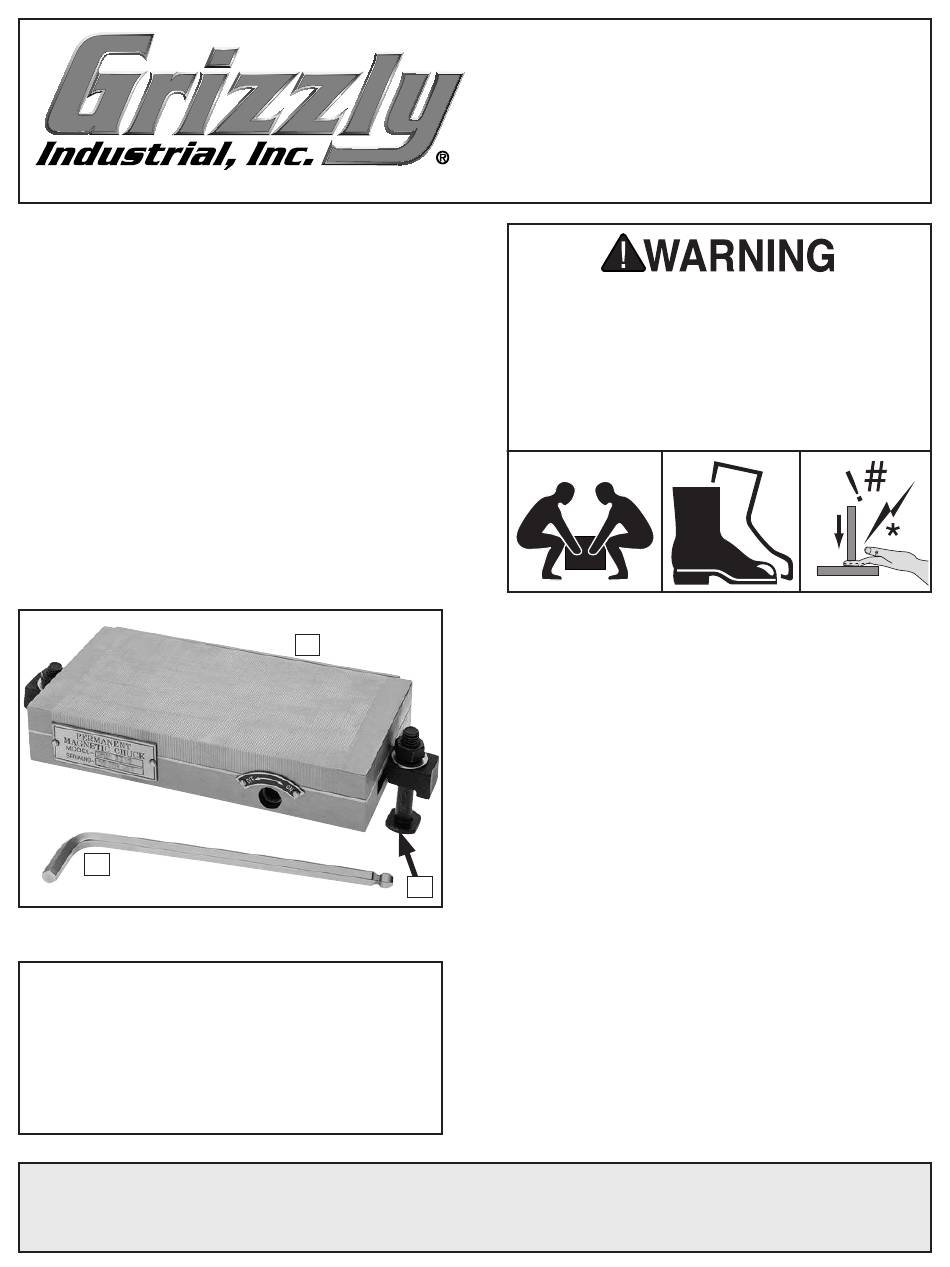

Introduction

The T1227-29 Magnetic Chucks are designed to
safely secure flat ferrous metal workpieces to the
work table for grinding operations. The ON/OFF
function of this chuck allows for easy adjustment
of a workpiece.

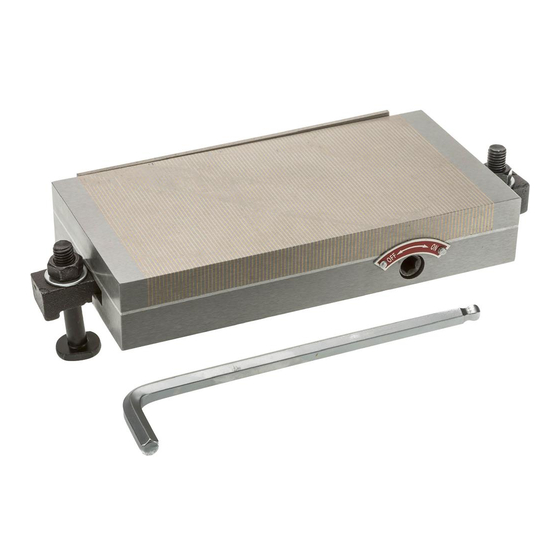

Inventory
Description
A. Magnetic Chuck .......................................... 1
B. Hex Wrench 8mm ....................................... 1
C. Step Clamp Hold-Down Assemblies .......... 2
—T-Slot Bolts M12-1.75 x 70....................... 2
—Hex Nuts M12-1.75 .................................. 2
—Flat Washers 12mm ................................ 2
B
Figure 1. Models T1227-29 inventory.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
A
COPYRIGHT © OCTOBER, 2017 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 9/17) #JH19252 PRINTED IN CHINA
MODEL T1227/T1228/T1229
MAGNETIC CHUCK
Magnetic chucks are heavy! Get assistance
if needed when installing or removing the
magnetic chuck from the surface grinder.
Wear heavy-duty leather boots for foot and
toe protection, and keep hands and fingers
away from all pinch points. Ignoring this
warning can lead to crushing injuries.
Qty

Magnetic Chuck Safety

1. STRONG MAGNETIC FIELD: A magnetic
chuck generates a powerful magnetic field.
Keep all objects sensitive to magnetic fields
(watches, cellular phones, magnetic cards,
etc.) away from the magnetic chuck to pre-
vent damaging them.
2. PINCHING/CRUSHING INJURY: A magnetic
chuck generates significant clamping power.
When a magnetic object is moved near a
C
chuck that is turned ON, it will be attracted.
Any body parts caught between the object
and chuck will be pinched or crushed by the
magnetic force. Turn magnetic chuck OFF
any time it is not in operation.
3. WORKPIECE EJECTION: The workpiece
could be ejected during operation, causing it
to hit the operator with deadly force. Never
stand directly behind the workpiece (in the
direction of spark travel).
INSTRUCTIONS
V1.10.17
