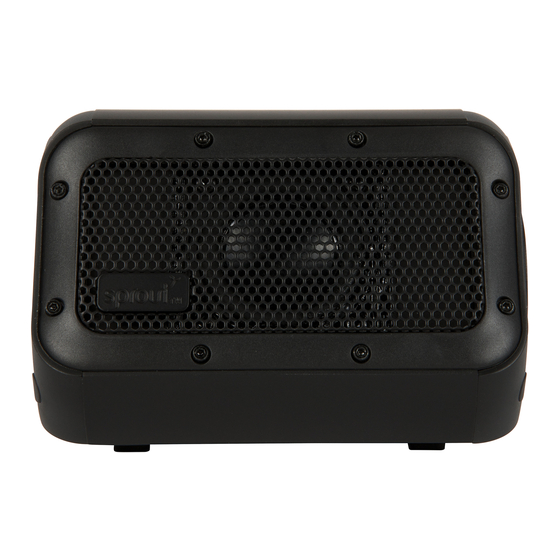

- Page 1 INSTRUCTION MANUAL Nomad Trek+ Bluetooth Speaker...
- Page 2 Sprout is an Australian brand that develops technology accessories to enhance your world, now and into the future. From maximising your productivity at work and while you study to enriching your downtime and recreational activities, we develop accessories that add value to your way of life.
-
Page 3: Table Of Contents
CONTENT 01. PRODUCT OVERVIEW 02. WHAT’S IN THE BOX? 03. QUICK START GUIDE 04. OPERATING CONTROLS 05. SPECIFICATIONS 06. PRODUCT USE AND CARE 07. IMPORTANT SAFETY INFO 08. CONSUMER GUARANTEE Scan the QR code to access an online version of this manual... -
Page 4: Product Overview
Product Overview Protective screw cap Aux in USB-C input Microphone Power/Bluetooth button (plus play, pause and answer functions) Power/Bluetooth indicator Battery level indicator Volume control (plus skip forward/back function) UNISYNC button ®... - Page 5 Product Overview...
-
Page 6: What's In The Box
What’s in the Box? Thank you for choosing Sprout’s Nomad Trek+ Bluetooth Speaker. For optimum performance and safety, please read instructions carefully before usage. Please keep this manual for future reference. Nomad Trek+ Bluetooth Speaker USB Type-A to USB Type-C charging cable... -
Page 7: Quick Start Guide
Quick Start Guide Charging Your Nomad Trek+: 1. Connect the USB Type-C cable into the ‘USB-C input’ and connect the USB-A end of cable into a power source*. 2. The battery LED indicator will flash from one to four LEDs to indicate Nomad Trek+ is charging. The lights will stop flashing once Nomad Trek+ is fully charged**. - Page 8 Quick Start Guide Turning on and connecting to your Nomad Trek+ Speaker: You can play music through your Nomad Trek+ Speaker using Bluetooth or an Auxiliary Cable. Method 1: Connecting via Bluetooth 1. From the off position, press the power button for approximately three seconds.
- Page 9 Quick Start Guide Method 2: Connecting via Auxiliary Cable To play music using the auxiliary cable, connect the cable with your device or mobile phone. Nomad Trek+ will play the music when you press ‘play’ on your device.
-
Page 10: Operating Controls
Operating Controls The following controls will assist in the operation of the Nomad Trek+ Speaker: Play/Pause/Answer Phone Calls Once your device is connected to the Nomad Trek+, you can press the Power/Bluetooth button once to: • Pause and play music •... - Page 11 Operating Controls Connecting Multiple Devices via UNISYNC ® Using the UNISYNC feature you can connect up to ® 50 UNISYNC -compatible devices. In this example, ® your Nomad Trek+ is your primary device. To connect a replica, short press the UNISYNC ®...
-
Page 12: Specifications
Specifications • Unit Size/Weight: 110 x 81.50 x 73.50 mm (L x W x H) • Output Power: RMS 8W • S/N Ratio: 85db +/- 3db • Frequency Range: 90Hz - 20 kHz • Power Source: 3.7V, 1500mAh Lithium Battery •... -
Page 14: Product Use And Care
Product Use and Care Nomad Trek+ Bluetooth speaker is intended to be used both indoors and outdoors. The speaker has been tested to IP67 waterproofing and dustproofing standards. IP67 standard allows Nomad Trek+ to be submerged in water up to 1 metre for 30 minutes without any damage. - Page 15 Product Use and Care If you notice a muffling of audio after submersion, gently shake Nomad Trek+ to clear excess water. If your speaker is exposed to salt water clean it thoroughly after use with fresh water. Do not apply excessive force to any surfaces of Nomad when wet or in a wet environment.
-
Page 16: Important Safety Info
Important Safety Info Do not attempt to charge Nomad Trek+ when it is wet or you suspect water has seeped into the device. Thoroughly dry Nomad Trek+ and make sure all connections are dry before attempting to open the protective screw cap or connect a USB cable or power source. -
Page 17: Consumer Guarantee
Consumer Guarantee Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. - Page 18 If you have any problems while using the product, please do not hesitate to contact our customer support team. For warranty and technical support please visit sproutinc.com.au or contact us: 275 George Street, Brisbane QLD 4000 sproutenquiries@sproutinc.com.au Thank you for choosing a Sprout product.
- Page 20 Sprout Accessories Pty Ltd W: Sproutinc.com.au E: sproutenquiries@sproutinc.com.au...
