SPROUT Nomad Trek+ - Bluetooth Speaker Manual

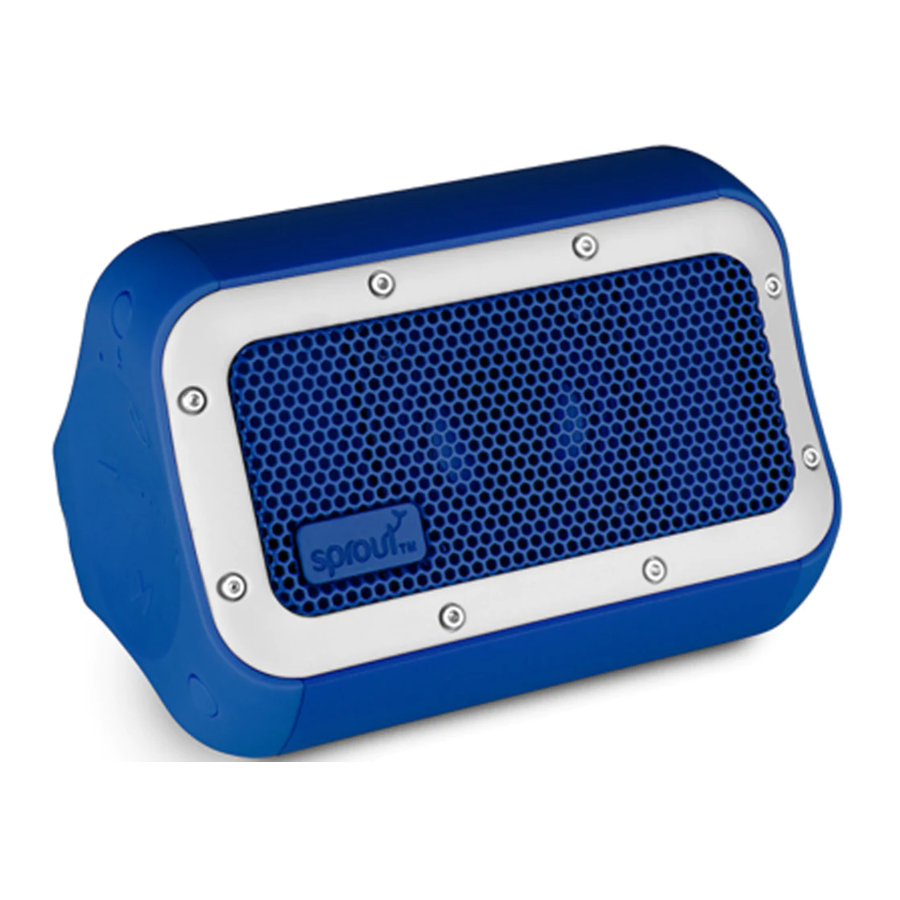

Product Overview

1. Protective screw cap
2. Aux in
3. USB-C input
4. Microphone
5. Power/Bluetooth button (plus play, pause and answer functions)
6. Power/Bluetooth indicator
7. Battery level indicator
8. Volume control (plus skip forward/back function)
9. UNISYNC^® button

What's in the Box?

For optimum performance and safety, please read instructions carefully before usage.

Please keep this manual for future reference.

1x Nomad Trek+ Bluetooth Speaker
1x USB Type-A to USB Type-C charging cable
1x AUX cable
1x Lanyard
1x Product manual

Quick Start Guide

Charging Your Nomad Trek+

1. Connect the USB Type-C cable into the 'USB-C input' and connect the USB-A end of cable into a power source*.
2. The battery LED indicator will flash from one to four LEDs to indicate Nomad Trek+ is charging. The lights will stop flashing once Nomad Trek+ is fully charged**.

4 white lights on:
Battery 100%

3 white lights on:
Battery 75%

2 white lights on:
Battery 50%

1 white light on:
Battery requires recharge

The speaker will announce "Low Battery" when the battery level reaches 10%.

The speaker will announce "Low Battery" when the battery level reaches 10%.

*Power source options include USB connection to an AC power adapter, a car charger or computer/ notebook USB connection.
**Full charge will take approximately 1.5 hours.

Turning on and connecting to your Nomad Trek+ Speaker

You can play music through your Nomad Trek+ Speaker using Bluetooth or an Auxiliary Cable.

Method 1: Connecting via Bluetooth

1. From the off position, press the power button for approximately three seconds. The power/Bluetooth indicator will flash blue and red to indicate the Nomad Trek+ is ready for pairing*.
2. Turn on Bluetooth on your mobile phone/music device**.
3. 'Nomad Trek+' will appear on your mobile phone/music device. Select 'Nomad Trek+' to pair.
4. Once your mobile phone/music device is connected to the Nomad Trek+, you will hear 'Bluetooth connected'***.
5. Enjoy your music

*If the single LED is not flashing red and blue, hold the UNISYNC button for 5 seconds to initiate Bluetooth pairing.
**If you are not familiar with Bluetooth pairing for your mobile phone or music device, refer to the user guide for your mobile phone/music device for instructions to pair a new device using Bluetooth. ***Nomad Trek+ will always store the last device paired and if the device is within Bluetooth range,

Nomad Trek+ will automatically connect to the device.

Method 2: Connecting via Auxiliary Cable

To play music using the auxiliary cable, connect the cable with your device or mobile phone. Nomad Trek+ will play the music when you press 'play' on your device.

Operating Controls

The following controls will assist in the operation of the Nomad Trek+ Speaker:

Play/Pause/Answer Phone Calls

Once your device is connected to the Nomad Trek+, you can press the Power/Bluetooth button once to:

• Pause and play music
• Answer phone calls

Volume Control

Short press the +/- volume control buttons to increase and decrease music and phone call volume.

Skip music tracks

Long press the volume control buttons to skip music tracks:

• Long press '+' button to skip to next song
• Long Press '-' button to skip to previous song

Connecting Multiple Devices via UNISYNC^®

Using the UNISYNC^® feature you can connect up to 50 UNISYNC^®-compatible devices. In this example, your Nomad Trek+ is your primary device.

To connect a replica, short press the UNISYNC^® button on your primary device once to enter UNISYNC^® Mode. Once the primary announces it is in UNISYNC^® Mode, repeat on the replica.

After the replica announces it is in UNISYNC^® Mode, press the UNISYNC^® button – the replica will announce it is using UNISYNC^® Audio. The primary speaker will show a solid blue light while replicas will show a flashing red and blue light.

Press UNISYNC^® button again to disable UNISYNC^®.* Press and hold the UNISYNC^® button for five seconds to reset the UNISYNC^® function.**

*If UNISYNC^® is disabled, Nomad Trek+ will disconnect from but remember the replicas connected to it.
**Resetting UNISYNC^® will enable Nomad Trek+ to 'forget' all replica devices.

Specifications

• Unit Size/Weight: 110 x 81.50 x 73.50 mm (L x W x H)
• Output Power: RMS 8W
• S/N Ratio: 85db +/- 3db
• Frequency Range: 90Hz - 20 kHz
• Power Source: 3.7V, 1500mAh Lithium Battery
• Playtime: 5hours from full charge at 75% volume level
• Charging Time: Approximately 1.5 hours
• Function: Bluetooth/UNISYNC/Aux-in/Microphone
• Bluetooth: BT 5.1 Version
• Operating Temperature: 0-40°C
• Dust/Waterproof IP Code: IP67

Product Use and Care

Nomad Trek+ Bluetooth speaker is intended to be used both indoors and outdoors. The speaker has been tested to IP67 waterproofing and dustproofing standards. IP67 standard allows Nomad Trek+ to be submerged in water up to 1 metre for 30 minutes without any damage. However, Nomad Trek+ is not intended for constant underwater use.

Please ensure that the protective screw cap is properly closed before use. The speaker will only meet IP67 ratings if all rubber seals and cap are properly locked and sealed. If Nomad Trek+ is placed in water without the protective screw cap securely closed, water may enter Nomad and void its warranty.

Always make sure the protective screw cap is clean, free of any debris and correctly fitted.

Included cables are not waterproof.

The speaker will only meet IP67 ratings if all rubber seals and cap are properly locked and sealed.

If you notice a muffling of audio after submersion, gently shake Nomad Trek+ to clear excess water. If your speaker is exposed to salt water clean it thoroughly after use with fresh water. Do not apply excessive force to any surfaces of Nomad when wet or in a wet environment.

Avoid prolonged exposure to ultraviolet radiation (UV) sunlight or magnetic fields.

Check the rubber seal periodically for premature wear and clean Nomad Trek+ with a soft moist cloth and ensure no objects such as dirt, hair or sand are on the rubber seal ring. Do not use any oily solvent or chemicals for cleaning.

Important Safety Info

Do not attempt to charge Nomad Trek+ when it is wet or you suspect water has seeped into the device. Thoroughly dry Nomad Trek+ and make sure all connections are dry before attempting to open the protective screw cap or connect a USB cable or power source. Failure to do so may result in electrical shock, fire or electrical damage to the Nomad Trek+ and may void the warranty.

Do not use the Nomad Trek+ when you are charging the battery. Do not use the Nomad Trek+ near an open fire, heat source or excessive heat.

Do not open to modify, repair or remove any original component of Nomad Trek+. A qualified technician must carry out repair work. Do not remove the builtin battery or the grill cover. Doing so could cause damage to Nomad Trek+ and allow water to enter.

Sound levels should be appropriate to your environment and comply with all local regulations. Ensure that you can hear and are aware of any potential hazards around you when you are enjoying your Nomad Trek+.

Consumer Guarantee

For warranty and technical support please visit sproutinc.com.au or contact us:
275 George Street, Brisbane QLD 4000
sproutenquiries@sproutinc.com.au
