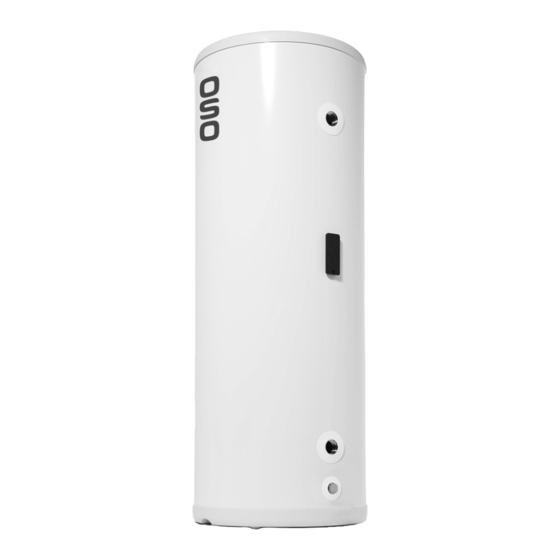

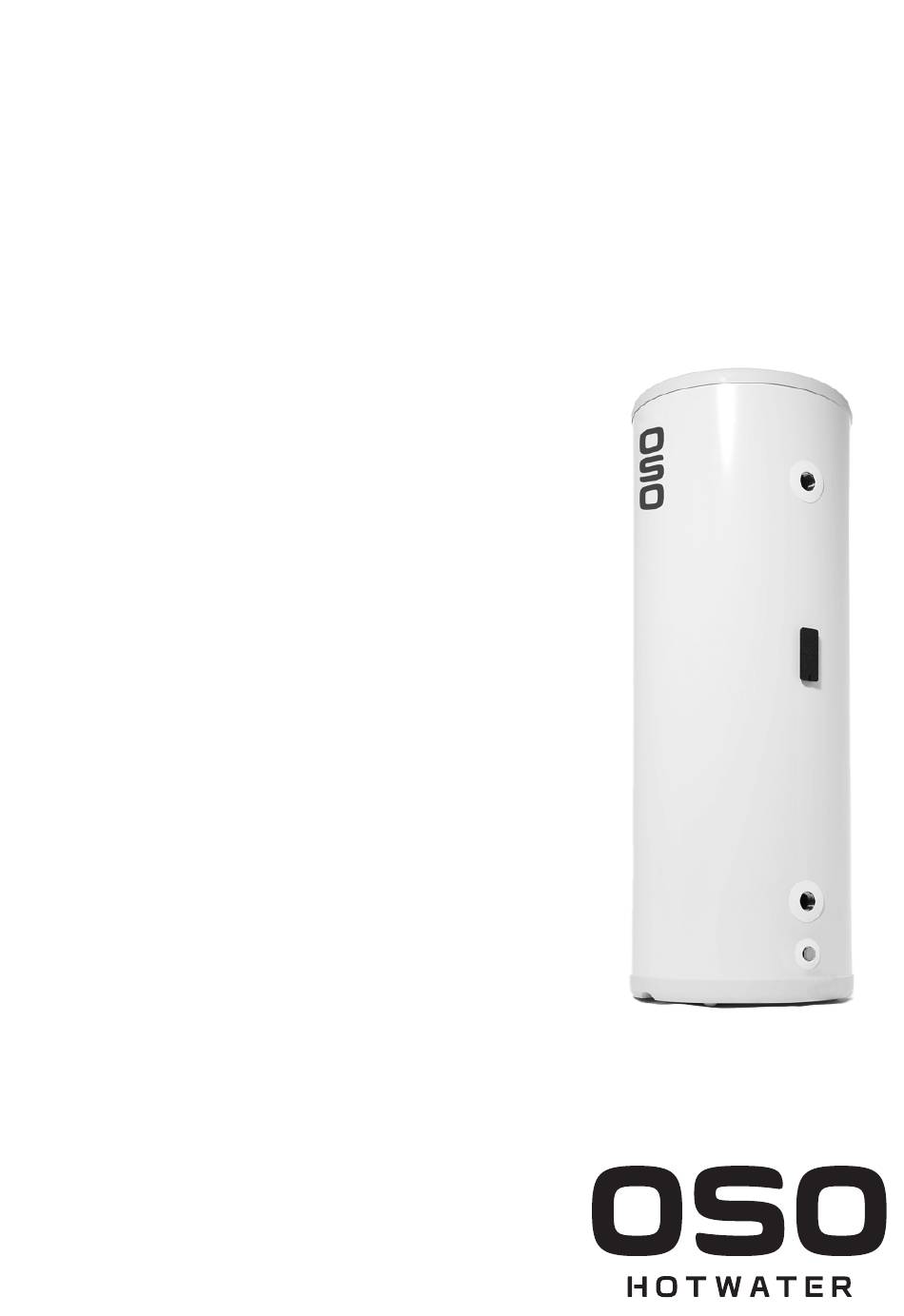

- Page 1 Accu - A 60-100-200 l. SAFETY INFORMATION O&M INFORMATION INSTALLATION MANUAL TDS - TECHNICAL DATA SHEET Manufactured by OSO Hotwater AS Industriveien 1 - 3300 Hokksund - Norway Tel: +47 32 25 00 00 / E-mail: oso@oso.no www.osohotwater.com 11002350-146198-07 - 01-2023...
-
Page 2: Table Of Contents
CONTENTS 1. Safety instructions ............ 3 General information......... 3 1.2 Safety instructions for users ......4 1.3 Safety instructions for installers ....4 2. Product description ..........5 2.1. Product identification ........5 2.2. Intended use ............5 2.3 CE marking ............5 2.4 Technical data ............. -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1 General information • Read the following safety instructions carefully before installing, maintaining or adjusting the buffer tank. • Personal injury or material damage may result if the product is not installed or used in the intended manner. •... -
Page 4: Safety Instructions For Users
1.2 Safety instructions for users WARNINGS The appliance may be used by children older than 8 years old, elderly persons and persons with physical, sensory or mental disabilities or lacking experience and knowledge, if they are under supervision or taught about safe use of the appliance and if they are aware of the potential dangers. -
Page 5: Product Description
°C loss W volume L 8000483 ACCU - A60 OSO Hotwater AS 8000484 ACCU - A100 OSO Hotwater AS 8000487 ACCU - A200 OSO Hotwater AS Regulation: 2017/13/69/EU - Regulation: EU 812/2013 Directive: 2009/125/EF - Regulation: EU 814/2013... -
Page 6: Installation Instructions
3. INSTALLATION INSTRUCTIONS 3.1 Products covered by these instructions 8000483 Accu - A60 8000484 Accu - A100 8000487 Accu - A200 3.2 Included in delivery Ref no. Pcs. Description Buffer tank with sensor bracket Manual (this document) Stainless steel wall bracket included (not A200) 3.3 Product dimensions All dimensions in mm. -
Page 7: Requirements For Installation Location
3.4 Requirements for installation location and positioning CAUTION The product shall be placed in a room with a drain to prevent any damages in case of water escaping from the product.. The product shall be placed in a dry and permanently frost-free position. The product shall be placed on a floor or wall suitable for the total weight of the product when in operation. - Page 8 3.4.1 Temperature sensor installation The product is equipped with a temperature sensor bracket which allows installation of a 6 or 8 mm. temperature sensor. To install the temperature sensor follow the instructions below. Remove temperature sensor bracket (A) from tank body by gripping it and pulling straight out.
-
Page 9: Pipe Installation
3.5 Pipe installation The product is designed to be permanently con- nected to the heating system, max. pressure 3 bar / 0,3 MPa. Approved pipes of the correct size should be used for installation. The relevant standards and regulations must be followed. Dimension Connection description G 1/2”... -
Page 10: Initial Commissioning
4. INITIAL COMMISSIONING 4.1 Filling with water First check that all pipes are connected correctly. Then do the following: A) Vent the system, preferably at its highest point. B) Open water supply to the product. When water flows out of the vent the system is full. 4.2 Control points A) Check that all pipe connections to/from the product are tight and not leaking. -
Page 11: Warranty Conditions
5. WARRANTY CONDITIONS 1. Scope should not be aggressive, i.e. the water chemistry shall OSO Hotwater AS (hereinafter called OSO) warrants for 2 years comply with the following: from the date of purchase, that the Product will: i) conform to... - Page 12 OSO Hotwater AS Industriveien 1 3300 Hokksund - Norway Tel.: +47 32 25 00 00 oso@oso.no www.osohotwater.com © This installation manual and all its content is protected by copyright and may be reproduced or distributed only with written consent from the manufacturer.
