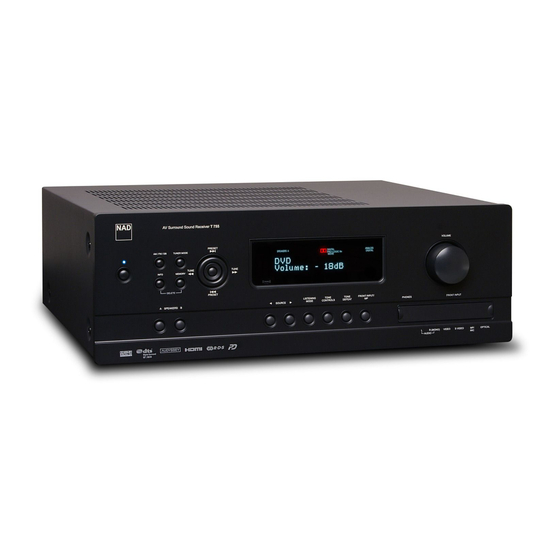

- Page 1 T 755 ® AV Surround Sound Receiver Owner’s Manual Manuel d’Installation Manual del Usuario Manuale delle Istruzioni...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read instructions - All the safety and operating instructions should be read before the product is operated. 2. Retain instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. - Page 3 NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited Copyright 2008, NAD Electronics International, a division of Lenbrook Industries Limited...
-
Page 4: Table Of Contents
Investing a little time here at the outset might save you a good deal of time later, and is by far the best way to ensure that you make the most of your investment in the NAD T 755, and get the most from this powerful and flexible home-theater component. -
Page 5: Introduction
ABOUT THE HTR 3 SYSTEM REMOTE CONTROL Packed with your T 755 is the NAD HTR 3 remote control, a full-system remote especially designed for easy use and understanding. Be sure to read the section “Using the HTR 3 Remote Control”, to familiarize yourself with... -
Page 6: Getting Started
It is especially important that sufficient ventilation be provided. If you are contemplating on locating the T 755 within a cabinet or other furniture, consult your NAD audio/video specialist for advice on providing adequate airflow. QUICK START Packed with your T 755 is a Quick Start Guide that will guide you through typical setup configurations in combination with your ancillary devices. -
Page 7: Identification Of Controls
1 POWER BUTTON: Press this button or the HTR 3 remote’s [ON] button to switch ON the T 755. The Standby LED indicator will turn from amber to blue and illuminate the VFD. Pressing the power button again turns the unit back to standby mode. The T 755 can also be switched ON from standby mode by pressing any of the front panel buttons. - Page 8 IDENTIFICATION OF CONTROLS FRONT PANEL 11 A SPEAKERS B: Press either speaker A or B or both to select the set of speakers you wish to listen to. Speaker A is the main set of 5 multichannel and surround speakers. Speaker B is an auxiliary set for remote locations such as other rooms of your home.
-
Page 9: Rear Panel
IR OUT 3 as described above. It can also stand alone as an IR OUT similar to that of IR OUT 2 function. All NAD products with IR IN/IR OUT features are fully compatible with the T 755. For non-NAD models, please check with your other product’s service specialists as to their compatibility to the T 755’s IR features. - Page 10 6 MP DOCK: The T 755 is equipped with a data port in the rear panel where an optional “NAD IPD 1 Dock with iPod” (NAD IPD 1) can be plugged in. Connect the “MP DOCK (DATA PORT)” jack of the T 755 to the corresponding “DATA PORT”...
- Page 11 14 AUDIO PRE-OUT: The Audio PRE- OUT makes it possible to use the T 755 as a pre-amplifier to external power amplifiers for some or all channels. Connect FRONT L, FRONT R, SURR R, SURR L, SURR-BL, SURR- BR and CENTER to the respective channel input of a power amplifier or an amplifier driving the corresponding applicable speakers.
-
Page 12: Operation
OPERATION USING THE T 755 – MAIN MENU ABOUT THE ON-SCREEN DISPLAY (OSD) The T 755 employs a simple, self-explanatory system of on-screen display “menus” that will appear on the connected video monitor/TV. These are required during the setup process (and are useful in day-to-day operation), so be sure to connect the monitor/TV before proceeding with setup. DISPLAY THE OSD Press either [ ] or [ENTER] buttons of the HTR 3 remote control or front panel to display the T 755’... - Page 13 - CINEMA and MUSIC. See also section about “ADJUSTING LISTENING MODES” below. EARS Two-channel recordings, whether stereo or surround-encoded, are reproduced with proprietary NAD surround processing with signals output to the front left/right, center and discrete left/right surround channels, plus subwoofer (assuming these are present in the current “Speaker Configuration”). EARS does not employ the surround back speakers (if any).
-
Page 14: Adjusting Listening Modes
OPERATION USING THE T 755 – MAIN MENU ADJUSTING LISTENING MODES Several of the T 755’s listening modes have one or more selectable variations and adjustable parameters that you can modify to suit your personal preferences. At Listening Mode menu, use a combination of the [ENTER] and [ ] keys to navigate and effect desired settings. -
Page 15: Zone Controls
OPERATION USING THE T 755 – MAIN MENU ZONE CONTROLS Depending on the settings made at the separate “Zone Setup” menu under the “Setup Menu” section discussion, Zone 2 can be configured and managed via this “Zone Controls” window. Select “On” to activate Zone 2. When activated, the Source input for Zone 2 can be allocated by selecting through the following inputs –... -
Page 16: Setup Menu
OPERATION USING THE T 755 –SETUP MENU SETUP MENU The Setup Menu allows one to customize the operation of the T 755 to the ancillary equipment used in one’ s specific AV system. Unless your system exactly matches the factory defaults as shown in the accompanying Quick Start Guide, you will need to use the setup menu to configure the inputs of the T 755. -
Page 17: Using The T 755 -Setup Menu
ANALOG AUDIO The T 755 has nine analog audio inputs including 7.1 input. These analog inputs - Audio 1, Audio 2, Audio 3, Audio 4, Audio 5, Audio 6, Audio Front, Audio MP and 7.1 Input can be variably assigned to each Source. -
Page 18: Source Setup (Table View)
OPERATION USING THE T 755 –SETUP MENU ABOUT VIDEO FORMATS For many years, there was only one type of video format used. Composite video signals include the Luminance (black & White) and Chroma (color) signals combined on one wire. S-Video uses separate wires in a single cable for Luminance and Chroma signals. Component Video goes a step further with separate cables for Luminance and the two elements of Chroma. -
Page 19: Ipod Setup
Enabled: Select “Yes” to enable iPod as a Source or “No” to disable it. Auto: Select “Yes” to automatically enable and connect the iPod player docked in the linked NAD iPod docking station when Source 5 (the default iPod source allocation in the T 755) is selected. -
Page 20: Speaker Configuration
OPERATION USING THE T 755 –SETUP MENU MEASUREMENT IS THE FIRST STEP Connect the Audyssey microphone jack into the front panel’s MP/MIC input and the Audyssey Setup wizard will guide you through a simple step-by-step configuration. The sound at your main listening position is setup using the supplied Audyssey microphone. A special test tone is sent to each speaker and the data is memorized by the T 755. - Page 21 Depending on the relationship between speakers, the possible selections for each speaker are as follows: Front L/R Center Surround L/R Large Large Small Large Large Small Small Large Small Small Small Small Small The Speaker Configuration is “global”; that is, it remains in force with all inputs and in all listening modes.
-
Page 22: Speaker Levels
Radio Shack part number 33-2050, makes this task easier, more accurate and more repeatable. Ownership of such a meter could prove a valuable audio tool. Your NAD audio specialist may be able to help you with temporary use of a meter. -
Page 23: Speaker Distance
To produce the same SPL meter reading (or subjective loudness), use the remote’s [ adjust each speaker. NOTES • All speakers must be in their final locations before level-setting. • Your subwoofer (if any) should be set with its integral crossover defeated, or if undefeatable, set to its highest-possible frequency if you are using the T 755's Subwoofer output. Final subwoofer-level adjustment “by-ear”, using music and film sound material, is frequently useful. • Due to the effects of room acoustics, matched-pair speakers (front; surround; back) will not always calibrate to exactly the same level offset readings. You can exit “Test” mode at any time by pressing the [ Setup” menu. SPEAKER DISTANCE Your system’s speaker distance settings are a subtle but important refinement of your setup. -
Page 24: Adjusting Channel Levels "On The Fly
OPERATION USING THE T 755 –SETUP MENU ADJUSTING CHANNEL LEVELS “ON THE FLY” You can make changes to the relative levels of center, surround and subwoofer outputs without having to go into the “Speaker Levels” menu. This is very convenient in circumstances like increasing (or tone down) a film’s dialog level by rising (lowering) the center channel or reducing excessive deep bass (or enhance deep bass) by lowering (rising) the subwoofer level. -
Page 25: Listening Mode Setup
DELAY The availability of +12V DC at Trigger OUT can be regulated. If it is desired that +12V DC is available without delay the moment Trigger OUT is linked to its assigned setting, set Delay to 0s. Otherwise, one can select through a delay time of 1s to 15s. AUTO TRIGGER IN Auto Trigger IN allows external system controllers to toggle the associated section of the T 755 from “Standby”... -
Page 26: Dolby Digital Ex
OPERATION USING THE T 755 –SETUP MENU DOLBY DIGITAL EX Using a Matrix decoder, this method creates the back channel (sometimes also called the “surround center”) by means of signals on the left and right surround channels recorded in Dolby Digital 5.1, reproduction being provided in Surround 6.1. This method should be selected with sources bearing the (double-D symbol)-EX, recorded in Dolby Digital Surround EX. -
Page 27: Dolby Setup
DOLBY SETUP Under this menu, the Dolby Digital’s Dynamic Range Control can be adjusted as well as the settings for Dolby Digital Pro Logic IIx Music. Dynamic Range Control: You can select the effective dynamic range (subjective range from soft to loud) for playback of Dolby Digital soundtracks. -
Page 28: Enhanced Stereo
OPERATION USING THE T 755 –SETUP MENU DTS - ES™ MATRIX 6.1 In this format, the additional signals of the back channel receive a matrix encoding and are inputted into the right and left surround channels. During reproduction they are decoded to the right, left and back surround channels. Since this bit-stream format is 100% compatible with conventional DTS signals, the DTS-ES Matrix 6.1 format effect can also be achieved from sources with DTS-ES 5.1 signals. -
Page 29: A/V Presets
A/V PRESETS The T 755’s simple but powerfully flexible system of “Presets” allows you to customize virtually every aspect of your audio-video playback, and recall them with a single key-press. The parameters “Listening Mode”, “DSP Options” and “Tone Controls” accessible via the “Main Menu” together with “Speaker Setup” and “Display Setup”... -
Page 30: Using The T 755 - Am/Fm/Db/Ipod
OPERATION USING THE T 755 – AM/FM/DB/iPod LISTENING TO RADIO The T 755’s internal AM/FM tuner offers very high quality sound from radio broadcasts. The reception and sound quality will always be dependent to a degree however on the type of antenna(s) used as well as proximity to the broadcast origin, geography and weather conditions. -
Page 31: About Rds
The T 755 has a Digital Audio Broadcast (DAB) module socket on the rear panel for adding a separately sold and NAD-specified outboard DAB module – the NAD DAB Adaptor DB 1. All the control software for this format is included; just plug-in the module and start enjoying the CD-like quality sound and expansive content selection available with DAB. -
Page 32: Dab Operation
USING THE T 755 – AM/FM/DB/iPod DAB OPERATION With the separately sold NAD DAB Adaptor DB1 already connected to the T 755, you can now carry out the T 755 to receive DAB broadcasts. 1 Toggle [AM/FM/DB] button until DAB mode. The VFD will show “No Service List”... -
Page 33: Manual Scan
The T 755 is equipped with a data port in the rear panel where an optional “NAD IPD 1 Dock with iPod” (NAD IPD 1) can be plugged in. With the NAD IPD 1 linking the T 755 with your own iPod player, you can enjoy listening to your favorite tracks and playlists as well as view applicable still image and video playback. -
Page 34: Using The T 755 - Am/Fm/Db/Ipod
IN to their applicable power sources. 1 With your T 755, iPod player and NAD IPD 1 all at power ON state, select SOURCE 5 of your T 755. Your iPod player will show in its display the NAD logo and below it “OK to disconnect”. -
Page 35: Using The Htr Remote Control
• Contains pre-programmed library of NAD remote codes. The NAD HTR 3 is ready to operate the T 755 A/V Receiver right out of the box, but it is really eight remotes in one. Each of the 8 Device Selector keys at the top of the handset can call up a new “page”... -
Page 36: Learning Codes From Other Remotes
OPERATION USING THE HTR 3 REMOTE CONTROL LEARNING CODES FROM OTHER REMOTES Begin by positioning the HTR 3 “nose-to-nose” with the source remote so the two devices’ infrared windows are about 2 inches apart. • Enter Learning Mode: On the HTR 3, simultaneously press-and-hold for 3 seconds both a Device Selector key and the [RES] key (just below the DISP key) until the Learn LED at the center of the HTR 3 turns steady green. -
Page 37: Button Illumination Timeout
DELETE MODE The HTR 3 can store learned, copied, and “default library” commands on any single key (The default library commands are the pre-programmed NAD codes, such as the native T 755 commands on the [AMP] “page. ” ). You can delete commands by layers back “down” to the default library command on any key, removing learned commands, punched-through functions, and copied keys. -
Page 38: Loading Code-Libraries
USING THE HTR 3 REMOTE CONTROL LOADING CODE-LIBRARIES The HTR 3 can store a different library of default NAD codes for each of its Device Selector “pages. ” If the original default library does not control your NAD CD player, tape deck, DVD player, or other component, follow the procedure below to change the code-library. -
Page 39: Sleep Mode
SLEEP MODE The Sleep Mode timer will switch the T 755 to Standby mode automatically after a preset number of minutes. Pressing the HTR 3’s SLEEP button once will display the setting of the sleep time increment. Pressing the HTR 3’s SLEEP button a second time within a 3-second period will change the sleep time increment in 15-minute intervals, after which time the T 755 will automatically switch into Standby mode. -
Page 40: Reference
• Batteries are flat or incorrectly inserted. HTR remote. • IR transmitter window on remote or IR Receiver window on T 755 is obstructed. • T 755 front panel is in very bright sunlight or ambient light. T 755 does not respond to •... -
Page 41: Specifications
AMPLIFIER SECTION Power output Stereo Mode Power output Surround Mode Total harmonic distortion at rated power IM distortion at rated power Input sensitivity and impedance PREAMPLIFIER SECTION Input sensitivity and impedance TUNER SECTION AM SECTION Total Harmonic Distortion Loop sensitivity 20dB S/N FM SECTION Usable sensitivity, MONO Total Harmonic Distortion, MONO... - Page 42 ©2008 NAD ELECTRONICS INTERNATIONAL A DIVISION OF LENBROOK INDUSTRIES LIMITED All rights reserved. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International T 755 Manual Volume 1 01/08...
