INSTALLATION
MISANO
FROM R5516 ONWARDS

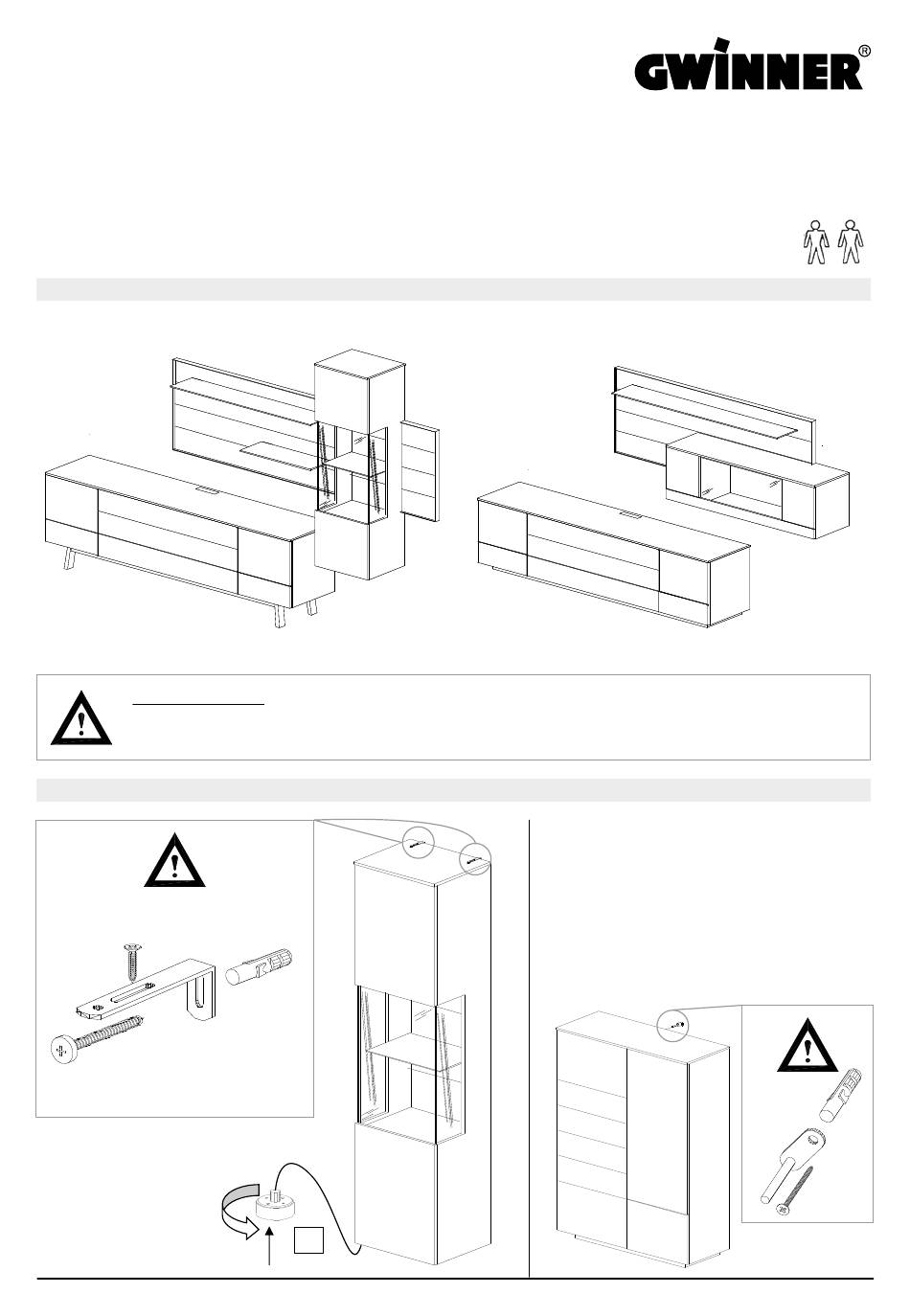

IMAGE 1, Example walls MI2 and MI7
PLEASE NOTE!
CAUTION! Follow the specifications carefully when fitting wall units. Secure all
elements that may tip with the anti-tip mechanisms supplied.
IMAGE 2, Fitting the anti-tip mechanism
4x17 fillisterhead
screw
5.5x70
cylinderhead screw
Push the levelling gliders
into the intended holes
and align the cabinets
MISANO INSTALLATION
Wall plug,
dia. 8 mm
+/-
Qualified specialist personnel
On all 8-increment U cabinets, a fixing
bracket with metal pins is fitted as an
anti-tip mechanism. A 5x60 mm
countersunk screw and an 8-mm-dia.
plastic wall plug is used to do so. The
13-mm cover panel only covers the
fittings on angled assemblies.
1
