GENERAL INSTALLATION
CALEA

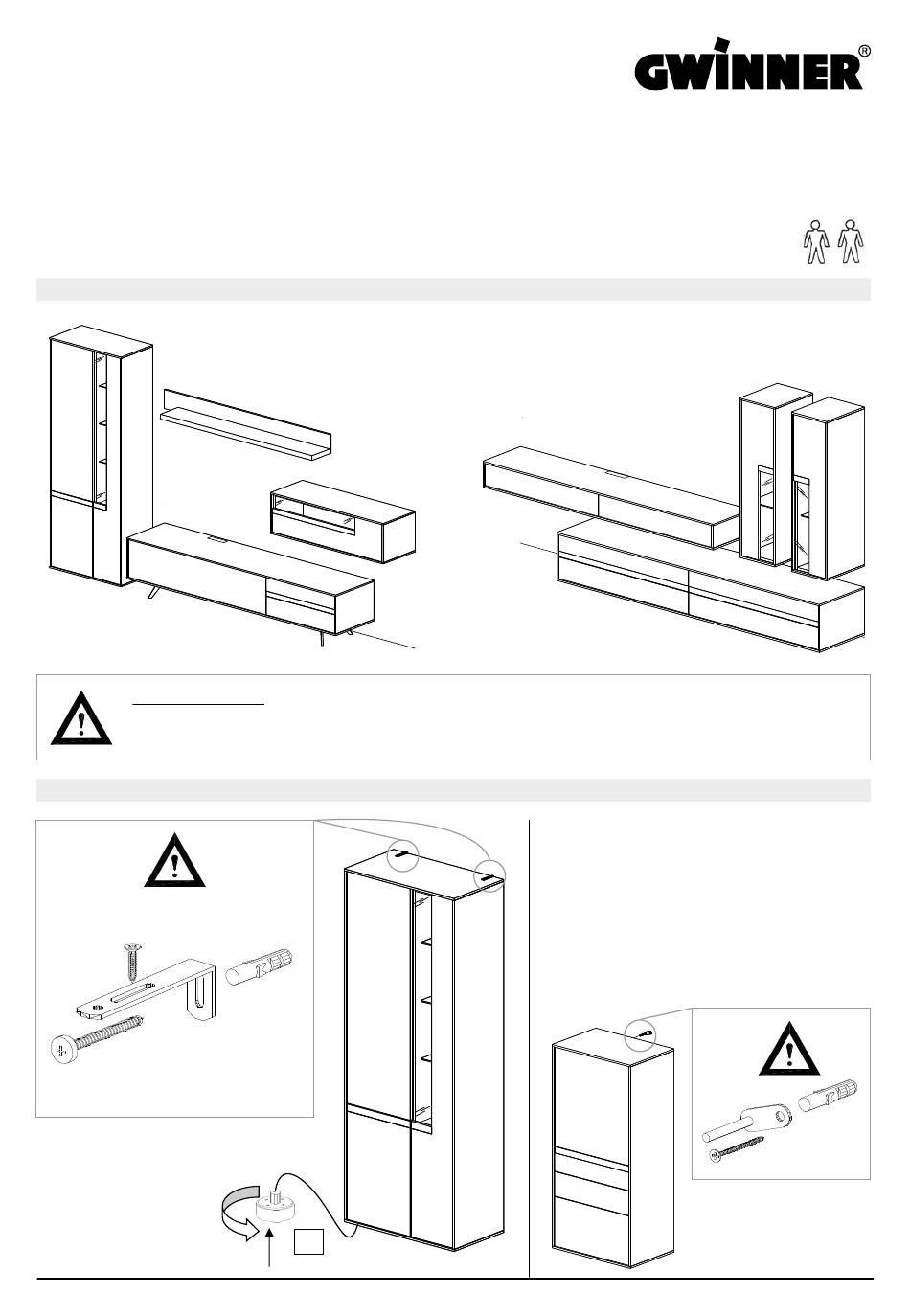

IMAGE 1 Example walls CE57 and CE217
PLEASE NOTE!
CAUTION! Follow the specifications carefully when fitting wall units. Secure all
elements that may tip with the anti-tip mechanisms supplied.
IMAGE 2, Fitting the anti-tip mechanism
4x17 fillisterhead
screw
5.5x70
cylinderhead screw
Push the levelling gliders
into the intended holes
and align the cabinets
GENERAL CALEA ASSEMBLY INSTRUCTIONS
Wall plug,
dia. 8 mm
+/-
Qualified specialist personnel
On all 5-8-increment U cabinets, a
fixing bracket with metal pins is fitted
as an countersunk screw and an
8-mm-dia. plastic wall plug is used to
do so. The 13-mm cover panel only co-
vers the fittings on angled assemblies.
1
Advertisement
Related Manuals for GWINNER CALEA
Summary of Contents for GWINNER CALEA
- Page 1 The 13-mm cover panel only co- 4x17 fillisterhead screw vers the fittings on angled assemblies. Wall plug, dia. 8 mm 5.5x70 cylinderhead screw Push the levelling gliders into the intended holes and align the cabinets GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 2 Connecting base elements with 8x countersunk screws M8x 25 mm black 4x adjusting screws M8x 25 mm for Securing the base height adjustment. with 12x countersunk screws Ø5x 80 mm Adhere 4x 3 mm felt strips GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 3 1150 or 1450 mm and fit a strain relief on both sides using Liko 3x13 mm. Secure the cable using a cable clip and lay the lighting cables in the carcase. „LN120“ lighting with 115 cm below 123 cm wall unit GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 4 IMAGE 7, Hanging the wall unit Upper adjustment screw = depth adjustment Lower adjustment screw = height adjustment Hanging the wall unit Adjusting the wall units– Caution! Check from above that all fittings have been fitted in the rails. GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 5 Secure the 13-mm cover panels at the marked points from the inside. M4x28 connecting screw (4x27mm countersunk screw and with sleeve nut cover caps in the carcase colour) Push the levelling gliders into the intended holes and align the cabinets GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 6 L=171 mm (Q-Line Mini Opal) Interior cable outlet Rear view with LED 6-way distributor, Secure the cable using a cable lower cover panel clip and lay the lighting cables with cut-out for cable in the carcase. GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 7 If there is a different subsurface, select an appropriate fixing material. IMAGE 12, Hanging the cabinets Upper adjustment screw = depth adjustment Lower adjustment screw = height adjustment Adjusting the wall units Tighten the screw no. 3, safety catch. GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 8 A 5x60 mm countersunk screw and an 8-mm-dia. plastic wall plug is used to do so. The 13-mm cover panel only covers the fittings on angled assemblies. GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 9 Drill the 8-mm wall plug and screw in the wall hook The wall plugs supplied are suitable for the following sub-surfaces: Concrete, solid brick, ventilating brick, hollow concrete blocks. If there is a different subsurface, select an appropriate fixing material. GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 10 5,5x70 + Dübel 8 mm screw in the wall hook The wall plugs supplied are suitable for the following sub-surfaces: Concrete, solid brick, ventilating brick, hollow concrete blocks. If there is a different subsurface, select an appropriate fixing material. GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 11 WB165L/R, WBA165L/R WB180L/R, WBA180L/R WB195L/R, WBA195L/R The wall plugs supplied are suitable for the following sub-surfaces: Concrete, solid brick, ventilating brick, hollow concrete blocks. If there is a different subsurface, select an appropriate fixing material. GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 12 H1-3, H1-4, H1-13, H1-14 H1-5, H1-8, H1-15, H1-18 The wall plugs supplied are suitable for the following sub-surfaces: Concrete, solid brick, ventilating brick, hollow concrete blocks. If there is a different subsurface, select an appropriate fixing material. GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 13 H2-28, H2-30 H2-43, H2-45 H2-50, H2-51, H2-52, H2-53 The wall plugs supplied are suitable for the following sub-surfaces: Concrete, solid brick, ventilating brick, hollow concrete blocks. If there is a different subsurface, select an appropriate fixing material. GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 14 H7 cabinets H3 cabinets H8 cabinets H3 cabinets The wall plugs supplied are suitable for the following sub-surfaces: Concrete, solid brick, ventilating brick, hollow concrete blocks. If there is a different subsurface, select an appropriate fixing material. GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 15 1x 12.5 cm rail CE100 CE100-SV HS5-238QL HS5-238QR The wall plugs supplied are suitable for the following sub-surfaces: Concrete, solid brick, ventilating brick, hollow concrete blocks. If there is a different subsurface, select an appropriate fixing material. GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 16 EK2-60, EK2-75, 3 glass panels each 378 x 170 x 4 mm EK2-90, EK2-105, 4 glass panels each 378 x 170 x 4 mm Adjusting the front gap by pushing Push fittings fitted to the cabinet, adjustable using the magnetic locking system Doors open by pushing! GENERAL CALEA ASSEMBLY INSTRUCTIONS...
-
Page 17: Depth Adjustment
Only connect the lights to the safety transformers in accordance with EN 61558 (VDE 570) using 12-volt direct current (DC). The total power consumption of the connected lights (see type label) must not exceed the transformer nominal capacity. GENERAL CALEA ASSEMBLY INSTRUCTIONS... - Page 18 Drawer adjustment Drawer tilt adjustment Drawer front gap adjustment Unhook the drawer Put the drawer in GENERAL CALEA ASSEMBLY INSTRUCTIONS...
- Page 19 CALEA lighting plan without radio remote control Important information about LED lighting: Caution, Note the maximum transformer Only connect the lights to the safety transformers load. Overloading the transformer reduces in accordance with EN 61558 (VDE 570) using its service life. Fault! 12-volt direct current (DC).
- Page 20 CALEA lighting plan with FKS4 Important information about LED lighting: Caution, Note the maximum transformer Only connect the lights to the safety transformers load. Overloading the transformer reduces in accordance with EN 61558 (VDE 570) using its service life. Fault! 12-volt direct current (DC).
