INSTALLATION ROWS WITH PANEL PLINTH
MEDIA CONCEPT
AB R4625
IMAGE 1 example walls PS3 3-incr. and PS2 2-incr.

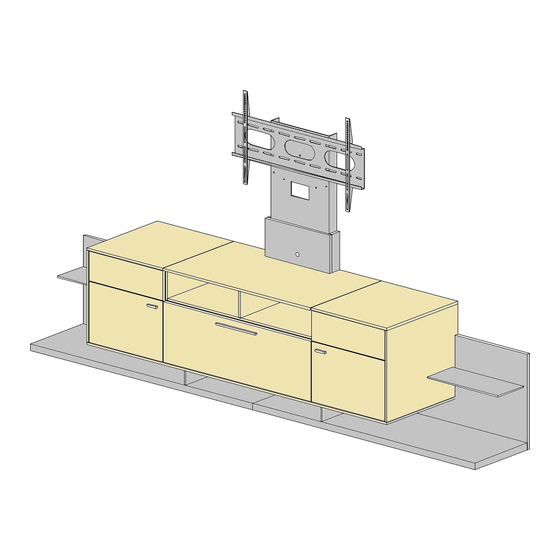

Example with TV
PLEASE NOTE!
CAUTION! Follow the specifications carefully when fitting wall units.
Secure all elements that may tip with the anti-tip mechanisms supplied.
IMAGE 2, connecting the plinth panel to the wall panel.
Four 4x70
countersunk
screws
Push six levelling gliders
into the intended holes
+/-
MEDIA CONCEPT INSTALLATION ROWS WITH PANEL PLINTH
Fit two black KU pads
to the wall panel
(Assembly aid)
Qualified specialist personnel
Example without TV
Soundklappe
ohne Griff "Push"
Note the safety catch for
2-incr. & 3-incr. carcase
PS3
Tighten no. 3
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GWINNER MEDIA CONCEPT
Summary of Contents for GWINNER MEDIA CONCEPT
- Page 1 Fit two black KU pads Note the safety catch for Four 4x70 to the wall panel 2-incr. & 3-incr. carcase countersunk (Assembly aid) screws Tighten no. 3 Push six levelling gliders into the intended holes MEDIA CONCEPT INSTALLATION ROWS WITH PANEL PLINTH...
- Page 2 „LN195“ light, only if Fit four glass clamp fittings Secure cable with a self- requested by the customer at the marked points using adhesive fasten cable clip (preassembled at the 3x15 Liko screws factroy) MEDIA CONCEPT INSTALLATION ROWS WITH PANEL PLINTH...
- Page 3 The wall plugs supplied are suitable for the following sub-surfaces: Concrete, solid brick, ventilating brick, hollow concrete blocks. If there is a different subsurface, select an appropriate fixing material. MEDIA CONCEPT INSTALLATION ROWS WITH PANEL PLINTH...
- Page 4 Adjusting the wall units Tighten the screw no. 3, safety catch. IMAGE 9, securing the glass shelf to the wall panel Slide the glass shelf Securely fix the glass shelf in place and adjust the Inclination MEDIA CONCEPT INSTALLATION ROWS WITH PANEL PLINTH...
- Page 5 The wall plugs supplied are suitable for the following sub-surfaces: Concrete, solid brick, ventilating brick, hollow concrete blocks. If there is a different subsurface, select an appropriate fixing material. MEDIA CONCEPT INSTALLATION ROWS WITH PANEL PLINTH...
- Page 6 Tighten the screw no. 3, safety catch. IMAGE 14, (completed installation) Removable cable cover with brush seal Push fittings fitted to the cupboard, adjustable using the magnetic locking system Push the cover to open MEDIA CONCEPT INSTALLATION ROWS WITH PANEL PLINTH...
