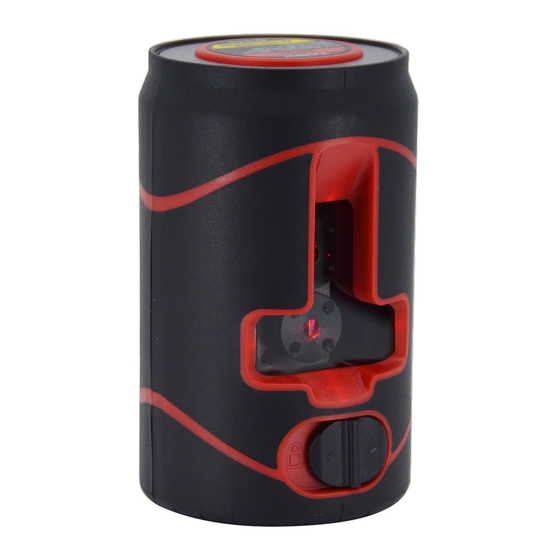

Futech LL4200 Instruction Manual

INSTRUCTION MANUAL [EN]
LL4200 – LINE LASER RED
LL4205 – LINE LASER GREEN
LL5505 – LINE LASER GREEN

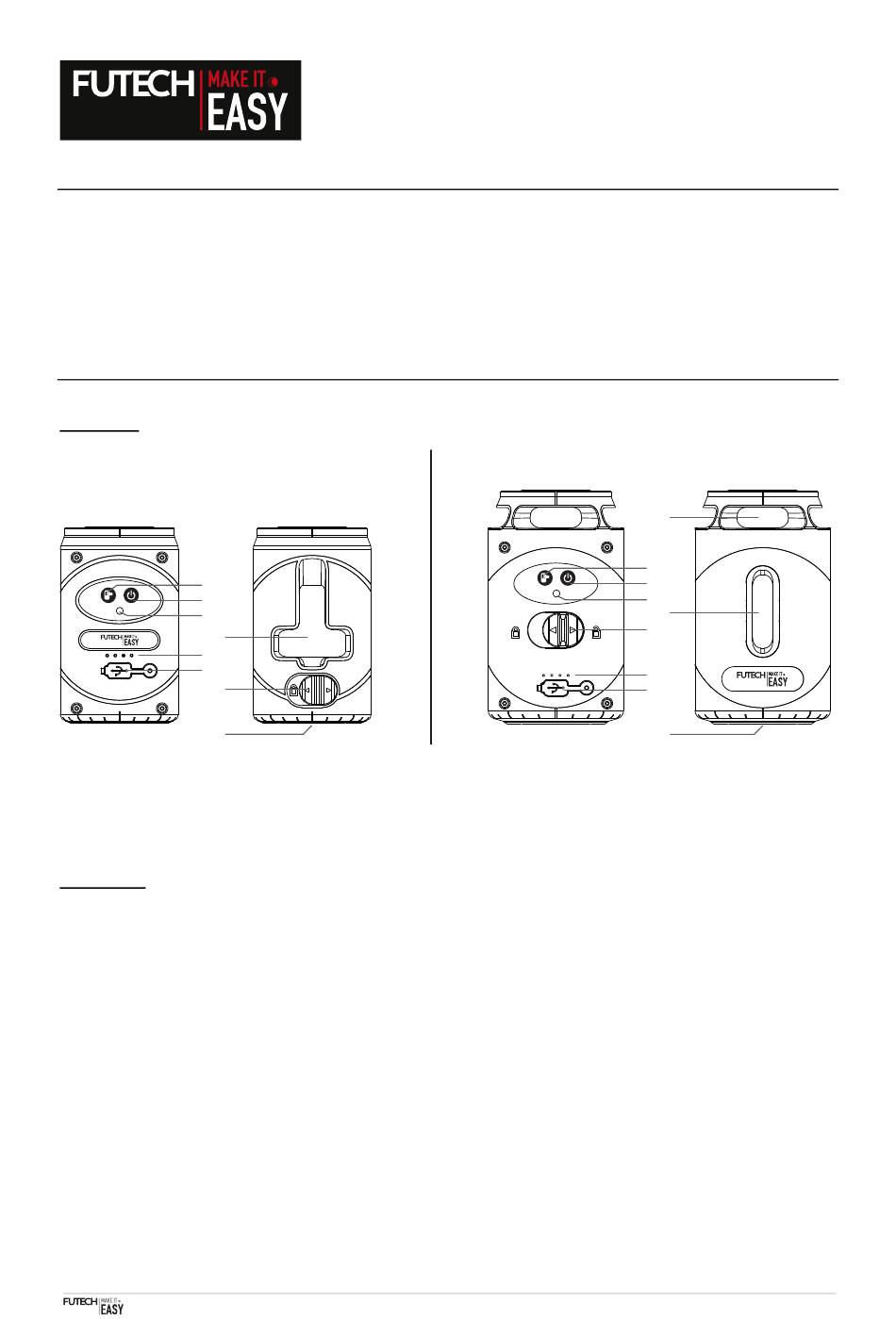

OVERVIEW

LL4200 - LL4205
2
1
8
RECEIVER ON/OFF
POWER SAVE
7
4
3
5
6
1. On/off button – Laser line chooser
2. Energy safe - Receiver button (pulse)
3. USB-C charging connector
4. Battery indicator

OPERATING

Keep the LOCK switch [5] always in lock position (left) during transport or storage.
1.

SELF-LEVELLING MODE

Slide the lock switch [5] to the unlock position (right). Both laser lines, horizontal and vertical, will light up. The pendulum will be released
and the laser will self-level. The LED indicator light [8] is green.
If the LED indicator light [8] is red and the laser lines flashes, this means the laser line is not levelled because the position of the laser is
out of the levelling range, which is about 4°. Put the laser on a much flatter place within the 4° levelling range to have a levelled laser
line. The LED indicator light [8] will be green again when the laser is back in his levelling range.
Press the On/off button – Laser line chooser [1] shortly gives you the possibility to turn on or off the horizontal or vertical line.
× Press one time:
× Press second time:
× Press a third time:
MANUAL LL4200 – LL4205 – LL5505 [EN]
Horizontal line will turn off. Only vertical line is visible.
Vertical line turns off, horizontal line turns on again.
Both laser lines will be on.
V1.0 – 05.2022
LL5505
RECEIVER ON/OFF
POWER SAVE
5. Lock switch – On/off switch
6. ¼" screw (to use with a tripod)
7. Laser exit
8. LED indicator light
7
2
1
8
7
5
4
3
6
1
