Belling BEL FS50EFDO SIL Operating And Installation Instructions

Belling BEL FS50EFDO SIL Operating And Installation Instructions

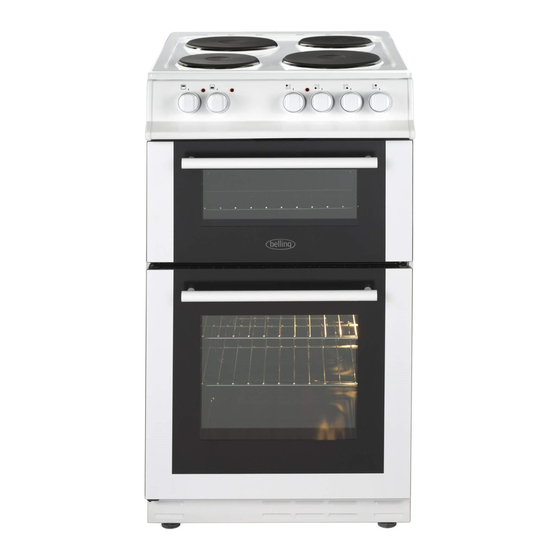

Electric double oven

Advertisement

Quick Links

BEL FS50EFDO SIL/444443926
BEL FS50EFDO STA/444443924
BEL FS50EFDO BLK/444443925
BEL FS50EFDO WHI/444443923
OPERATING AND INSTALLATION
INSTRUCTIONS OF
ELECTRIC DOUBLE OVEN

Advertisement

loading
Need help?

Need help?

Do you have a question about the BEL FS50EFDO SIL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Belling BEL FS50EFDO SIL

  • Page 1 BEL FS50EFDO SIL/444443926 BEL FS50EFDO STA/444443924 BEL FS50EFDO BLK/444443925 BEL FS50EFDO WHI/444443923 OPERATING AND INSTALLATION INSTRUCTIONS OF ELECTRIC DOUBLE OVEN...
  • Page 2 Dear Customer, Thank you for purchasing this Cooking Appliance. The safety precautions and recommendations in these instructions are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance. Please keep this booklet in a safe place.
  • Page 3 CONTENTS: LAYOUT OF COOKER WARNINGS INSTALLATING YOUR COOKER USING THE PRODUCT CLEANING AND MAINTENANCE SERVICE AND TRANSPORT...
  • Page 4 PART 1: LAYOUT OF COOKER List of Components 1. Cooktop Rack 2 2. Control panel Rack 1 3. Top oven door 4. Oven door handle 5. Main oven door 6. Grid Rack 5 7. Fan cover Rack 4 8. Supply leg Rack 3 Rack 2 Rack 1...
  • Page 5 PART 2: WARNINGS PLEASE READ THE ENTIRE INSTRUCTION MANUAL CAREFULLY BEFORE USING YOUR APPLIANCE. MAKE SURE TO KEEP THE MANUAL SOMEWHERE SAFE IN CASE YOU NEED IT FOR FUTURE REFERENCE. THIS INSTRUCTION MANUAL HAS BEEN WRITTEN WITH OUR OTHER COOKER MODELS IN MIND, AS WELL AS YOUR MODEL, THEREFORE SOME OF THE FEATURES THAT YOU SEE EXPLAINED IN THIS MANUAL WILL NOT BE APPLICABLE TO YOUR COOKER.
  • Page 6 - WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. - For hobs incorporating a lid, any spillage should be removed from the lid before opening. And also the hob surface should be allowed to cool before closing the lid.
  • Page 7 - WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. - CAUTION: Accessible parts may be hot when the cooking or grilling is in use. Young children should be kept away. •...
  • Page 8 During usage • When you first run your oven a certain smell will emanate from the insulation materials and the heater elements. For this reason, before using your oven, run it empty at maximum temperature for 45 minutes. At the same time you need to properly ventilate the environment in which the product is installed.
  • Page 9 PART 3: INSTALLING YOUR COOKER Manufactured with the best quality parts and material, this modern, functional and practical cooker aims to meet all your cooking needs. Read the manual carefully to familiarise yourself with the functions of the appliance so that you know how to use it successfully and safely.
  • Page 10 3.2 ADJUSTING THE LEVELLING LEGS This cooker stands on 4 levelling legs. As the legs are initially on a lower position, you must adjust them to make sure the cooker is balanced before using it. If you need to balance the cooker, the legs can be adjusted by turning them clockwise. You can raise the cooker by a maximum of 15mm with the levelling legs.
  • Page 11 Connection diagram is given below. This appliance must be earthed. For this connection, ‘ Twin and Earth 6242Y’ type cable should be used.
  • Page 12 3.4 INSTALLING THE ANTI-TILTING BRACKET...
  • Page 13 The availability of a heating element varies according to the specification of products. 4.2. USING YOUR COOKER The control panel of the cooker is shown below. BEL FS50EFDO SIL - BEL FS50EFDO STA - BEL FS50EFDO BLK - BEL FS50EFDO WHI...
  • Page 14 4.3. USING THE COOKTOP BURNERS There are 2 types hotplates Standard hotplate Rapid hotplate (which is marked by the red dot on the hotplate surface) The hob part of the cooker is operated by 4 control knobs, one for each burner. Each control knob has 7 positions on the control panel for a more precise heat control.
  • Page 15 4.4 USING THE OVEN 4. 4. 2 Using the Top Oven The switch for top oven allows you to select the oven fonctions. The symbols and their functions are briefly explained in the following lines. The detailed information for their usage will also be explained in the following pages.
  • Page 16 when you finish grilling. Take the hot grill pan out the oven by using the handle and put the pan onto a secure surface. Keep children away from the hot oven during and after grilling, until it has cooled completely. Warning: Top cavity door should be kept open during this function.
  • Page 17 Fan and ring heating function This function spreads heated air equally in the oven and it is appropriate for single or more trays cooking. Turn your main oven's switch and set the temperature. If available, adjust the digital programmer. Place the tray on the grid. It is recommended to preheat for 10 minutes. If you have two trays of food that you will cook in your oven;...
  • Page 18 4.5. USING THE GRILL PAN HANDLE SET Warning : Always use an oven glove to protect your hand when using the grill as all the metal parts can become very hot! This grill pan has a detachable handle, so make sure the handle is centralised and attached securely as in the picture on the next page.
  • Page 19 4.6. HEAT DEFLECTOR Warning: When operating the grill for periods in excess of 15 minutes, always fit the heat deflector provided, avoiding exposure to exposure to excessive control knob temperature. Care should be taken when returning the grill door to the vertical closed position, avoiding hand contact with the deflector.
  • Page 20 4.7. COOKING RECOMMENDATIONS 4.7.1. Top oven cooking chart Food Cooking Temperature Time(min.) Rack position Small Cakes 160-185 20-25 1(From Bottom) Burgers Max position 20-25 2(From Bottom) Beef Max position 25-30 2(From Bottom) Toast Max position 5-10 2(From Bottom) 4.7.2. Main oven cooking chart Food Cooking Temperature Time(min.)
  • Page 21 PART 5: CLEANING AND MAINTENANCE 5.1 GENERAL - Before cleaning your cooker, make sure that all control knobs are in the “0” position and that the oven has cooled down. - Before you clean, check whether the cleaning equipment and detergents you use are appropriate for the cooker, and what is recommended by the manufacturer.
  • Page 22 5.3 REMOVING AND REASSEMBLING THE OVEN DOOR To remove the oven door; • Open the oven door(1). • Open the saddle bracket up to end position(2). • Close the door till it almost reaches to rd the full closed position as shown in 3 figure and remove the door by pulling it Saddle towards yourself.
  • Page 23 5.4 MAINTENANCE Replacing the Oven Light We recommend you have the oven light changed by an authorised technician. The rating of the new lamp should be 230V, 25 Watt, Type E14. - Unplug the cooker and make sure it has cooled down properly. - Remove the lid in front of the light.
  • Page 24 PART 6: SERVICE AND TRANSPORT 6.1 TROUBLESHOOTING BEFORE CONTACTING A REPAIR SERVICE If the oven is not working: 1. Make sure the cooker is plugged in and switched on. 2. Check other appliances to make sure there hasn't been a power cut. 3.
  • Page 25 Brand BEL FS50EFDO SIL BEL FS50EFDO STA Model BEL FS50EFDO BLK BEL FS50EFDO WHI Type of Oven ELECTRIC Mass 44,6 Energy Efficiency Index - conventional 119,1 Energy Efficiency Index - fan forced Energy Class Energy consumption (electricity) kWh/cycle 0,81 - conventional...
  • Page 26 Brand BEL FS50EFDO SIL BEL FS50EFDO STA Model BEL FS50EFDO BLK BEL FS50EFDO WHI Type of Hob Electric Number of Cooking Zones Heating Technology-1 Hotplate Size-1 Ø14,5 Energy Consumption-1 Wh/kg 193,0 Heating Technology-2 Hotplate Size-2 Ø14,5 Energy Consumption-2 Wh/kg 194,0...
  • Page 27 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
