Summary of Contents for Belling BEL BI602F

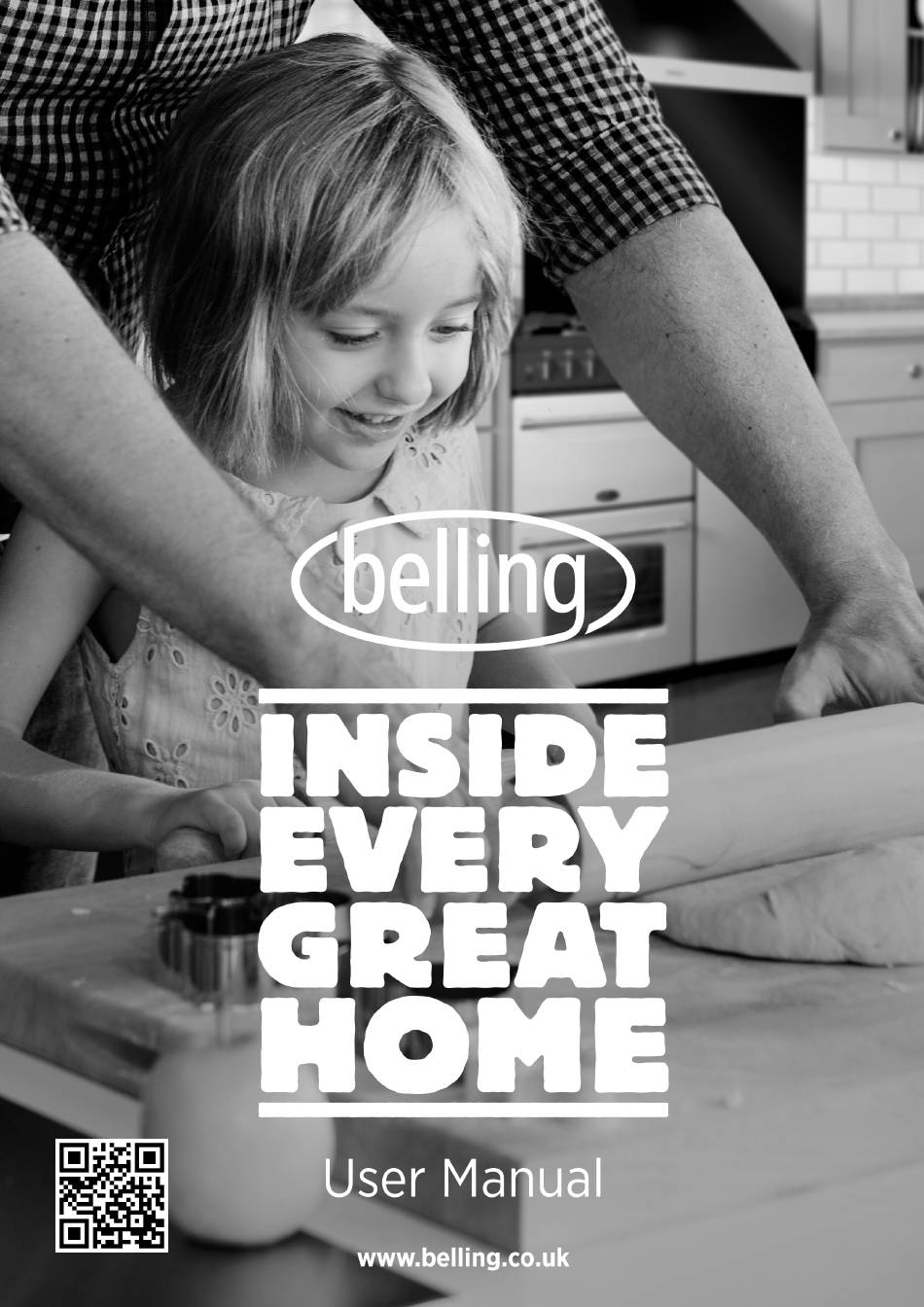

- Page 1 Belling Built In 60cm Date: 17/05/19...
- Page 2 NZ - New Zealand DE - Germany NL - Netherlands AU - Australia ES - Spain To contact Belling about your appliance, please call: Warranty Registration Customer Care Helpline 0800 952 1068 0344 815 3746 in case of difficulty within the UK...
-
Page 3: Declaration Of Compliance
INTRODUCTION ACKNOWLEDGEMENT Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. This user guide book is designed to help you through each step of owning your new product. Please read it carefully before you start using your appliance, as we have endeavored to answer as many questions as possible, and provide you with as much support as we can. - Page 4 SAFETY WARNING • During use the appliance becomes hot. Care should be taken to avoid touching heating elements. • Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction...
- Page 5 disconnection with a minimum contact separation of 3mm. • Connection should be made with a suitable flexible cable with a minimum temperature rating of 70°C. • Although every care has been taken to ensure this appliance has no sharp edges. We recommend that you wear protective gloves when installing and moving this appliance.
-
Page 6: Using Your Appliance
USING YOUR APPLIANCE Getting to know your product Note: Your appliance layout may differ depending on the model. Control Panel Mechanical Cook-to-off Timer Indicator Oven Function Selector Oven Temperature Control (K2) Control (K1) Control Panel Minus Plus Indicator Oven Function Selector Function Oven Temperature Control (K2) Control (K1) -
Page 7: Oven / Grill Functions
Oven / Grill functions Note: Your oven may not have all of the functions shown here. We recommend for best cooking results, please preheat for 15 minutes. Symbol Function Description Oven Lamp:- Can be operated on its own for cleaning or maintenance without any heating elements coming on. The Oven lamp will also come on when any oven function is selected, except ECO function. - Page 8 Clock/Programmer (BI 602F) Note: The image below is a generic timer image, your clock / programmer may not have all these functions. Minus button Function button Plus button Minute minder Display hours:minutes Automatic mode 7-segment display Auto cooking When the oven is first connected to the electrical supply, wait for the display to automatically show “12.30”, a beep sounds once and the “12”...
- Page 9 Manual mode In manual mode, only the Time Of Day and the symbol illuminates. The cooking duration has to be controlled by the user. Note: In manual mode, to ensure the oven is not left on accidentally, if no function has been selected after 5 hours, the timer will flash once a second to warn you the oven will enter standby mode.
- Page 10 Semi-automatic finishing time This function is used to cook according to the desired finishing time. The food to be cooked is put into the oven. The oven is adjusted to the desired cooking function and temperature degree. 1. Press button until you see “End“ on the timer screen. (Before setting finished time). 2.
- Page 11 Mechanical cook to off timer (BI 602 MM) Select your desired oven function and temperature. Turn the Mechanical Cook-to-off Timer control knob fully clockwise to the maximum setting, then turn back to the desired setting. When the countdown is complete, the timer will give an audible signal and turn off the oven function. WARNING: All cooking functions will not activate without setting a cooking duration.
- Page 12 Removing the door from oven (optional) 1. To remove the door, open the door to the maximum angle. Then pull the catches on each hinge forward towards you. 2. Close the door to an angle approximately 30°. Hold the door with one hand on each side.
- Page 13 Accessories Wire shelf: For dishes, cake pan with items for roasting and baking. Shelf support rails: Used to support the wire shelf and grill pan if required. These shelf support rails on the right and left sides of the oven can be removed.
-
Page 14: Shelf Placement Warning
Shelf placement warning: To ensure the oven shelves operate safely, correct placement of the shelves between the side rails is imperative. Shelves and the grill pan can only be used between the first and fifth layers. Ensure that shelves are inserted correctly, with the upstand at the back and pointing upwards. This will help to prevent the shelves tipping forwards when they are pulled out. -
Page 15: Bulb Replacement
BULB REPLACEMENT Risk of electric shock! Glass cover You must replace a damaged glass cover. Suitable glass covers may be obtained from the after-sales service. For replacement, proceed as follows: 1. Disconnect power from the mains outlet or switch off the circuit breaker of the unit’s mains outlet. -
Page 16: Cleaning Your Appliance
CLEANING YOUR APPLIANCE Note: Always switch off your appliance and allow it to cool down before you clean any part of it. Note: Please take extra care when cleaning over the symbols on the control panel, as this can lead to them fading. - Page 17 Please keep this handbook for future reference, or for anyone else who may use the appliance.
- Page 18 Please keep this handbook for future reference, or for anyone else who may use the appliance.
-
Page 20: Technical Data
TECHNICAL DATA Electric Built In Electrical supply / Load Appliance Size (cm) Electrical supply Load (kW) 60 Fanned Oven 220 - 240V ~ 50Hz For the specific power rating of your model, refer to the data badge on the front frame of your appliance. WARNING: This appliance must be earthed.
