82-179-01021
Welcome
to this Portable DVD Player Quick Guide. Please carefully follow the
instructions to set up your portable DVD player.
Getting to Know Your Portable DVD Player

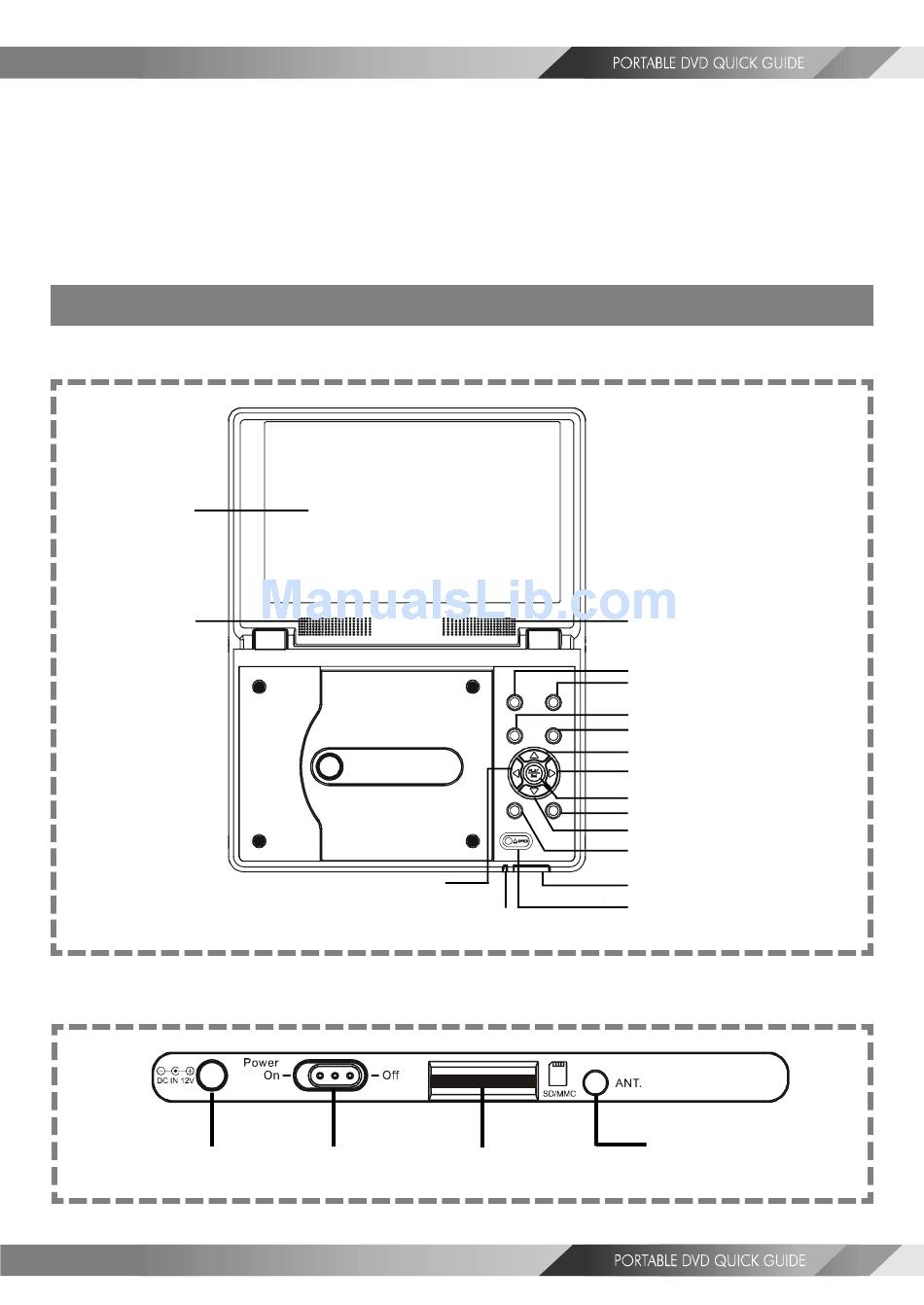

FRONT VIEW DIAGRAM

LCD screen
SPEAKERS
POWER indicator/Battery charge indicator

LEFT SIDE DIAGRAM

DC IN jack
F.BWD/LEFT button
POWER button SD/MMC card slot

Portable DVD Player

SPEAKERS
LCD button
SETUP button
MODE button
MENU button
PAUSE/UP button
F.FWD/RIGHT button
PLAY/SEL. button
NEXT button
STOP/DOWN button
PREVIOUS button
Remote Sensor
OPEN button
Antenna/Cable TV
signal Input jack
Quick Guide
1
