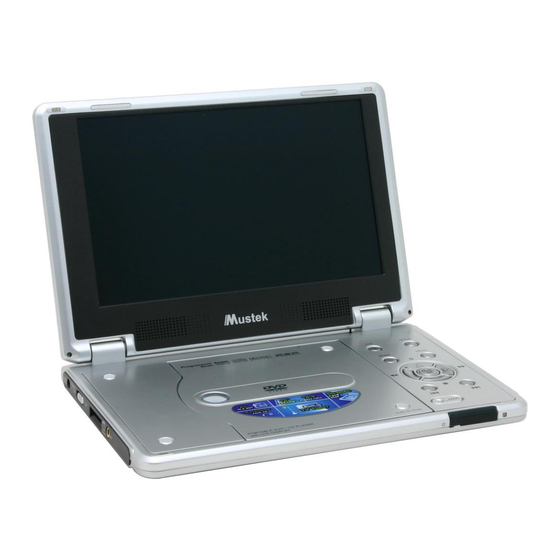

Portable DVD Player

User Guide
Playable Disk Format:
DVD/VCD/CD/MP3/CD-R/CD-RW/SD card/MMC card
82-179-01030

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL510T and is the answer not in the manual?

Questions and answers

Summary of Contents for Mustek PL510T

  • Page 1: Portable Dvd Player

    Portable DVD Player User Guide Playable Disk Format: DVD/VCD/CD/MP3/CD-R/CD-RW/SD card/MMC card 82-179-01030...
  • Page 2: Table Of Contents

    FCC and Safety Information... 4 Important Safety Instructions... 5 Precautions... 6 Selecting the type of disc for the type of TV connected... 7 Chapter 1. DVD Chapter 1. DVD Chapter 1. DVD Chapter 1. DVD Chapter 1. DVD 1-1 DVD Playback...8 Basic Playback...
  • Page 3 Table of Contents Chapter 4. Setup Chapter 4. Setup Chapter 4. Setup Chapter 4. Setup Chapter 4. Setup 4-1 Language Setup...23 On Screen Display (OSD) Language Setting... 23 DVD MENU Language Setting... 24 AUDIO Soundtrack Language Selection [DVD]... 25 SUBTITLE Language Selection [DVD]... 26 4-2 Screen Setup...
  • Page 4: Fcc And Safety Information

    CAUTION: This unit employs a laser. Due to possible eye injury, only qualified service personnel should remove the cover or attempt to service this device. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules.
  • Page 5: Important Safety Instructions

    Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 6: Precautions

    Please read these precautions before operating this unit. Power cord protection To avoid any malfunctions of the unit, and to protect against electric shock, fire or personal injury, please observe the following. Hold the plug firmly when connecting or disconnecting the AC power cord. Keep the AC power cord away from heating appliances.
  • Page 7: Selecting The Type Of Disc For The Type Of Tv Connected

    Selecting the type of disc for the type of TV connected DVDs are recorded in PAL or NTSC formats. Please refer to the table below to find the appropriate format for your region. Connecting to a multi-system TV Connecting to a NTSC TV Connecting to a PAL TV...
  • Page 8: Chapter 1. Dvd 1-1 Dvd Playback

    The portable DVD player stops playback and displays the menu screen. After operation When the portable DVD player is not in use, remove the disc and press POWER to turn off the player. Close the display panel. << NOTE >>...
  • Page 9: Stopping Playback

    Press <PREVIOUS> during playback. When you press the button once midway through a chapter, the portable DVD player returns to the beginning of the chapter being played back. The player skips a chapter each time you press the button. Still Picture (PAUSE) Press <PAUSE>...
  • Page 10: Repeat Viewing

    Repeat Viewing Press <1/ALL REPEAT> during playback. Each time you press the button, the disc will repeat a chapter or title. Press once: Chapter (Repeat chapter) Press twice: Title (Repeat title) Press three times: Disc (Repeat disc) Press four times: off (Repeat cancelled) *To return to normal playback <1/ALL REPEAT>...
  • Page 11: Convenient Functions

    When you turn on or remove the disc, the portable DVD player will playback the language which is selected at the initial setting. If you select a language which is not recorded on the disc, the portable DVD player will playback a prior language programmed on the disc.
  • Page 12: Changing Subtitle Language (B)

    When you turn on or remove the disc, the portable DVD player will playback the subtitle language which is selected at the initial setting. If you select a subtitle language which is not recorded on the disc, the portable DVD player will playback a prior subtitle language programmed on the disc.
  • Page 13: Using A Dvd Menu

    1-2 Convenient functions Using a DVD Menu Some DVD discs have unique menu. For example, DVDs programmed with complex contents provide guide menus, and those recorded with various languages provide menus for audio and subtitle language. Although the DVD menu’s contents and operation vary from disc to disc, the following explains basic operation when this feature is used.
  • Page 14: Audio Cd Playback

    Audio DVD Preparation Attache the battery or connect the portable DVD player to a wall outlet. If connecting to external equipment, please perform the following: Press on the power button of the TV set, and select “Video” as the TV input.
  • Page 15: Skipping Ahead Or Back To Tracks

    Press <PREVIOUS> during playback. When you press the button once midway through a track, the portable DVD player returns to the beginning of the track being played. The player skips a track each time the button is pressed. Pause Playback Press <PAUSE>...
  • Page 16: Playing Kodak Picture Cds

    You can play Kodak picture CDs for viewing on the screen. Load a kodak picture CD. After few seconds, the portable DVD player starts to play back the pictures in slide show automatically. You can press the number buttons corresponding to the order of the picture, then press <PLAY/SEL.>.
  • Page 17: Thumbnail Mode

    3-1 Playing Kodak Picture CDs Thumbnail Mode Press <TITLE> to enter Thumbnail mode. While in Thumbnail mode, there are 20 pictures per page for viewing. Press < selected picture in its original size, press When you view the picture in its original size, you can press Press <NEXT>...
  • Page 18: Playing Jpeg Picture Cds

    You can play JPEG pictures CDs for viewing on the screen. Load a JPEG picture CD. After few seconds, the portable DVD player starts to play back the pictures in a slide show automatically. You can press the number buttons corresponding to the order of the picture, then press <PLAY/SEL.>.
  • Page 19: Playing Jpeg Picture Cds

    3-2 Playing JPEG Picture CDs Playing Mode Press <NEXT> to view the next picture or picture. Press <RIGHT> button or <RIGHT> button to rotate right by 90 degrees. Press <LEFT> button to rotate left by 90 degrees. Press *To pause playback ---Press <PAUSE>.
  • Page 20: Playing Mp3 Music Discs

    Special F Special F unctions unctions Special F Special F Special Functions unctions unctions Basic Playback Press POWER on. Press <OPEN> to open the disc cover. Insert the MP3 disc and close the cover. Close the cover. Playback will start automatically after approximately 5 seconds. MP3 files will begin to playback automatically.
  • Page 21: Playing A Cd Containing Jpeg Pictures And Mp3 Music

    3-4 Playing a CD containing JPEG pictures and MP3 music Basic Playback Load a disc containing JPEG pictures and MP3 music. After few seconds, the unit will enter File Manager. Under File Manager Menu, press Press <PLAY/SEL.> to playback the picture or MP3 music. *To pause playback ---Press <PAUSE>.
  • Page 22: Playing Jpeg & Mp3 Files From Mmc/Sd Card

    Special F Special F Special F Special Functions Special F unctions unctions unctions unctions Basic Playback Load a MMC/SD card containing JPEG pictures and MP3 music. After few seconds, the unit will enter File Manager. Under File Manager Menu, press Press <PLAY/SEL.>...
  • Page 23: Chapter 4. Setup

    4-1 Language Setup On Screen Display (OSD) Language Setting Allows you to set various languages for the on screen display (OSD). Press <SETUP> in the stop mode. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / <PLAY/SEL.>. Press <UP> button / Press <PLAY/SEL.>.
  • Page 24: Dvd Menu Language Setting

    Setup Setup Setup Setup Setup DVD Menu Language Setting You can select a language that has been recorded on the disc menu. Press <SETUP> in the stop mode. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / <PLAY/SEL.>. Press <UP>...
  • Page 25: Audio Soundtrack Language Selection [Dvd]

    <SETUP> to exit or select EXIT from SETUP MENU screen. ---Press For your reference: If the language selected is not recorded on the disc, the portable DVD player will playback the top- priority language of the disc. -continued <DOWN> button to select “Language Setup”, and then <DOWN>...
  • Page 26: Subtitle Language Selection [Dvd]

    <SETUP> to exit or select EXIT from SETUP MENU screen. ---Press For your reference: If the language selected is not recorded on the disc, the portable DVD player will playback the top- priority language of the disc. 4-1 Language Setup <DOWN>...
  • Page 27: Screen Setup

    4-2 Screen Setup TV Type Setting The kind of TV set (4:3 or 16:9) connected to the player and a wide-screen picture type for a 4:3 TV can be selected. Press <SETUP> in the stop mode. Press <UP> button / press <PLAY/SEL.>.
  • Page 28: Screen Saver Setting

    Setup Setup Setup Setup Setup Screen Saver Setting This function will ONLY function when the player is stopped. Press <SETUP> in the stop mode. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / Press <PLAY/SEL.>.
  • Page 29: Tv System Setting

    4-2 Screen Setup TV System Setting The player provides “PAL”, “NTSC” and “AUTO” settings for your selection. When connecting the portable DVD player to your TV, set the “TV SYSTEM” from the on-screen display to the format that is compatible with your TV’s system.
  • Page 30: Video Out Setting

    Setup Setup Setup Setup Setup Video Output Setting Please choose the preferred video output supported by your equipment. Press <SETUP> in the stop mode. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / setting.
  • Page 31 4-2 Screen Setup Video Output Setting -continued If you choose “P-Scan”, the following will show on the screen as a reminder. Screen Setup TV Type Screen Saver Your TV support P-Scan TV System Video Output : Move If your TV doesn’t support P-Scan feature, press <<Troubleshooting>>...
  • Page 32: Country Setting

    Setup Setup Setup Setup Setup Country Setting For the channel search setting, please choose your country. Press <SETUP> in the stop mode. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / <PLAY/SEL.>. Press <UP> button / Press <PLAY/SEL.>. NTSC TV Tuner NTSC TV Tuner Canada, Japan, Korea, Panama, U.S., etc.
  • Page 33: Audio Setup

    4-3 Audio Setup Digital Out Setting The portable DVD player provides three options, “SPDIF/PCM”, “SPDIF/RAW” and “Off” for the digital out setting. Press <SETUP> in the stop mode. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / press <PLAY/SEL.>.
  • Page 34: Analog Out Setting

    Setup Setup Setup Setup Setup Analog Out Setting Press <SETUP> in the stop mode. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / <PLAY/SEL.>. Press <UP> button / setting. Press <PLAY/SEL.>. Audio Setup Digital Out Analog Out : Move *To return to the SETUP MENU screen <LEFT>...
  • Page 35: Custom Setup

    <PLAY/SEL.>. << Important >> If you set the MMC/SD setting to “On”, the portable DVD player can only read SD/MMC card. The portable DVD player can’t playback any discs. While the disc is played back, you can only press the...
  • Page 36: Parental Control Setting [Dvd]

    Setup Setup Setup Setup Setup Parental Control Setting [DVD] A built-in viewer rating setting enables you to lock the videos that you do not want children to view. For example, setting the ratting limit to PG-13 will prevent the unit from playing video rated R, NC-17 or X unless the correct password is entered.
  • Page 37: Password Setting [Dvd]

    4-4 Custom Setup Password Setting [DVD] You can change the password on the portable DVD player. Press <SETUP> in the stop mode. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / press <PLAY/SEL.>. Enter your old password and then press...
  • Page 38: Angle Mark Setting [Dvd]

    Setup Setup Setup Setup Setup Angle Mark Setting [DVD] You can choose to display or hide the angle mark “ Press <SETUP> in the stop mode. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / press <PLAY/SEL.>.
  • Page 39: Default Setting

    4-4 Custom Setup Default Setting You may re-set the previous settings in CUSTOM SETUP to the default setting. Press <SETUP> in the stop mode. Press <UP> button / press <PLAY/SEL.>. Press <UP> button / press <PLAY/SEL.>. Press <RIGHT> button to select “Read”, and then press <<...
  • Page 40: Lcd Setup

    Setup Setup Setup Setup Panel Setting The portable DVD player provides two options for the panel adjustment: “Normal” or “4:3”. Press <LCD>, the LCD setting information shows on the screen. Press <LCD> a number of times to select “PANEL”. Press <LEFT>...
  • Page 41: Brightness Setting

    4-5 LCD Setup Brightness Setting Press <LCD>, the LCD setting information shows on the screen. Press <LCD> a number of times to select “BRIGHT”. Press <LEFT> button or setting, and then the panel will change to the selected setting. << NOTE>> The bright range is from +9 to -9. BRIGHT BRIGHT: : : : : BRIGHT...
  • Page 42: Contrastl Setting

    Setup Setup Setup Setup Setup Contrast Setting Press <LCD>, the LCD setting information shows on the screen. Press <LCD> a number of times to select “CONTRAST”. Press <LEFT> button or setting, and then the panel will change to the selected setting. <<...
  • Page 43: Sharpness Setting

    4-5 LCD Setup Sharpness Setting Press <LCD>, the LCD setting information shows on the screen. Press <LCD> a number of times to select “SHARPNESS”. Press <LEFT> button or setting, and then the panel will change to the selected setting. << NOTE>> The sharpness range is from 0 to 4. SHARPNESS: SHARPNESS: SHARPNESS:...
  • Page 44: Troubleshooting

    Before requesting service for your portable DVD player, check the chart below for a possible cause of the problem you are experiencing. Some simple checkups or a minor adjustment on your part may eliminate the problem and restore proper operation.
  • Page 45: Disc Handling And Maintenance

    5-2 Disc Handling and Maintenance Handling Precautions Hold the disc by the edges so the surface will not be soiled with fingerprints. (A) Fingerprints, dirt and scratches can cause skipping and distortion. Do not write on the label side with a ball-point pen or other writing utensils that can leave indentations or scratch the surface of the disc.
  • Page 46: Definition Of Terms

    F F F F F or Y or Y or Y our R our R eference eference or Your R or Y our Reference our R eference eference Angle Recorded onto some DVD discs are scenes which have been simultaneously shot from a number of different angles (the same scene is shot from the front, from the left side, from the right side, etc.).
