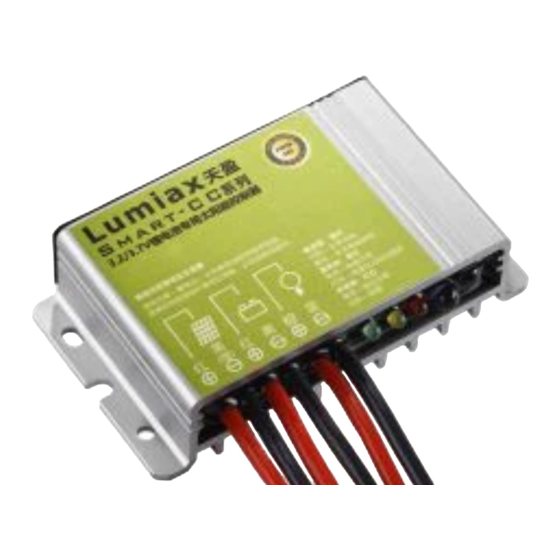

- Page 1 Smart -CC series Solar charge controller Suitable for Lithium batter y (Constant Current, Buck) 15A 30W User Manual User Manual_Smart-CC series_MA CE, Rohs, ISO9001:2015 Subject to change without notice!
-
Page 2: Description Of Function
Solar charge controller Smart-CC series User Manual Dear Clients, Thanks for selecting the Smart -CC series solar controller. Please take the time to read this user manual, this will help you to take advantage of controller’s new features. This manual gives important recommendations for installing, programming, using and so on. -
Page 3: Starting Up The Controller
Solar charge controller Smart-CC series User Manual 4.2 Transportation mode(Load off) 5.1 Test function Press the“Back” and“Backlight”key at the same time Press the“T est”key of S/SG-Unit, the controller will turn more than 3s, the remote controller will work in factory on load for 30s. - Page 4 Solar charge controller Smart-CC series User Manual 7. Streetlight Function 8.LVD, LVR, Threshold, Dimming For controllers with infrared sensing function( R series), if 8.1Low Voltage Disconnect(LVD) work mode is set to Five-stage Night Mode or T0T mode , " " "...
- Page 5 Solar charge controller Smart-CC series User Manual 11.LED indications and Faults & Alarms 8.4.2 365mode 365 mode is based on the battery power (charge power, discharge power) energy control. If the battery charge more during the day, then discharge more at night. The controller can calculate the dimming ratio according to the charging power and the remaining power of battery, so as Green LED...
-
Page 6: 12.Technical Data
Solar charge controller Smart-CC series User Manual 12.Technical Data Item SMR1006-CCN32LiR SMR1006-CCN32Li SMR1006-CCN32LiG Max Charging Current Charging voltage target ~9.0V(Programmable) Charging voltage recovery 2.9~8.9V(Programmable) Batter y Parame- Low voltage disconnect 2.4~7.2V(Programmable) ters Low voltage reconnect 2.6 ~ 7.4V(Programmable) Battery Type Lithium 0℃...
