1.03.02.10052-1
TM
Smart -DC series
Solar charge controller
(Constant Current, Boost)
User Manual
User Manual_Smart-DC series_LL
CE, Rohs, ISO9001:2015
Subject to change without notice!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart-DC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lumiax Smart-DC Series

  • Page 1 1.03.02.10052-1 Smart -DC series Solar charge controller (Constant Current, Boost) User Manual User Manual_Smart-DC series_LL CE, Rohs, ISO9001:2015 Subject to change without notice!
  • Page 2: Description Of Function

    3 Remote controller, Default setting When BMS power off because of LVD, it can activate the system automatically (Lithium) When Smart-DC series controller is connected to the Charging target and recovery voltage can be set (Lithium) system, you can setting the controller with S/SG-Unit 0℃...
  • Page 3: Starting Up The Controller

    Solar charge controller Smart-DC series User Manual 3.2 Read the parameters 4.3 0℃ Charging Protection(Lithium Battery) Press the "Parameter" key of the S-unit to read the "0℃ Chg" can be set to "Yes", "Slow" or "No". When the setting parameters of the controller.
  • Page 4 Solar charge controller Smart-DC series User Manual 6.LVD, LVR, Threshold, Dimming 1.Dimming voltage should not be greater than the 6.1 Low Voltage Disconnect (LVD) voltage of "CVT"(Charging voltage target). When the battery voltage drops below the LVD voltage, 2. If the controller is set to "Dim" or "Auto Dim", the the controller will disconnect the load to prevent deep minimum output current can be as low as 50mA.
  • Page 5: Safety Instructions And Waiver Of Liability

    Solar charge controller Smart-DC series User Manual 8.Load and Sensor 八、安全特性及故障描述 9.Safety Features 8.1 Load Solar terminal Battery terminal Load terminal Following connect ways is for the LED lights (Vf: 2.9V~3.4V; I: 300mA, Power: 1W ) Reverse Protected Protected Protected*1...
  • Page 6: 12.Technical Data

    Solar charge controller Smart-DC series User Manual 12.Technical Data Model SMR1006-DCN5MLiR SMR1006-DCN5MLiE SMR1006-DCN5MLiEG Max Charging Current System Voltage Max. battery voltage Battery type Lithium Battery Parame- Charging Volt. target 10.0~17.0V(Programmable) ters Charging Volt. recovery 8.5~16.8V(Programmable) Volt. disconnect 8.0~15.0V(Programmable) Volt. reconnect 8.6~16.0V(Programmable)
  • Page 7 Solar charge controller Smart-DC series User Manual Model SMR1006-DCN5ELi SMR1006-DCN5ELiG SMR1006-DCN5XLiG SMR1006-DCN5XLi Max Charging Current 12V/24V automatical recognization System Voltage Max. battery voltage Gel, Liquid, AGM and Lithium Battery type <14.5V@25℃ <14.5/29V@25℃ Fast Charging Voltage 14.5V@25℃ 14.5/29V @25℃ Boost Voltage 14.8V@25℃...
  • Page 8 Solar charge controller Smart-DC series User Manual Model SMR1012-DCN5Li SMR2012-DCN5Li SMR1012-DCN5LiG SMR2012-DCN5LiG Max Charging Current 12V/24V automatical recognization System Voltage Max. battery voltage Gel, Liquid, AGM and Lithium Battery type Fast Charging Volt. <14.5/29V@25℃ Boost Voltage 14.5/29V @25℃ Equalization Voltage 14.8/29.6V @25℃(Liquid, AGM)...

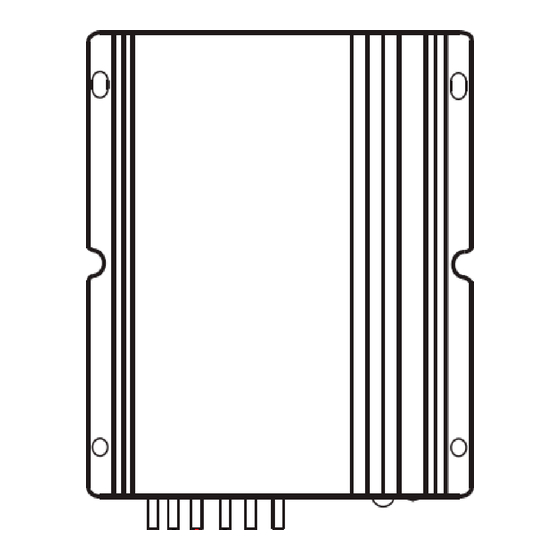

  • Page 9 Solar charge controller Smart-DC series User Manual Dimensions Controller 22.6 20.7 76.4 SMR1006-DCN5MLiE(G) SMR1006-DCN5XLi(G) 23.1 85.8 SMR1006-DCN5ELi(G) SMR10/2012-DCN5Li(G) SMR1006-DCN5MLiR Sensor Sensor lines length: 400mm Hole diameter : φ52...
