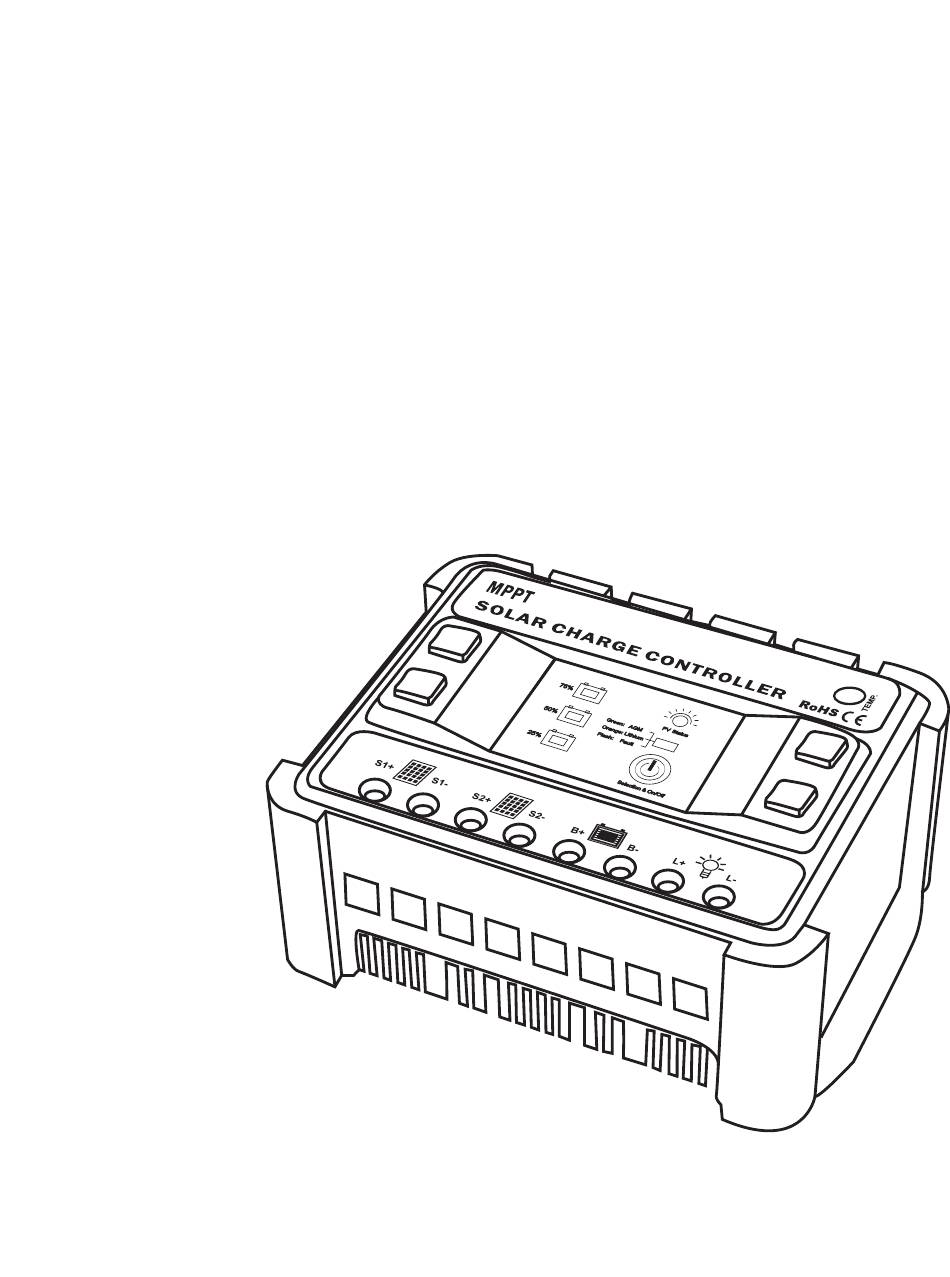

- Page 1 MPPT SOLAR CHARGE CONTROLLER MPPT SERIES ※ THE IMAGE SHOWN HERE IS INDICATIVE ONLY. PLEASE REFER TO THE ACTUAL PRODUCT...
- Page 2 CONTENTS ……………………………………………………………1 1. Safety Instructions ……………………………………………………1 2. Introduction and Functions 2.1. Introduction …………………………………………………………………1 ……………………………………………………1 2.2. Function and protection ………………………………………………………2 3. Front-panel description 4. Mounting and Connection ……………………………………………………2 …………………………………………………3 4.1. Connecting to the battery ……………………………………………3 4.2. Connecting to the solar panel 4.3.
- Page 3 Thanks for purchasing our MPPT solar charge controller with LED. This MPPT series controller is designed to charge the battery in an off-grid solar system. And it is for personal use only. With the technology of maximum power point tracking(MPPT), it has a high efficiency to charge your solar system and provide you better solar energy.
- Page 4 With battery voltage decreasing to 11V/22V, the controller switches the load off automatically. As soon as the battery is recharged, the load is switched on automatically. Over-charge protection The controller stops the charging process when the battery is fully charged. This prevents the battery from being damaged by overcharging.
- Page 5 4.1. Connecting to the battery Connect the wire to the battery with the correct polarity. To avoid overheating the wires or causing the voltage drop from the wires, please select the wire size based on controller’s rated current. Recommended wire size: 20A: min 4mm², 30A: min 6mm², 40A: min 8mm², 50A: min 10mm², 60A: min 12mm².
- Page 6 5.Operation and recommendations Protect the solar charge controller against electromagnetic effects, impacts and vibrations. Protect the solar charge controller against heat. If the controller become too hot due to high ambient temperature, the overheat protection starts and switches the device off to avoid consequential damage. Do not operate the device until it cools down.
- Page 7 7.Waste disposal and Recycling Home electronic equipment: If you won’t use this appliance any more, please bring it to the applicable collection site or public recycling site. Under any circumstances, electronic equipment shall not be disposed in the same way as normal household waste (see the WEEE symbol below). 8.Warranty According to the prescription, the period guaranteed to fix our product is one year(from the date when you get the invoice).
