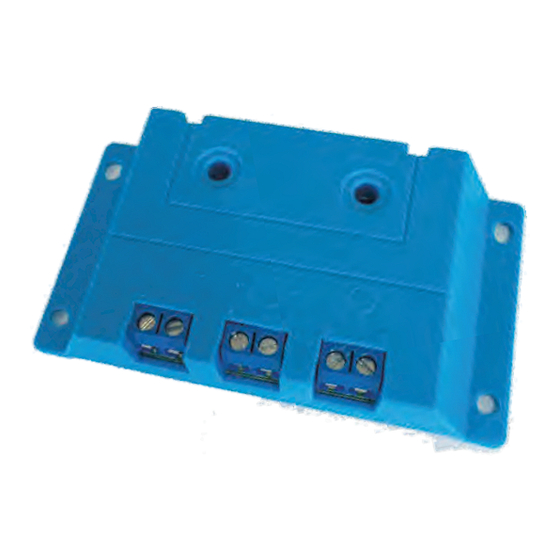

- Page 1 Lumiax Magic your solar life Shine05 Li series Solar Charge Controller 12V 5A ， User Manual User Manual_Shine series_JD CE, Rohs, ISO9001:2015 Subject to change without notice!
- Page 2 Solar charge controller Shine05 User Manual Dear Clients, Thanks for selecting the Shine series solar controller. Please take the time to read this user manual, this will help you to make full use of many advantages the controller can provide your solar system. This manual gives important recommendations for installing and using and so on.
- Page 3 Solar charge controller Shine05 User Manual 6.LED indications 8.Technical Data INFO CHARGE Shine05 Li Model Green System voltage Function Status Max solar/Load current Slow flash(1s/1s) Stop charging 14.4V Over Charge voltage Fast flash(0.1s/0.1s) Charging 14.0V Over Charge release voltage Green Battery connected，...
