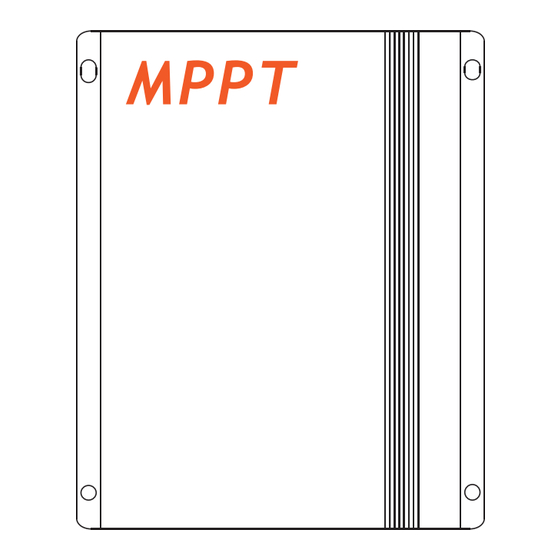

- Page 1 Lumiax MPPT your solar life MPPT-DC series MPPT Solar charge controller with LED driver built-in (Constant Current, Boost) 15/20A, 150~560W MPPT User Manual User Manual_MPPT-DC series_ML CE, Rohs, ISO9001:2015 Subject to change without notice!
- Page 2 Solar charge controller MPPT-DC series User Manual Dear Clients, Thanks for selecting the MPPT-DC series solar controller. Please take the time to read this user manual, this will help you to take advantage of controller’s new features. This manual gives important recommendations for installing, programming, using and so on.
- Page 3 5 Default setting The user can select the appropriate charging method. When MPPT-DC series controller is connected to the system, you can setting the controller with Rs485 interface. Name MPPT-DC Time1...
- Page 4 In the evening, when the solar array open circuit voltage reaches the setting day/night threshold, you can adjust the day/night delay time to make the load turn on a little 1.MPPT-DC series controller is set to D2D mode, the later. corresponding dimming setting is still valid.
- Page 5 Solar charge controller MPPT-DC series User Manual 8.4.2 365mode 11LED indications and Faults & Alarms 365 mode is based on the battery power (charge power, discharge power) energy control. If the battery charge more during the day, then discharge more at night. The controller...
- Page 6 Solar charge controller MPPT-DC series User Manual 12.Technical Data MPPT1575-DCLi-485 MPPT2075-DCLi-485 Item 12V/24V automatical recognization System Voltage Max Charging Current Max volt on Bat. Terminal Liquid, Gel, AGM and Lithium（Programmable, default: Lithium） Battery Type <14.5/29.0V@25℃ MPPT Charging Voltage 14.5/29.0V @25℃...
