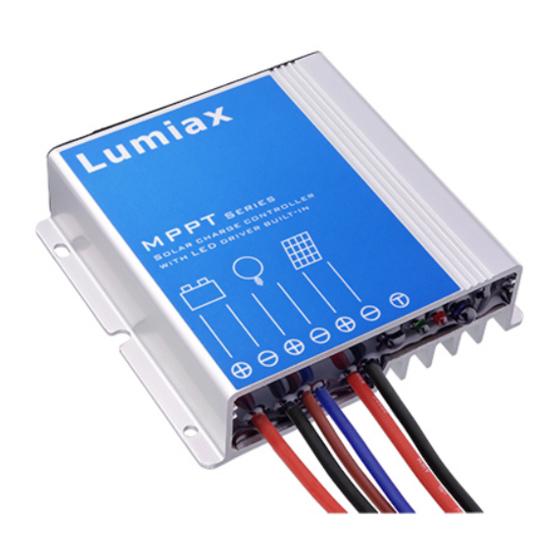

- Page 1 1.03.02.10053-1 MPPT-DC series MPPT Solar charge controller with LED driver built-in (Constant Current, Boost) 12/24V, 8/10/15/20A MPPT User Manual User Manual_MPPT-DC series_NA CE, Rohs, ISO9001:2015 Subject to change without notice!
- Page 2 Solar charge controller MPPT-DC series User Manual Dear Clients, Thanks for selecting the MPPT-DC series solar controller. Please take the time to read this user manual, this will help you to take advantage of controller’s new features. This manual gives important recommendations for installing, programming, using and so on.
- Page 3 Solar charge controller MPPT-DC series User Manual 3.2 Sensor dimension(Unit:mm) If the controller enters transport mode, the red LED will slow flash(0.2s on/5s off) ，the green and yellow led will be off and the remote control displays "Open CP". 4.2.3 Exit the transportation mode...
- Page 4 Solar charge controller MPPT-DC series User Manual 7. Streetlight Function 5.3 Read the parameters Press the "Parameter" key of the S/SG-Unit to read the For controllers with infrared sensing function( R series), if setting parameters of the controller. work mode is set to Five-stage Night Mode or T0T mode , "...
- Page 5 Solar charge controller MPPT-DC series User Manual 8.4 Auto Dimming 8.LVD, LVR, Threshold, Dimming 8.4.1 Auto Dimming mode 8.1 Low Voltage Disconnect (LVD) The "Dim Auto" item of S/SG-Unit is set to "Yes", set "Dim When the battery voltage drops below the LVD voltage, V"...
- Page 6 Solar charge controller MPPT-DC series User Manual 9.2Faults & Alarms Warning: The combination of different error conditions may cause damage to the controller. Fault Status Reason Remedy Always remove the error before you continue connecting Battery capacity Low volt. Load will be reconnected the controller.
- Page 7 Solar charge controller MPPT-DC series User Manual 12.Technical Data Item MPPT0850-DCLi MPPT0 -DCLi MPPT 50-DCLi System Voltage Max Charging Current Max volt on Bat. Terminal Battery Type Liquid, Gel, AGM and Lithium（Programmable, default: Lithium） MPPT Charging Voltage <14.5V@25℃ Boost Voltage 14.5V @25℃...
- Page 8 Solar charge controller MPPT-DC series User Manual MPPT1575-DCLi MPPT2075-DCLi Item 12V/24V automatical recognization System Voltage Max Charging Current Max volt on Bat. Terminal Liquid, Gel, AGM and Lithium（Programmable, default: Lithium） Battery Type <14.5/29.0V@25℃ MPPT Charging Voltage 14.5/29.0V @25℃ Boost Voltage 14.8/29.6V @25℃（Liquid, AGM）...
