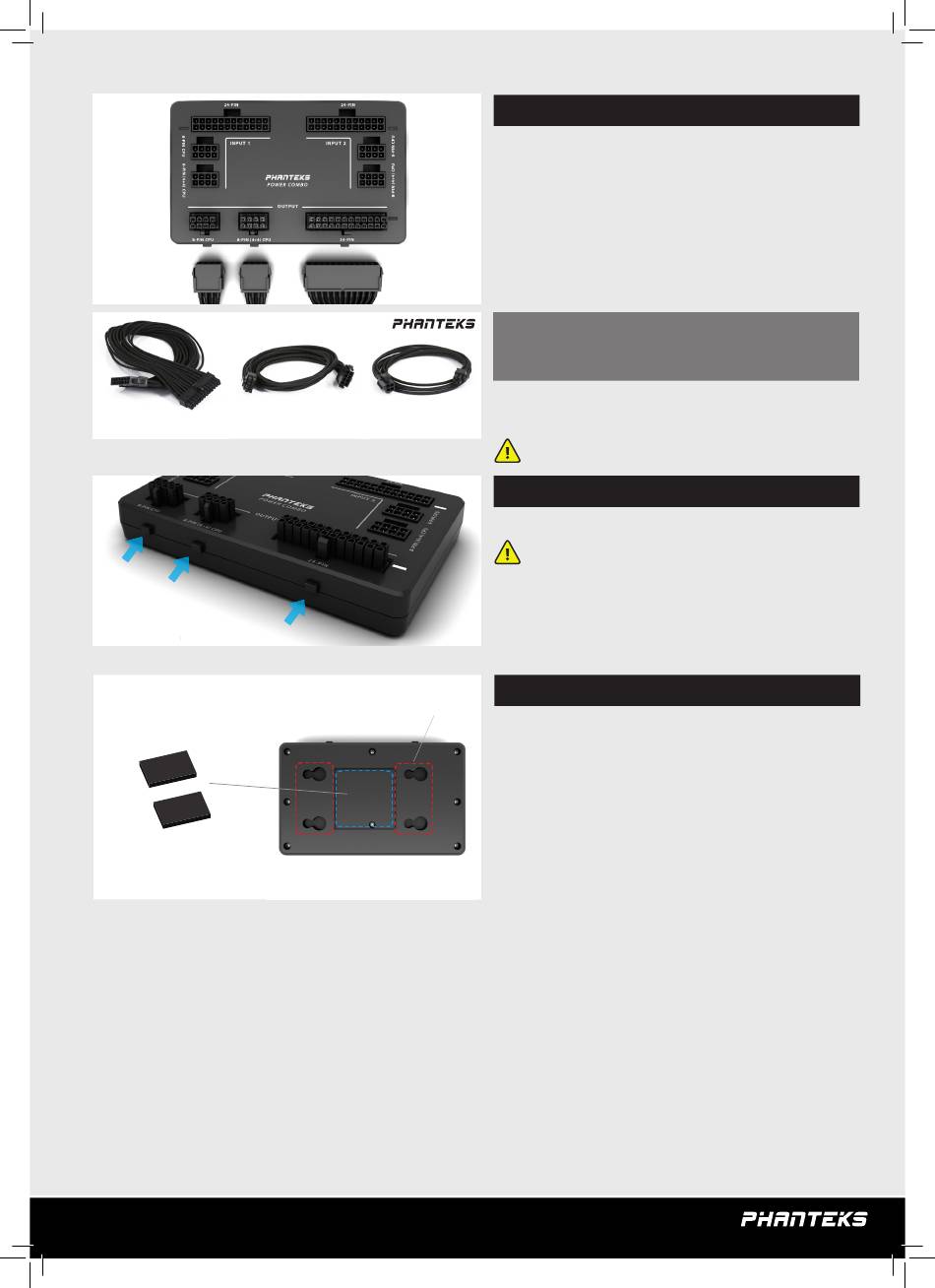

Phanteks Power Combo Installation Manual page 2

8-PIN EXTENSION
TO SYSTEM
PH- CB24P PH- CB8P
HOOK AND LOOP SHEET
STICK ON POWER SPLITTER
STICK ON CHASSIS
STEP 2. CONNECTING MOTHERBOARDS
24-PIN / 8-PIN EXTENSION CABLES ARE REQUIRED FOR CONNECTING THE POWER
COMBO TO MOTHERBOARD (cables are not included).
Connect the 24-pin / 8-pin extension cables from the Output on
the Power Combo to your motherboard. If connected correctly, LED
indicator will light up when systems are on.
*When to connect to the 2nd 8-pin connector?
If you have a motherboard with a 2nd 8-pin connector or another 4-pin
connector. (For 4-pin connector use an 8 pin to 4+4 pin cagle)
24-PIN EXTENSION
TO SYSTEM
The power combo is compatible with all standard extension cables on the market.
However, we recommend to use Phanteks' *extension cables which are designed with
extended length (500mm) for better cable management. Please check
WWW.PHANTEKS.COM
PH- CB4P
NOT INCLUDED
DO NOT PLUG THE PCI-E CABLES INTO THE 8-PIN OUTPUT ON THE POWER COMBO
Push the release button to pull the cables out.
DO NOT UNPLUG THE CABLES WHEN THE POWER COMBO IS ON
STEP 3. MOUNTING THE POWER COMBO
DROP -N-LOCK
MAKE SURE THE POWER COMBO DEVICE WILL FIT IN THE MOUNTING AREA
Installing in universal case:
1. Stick one of the "hook and loop" sheet on the Power Combo bottom.
2. Stick the other "hook and loop" sheet on the desired installation area
in the chassis.
3. Place the Power Combo device onto the "hook and loop" sheet
Installing in Compatible Phanteks Cases:
*Please make sure to check
1. Align the Power Combo to the Drop-N-Lock mounting rubbers
2. Slide to lock the Power Combo in place.
for more information.
REMOVING THE CABLES
for compatible products.
WWW.PHANTEKS.COM
