Phanteks GLACIER G40 MSI Installation Manual

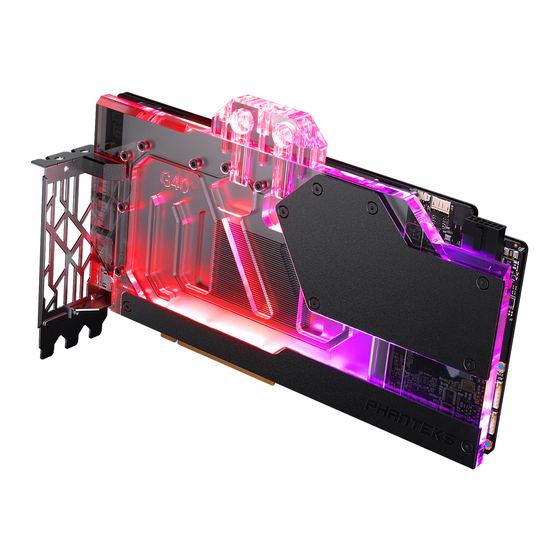

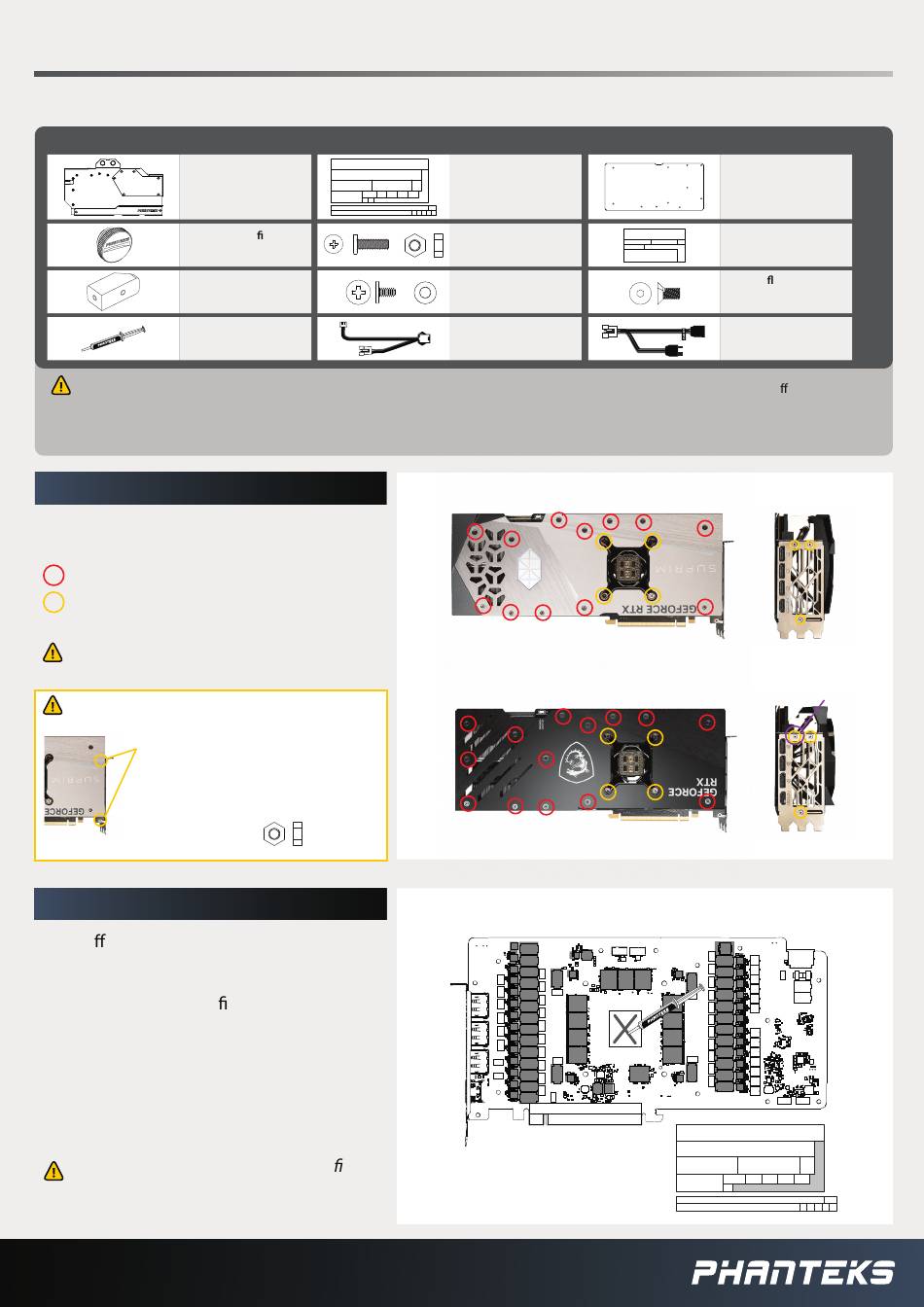

GLAC IER G40 MSI GPU BLOCK
PH-GB4090MS_BK01/CR01/MW01_BP

PACKAGE CONTENTS

GB4090MS block
QTY: 1
GLACIER stop tting
QTY: 2
Support bracket
QTY: 1
Thermal compound
QTY: 1

WARNING -

This product is intended for advanced users. Improper installation may result in damage to your equipment. While all e orts have
been made to provide the most comprehensive information possible, Phanteks assumes no liability expressed or implied for any damage(s) occurring to your
components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below instructions, or due to failure or defect in
the Phanteks cooling products. Do not disassemble the water block. Warranty will be voided.

STEP 1. REMOVING STOCK COOLER

Unscrew all highlighted screws to remove
the stock cooler and backplate.
backplate screws
stock cooler screws
Make sure to unplug the LED and Fan
cables when you remove the stock cooler.
MSI SUPRIM PCB version: V510-2.2
Some SUPRIM models require
you to remove these 2 screws.
Secure again with 2x M3 Nuts and
original screws.
STEP 2. APPLYING THERMAL PASTE & PADS
Clean o the original thermal compound.
We recommend using isopropanol alcohol.
Remove the protective lm and place the
the thermal pads on the correct position
on the PCB.
Apply the Phanteks Thermal Compound to
the center of the GPU chip.
Make sure to remove the protective lm on
both sides of the thermal pads.
Block thermal pads
QTY: 2 pre-cut pieces
M3x10 screw (1x)
M3 Nut (2x)
M2.5x5 screws/washers
QTY: 4/4
Phanteks D-RGB cable
QTY: 1
MSI RTX 4090/4080 SUPRIM (X)
MSI RTX 4090 GAMING(X) TRIO
2x
MSI RTX 4090/4080 SUPRIM (X) / GAMING(X) TRIO
8
11
11
11
6
4
10
1 3 3
6 7
11 11
5
INSTALLATION GUIDE V1.0
GB4090MS backplate
QTY: 1
Backplate thermal pads
QTY: 2 pre-cut pieces
M2.5x8 ush screws
QTY: 11
Motherboard cable
QTY: 1
Keep for step 3
6
2
12
6
1
2
3 3 7
5 6 6 6 6
4
8
10
12 11 11 11 11 11
