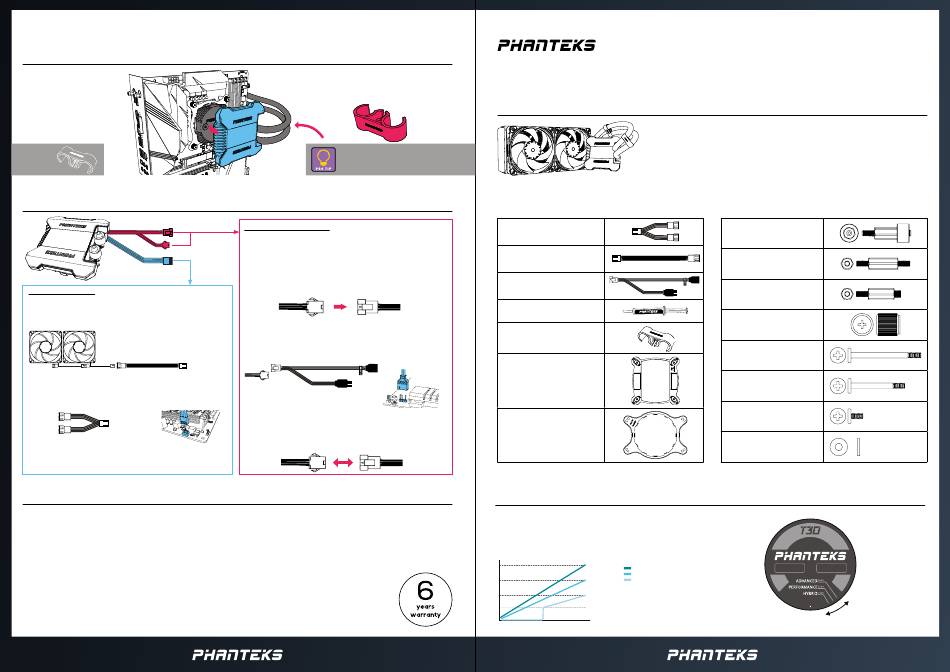

Phanteks GLACIER ONE 240 T30 Manual

5. Install Infinity Mirror Cap and Tube Clips

A) The Infinity Mirror Cap
simply snaps into place
via strong magnets.
Make sure the D-RGB
cable stays clear from
the Thumb Nut.
3 x

6. Connect cables

D-RGB Cables
Pump PWM Cable
Pump & Fan cables
A) Connect the Fans together with the Daisy-chain cables
and use the Fan PWM Extension Cable to reach the
motherboard.
Fan PWM Extension Cable
to PWM Splitter Cable
daisy chain fans
Choose between 2 configurations:
B1) Use the PWM Splitter Cable to connect the pump
and fans to a single motherboard CPU header.
to Pump
to Motherboard
CPU header
to Fans
B2) If 2x CPU headers are available on the motherboard,
the pump and fans can also be connected individually
(without PWM Splitter Cable) for more precise control.
7. Support & Warranty
As a Phanteks customer, you are priority number one. We have a dedicated team of employees across the globe to deliver the
experience you deserve.
CUSTOM E R C A R E
R M A A N D T E C H N I C A L S U P P O R T A M E R I C A S
Hours : Monday-Friday 9:00-5:00 PST
Phone number : +1(909)598-2115
Email : support@phanteksusa.com
Facebook : @Phanteks
For spare parts and optional upgrades please visit:
www.axpertec.com (EU) | www.phanteksusa.com (US)
B) OPTIONAL: Install the (3x) included
Tube Clips for a tidy tube routing.
Simply snap the clips on the tubes.
Fan cables can be routed through the
middle of the Tube Clips
D-RGB cable connection
The D-RGB lighting can be controlled through a D-RGB
equipped Phanteks chassis/controller or motherboard.
A) To Phanteks D-RGB Chassis/Controller
Connect the chassis D-RGB connector to the Infinity Mirror
Cap and/or Halos.
infinity mirror cap
D-RGB Chassis
and/or HALOS
or D-RGB controller
B) To D-RGB Motherboard
Use the 3-Pin D-RGB Motherboard Adapter to connect the
D-RGB cable to a D-RGB equipped motherboard (A-RGB*).
3-Pin D-RGB Motherboard Adapter
to D-RGB Motherboard
to 3rd Party
D-RGB
D-RGB products
Lighting
(optional)
Product
*follow motherboard manual for instruction on D-RGB control
To D-RGB Lighting Products
All Phanteks D-RGB lighting products can be daisy-chained
together
D-RGB Lighting Product D-RGB Lighting Product
R M A A N D T E C H N I C A L S U P P O R T I N T E R N AT I O N A L
Email : support@phanteks.com
Facebook : @Phanteks
GLACIER ONE
HIGH PERFORMANCE CLOSED LOOP CPU LIQUID COOLER
Package Contents
Accessories
4-Pin PWM Splitter Cable, 2x
80mm
4-Pin Fan PWM Extension Cable,
500mm
3-Pin D-RGB Motherboard
Adapter, 600mm
PH-NDC Thermal Compound
3x Tube Clips
Intel 115x/1200/1366
Backplate
AMD AM4 Bracket
(Intel Bracket is pre-installed)

1. T30 Fan preparation

The T30 fan supports 3 different fan profiles via a switch on
the fan hub. Please choose your preferred fan profile before
installing the fan into your system.
We recommend the default 'Performance mode' .
RPM
3000 RPM
Advanced mode
Performance mode (recommended)
Hybrid mode
2000 RPM
1200 RPM
500 RPM
PWM signal
0%
50% 100%

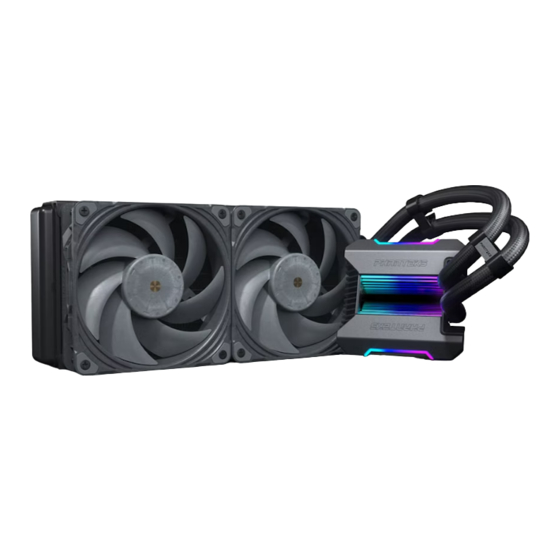

GLACIER ONE 240 T30
• Infinity Mirror Cap
• 240x38 mm Radiator
• 2x 120mm T30 Fans
Screws:
4x AM4 Stand-off
4x 115x/1200 Stand-off
4x 2066 Stand-off
4x Thumb Nut
8x 39mm Halos Screws
8x 36mm Fan Screws
8x 5mm Radiator Screws
8x Washers
Mode switch
Manual V1.0
