Phanteks Power Combo Installation Manual

Phanteks Power Combo
PH-PWCOB_2P1M
PH-PWCOB_2P1M, Phantek's patented design Power Combo is a unit that will allow users to connect
two power supply to power up one motherboard. Phanteks' Power Combo allows you to add more
power without the high cost of a high end power supply. A true plug and play, the Power Combo
requires no cutting and splicing of the wires.

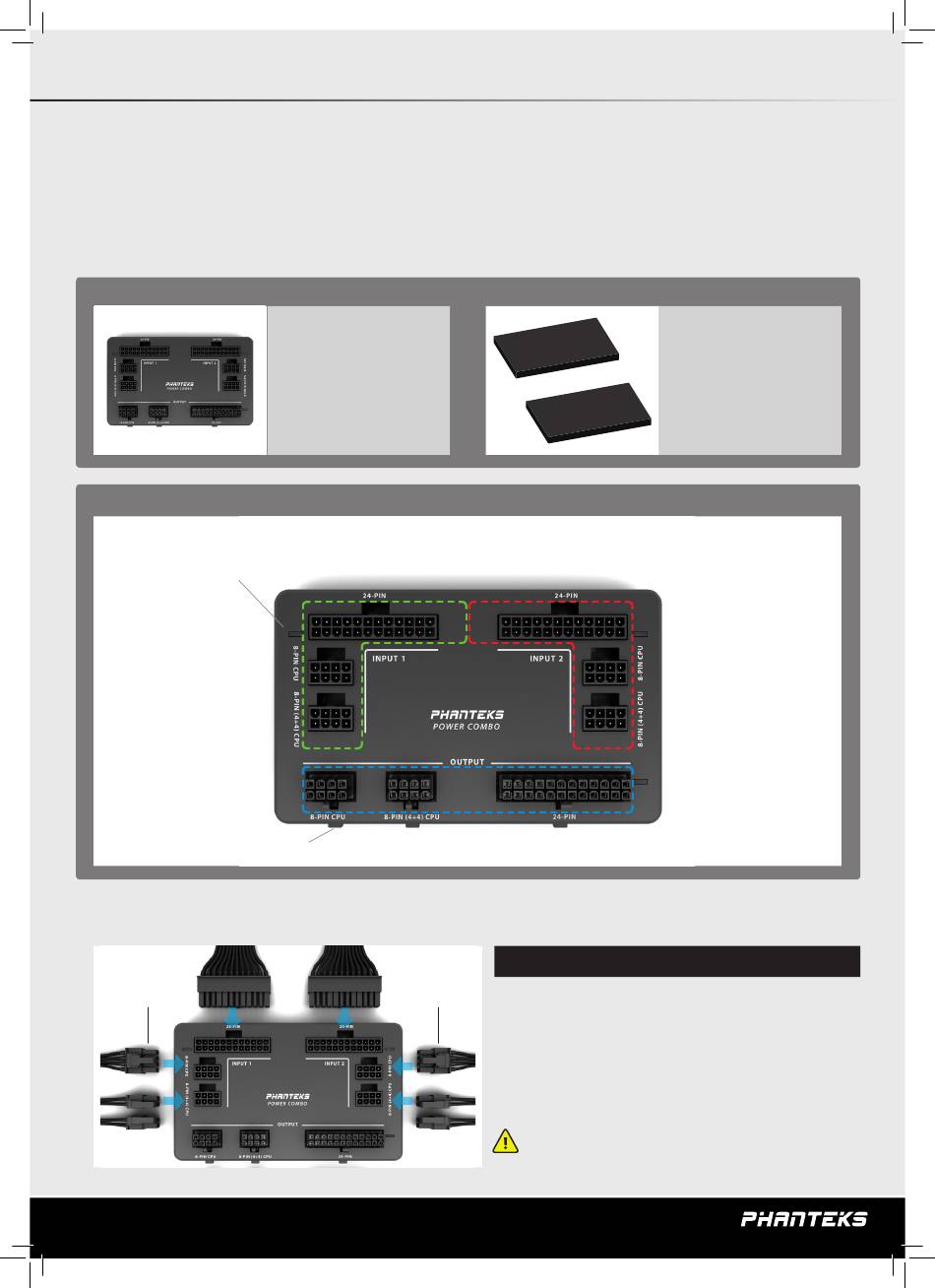

PACKAGE CONTENTS
SPECIFICATIONS
INDICATOR LED LIGHT
RELEASE BUTTON
INSTALLATION
24-Pin cable from PSU
8-Pin cable from PSU
8-Pin cable from
PSU

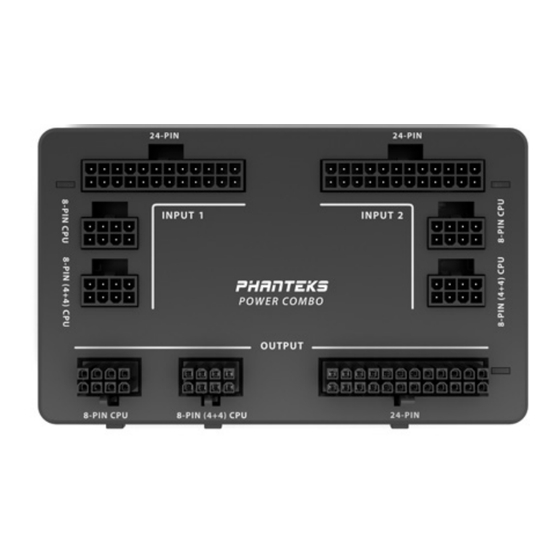

POWER COMBO DEVICE
(PH-PWCOM_2P1M)
QTY: 1
INPUT 1:
P SU
- 24-pin
- 2x 8-pin
Second 24 Pin cable
from PSU
8-Pin cable from PSU
8-Pin cable from
PSU
INSTALLATION GUIDE
HOOK AND LOOP MOUNT
QTY: 2
Description:
Used for installing the Power
Splitter in a universal case.
INPUT 2:
PS U
- 24-pin
- 2x 8-pin
OUTPUT :
- 24-Pin
- 2x 8-Pin
STEP 1. CONNECTING PSU TO POWER COMBO
FOR OPTIMAL PERFORMANCE FROM THE POWER COMBO, PLEASE CHECK
THE TOTAL POWER CONSUMPTION NEEDED FOR YOUR SYSTEMS AND
CHOOSE YOUR PSU'S WITH THE CORRECT POWER OUTPUT REQUIRED.
1. Connect the provided 24-pin and 8-pin from your power suppIies to the
24-pin and 8-pin Input 1 and Input 2 on the Power Combo. (This step is
required)
2. Optional: If your power supply has two 8-pin connector you can
connect both in for additional power.
DO NOT PLUG THE PCI-E CABLES INTO THE 8-PIN INPUT ON THE POWER COMBO
Power supply's PCI-E cables should be connected directly to GPU cards and
not to the Power COMBO
Moth e r b oard
