Phanteks Glacier G1080 Ti Installation

Phanteks Glacier G1080 Ti Installation

Advertisement

Quick Links

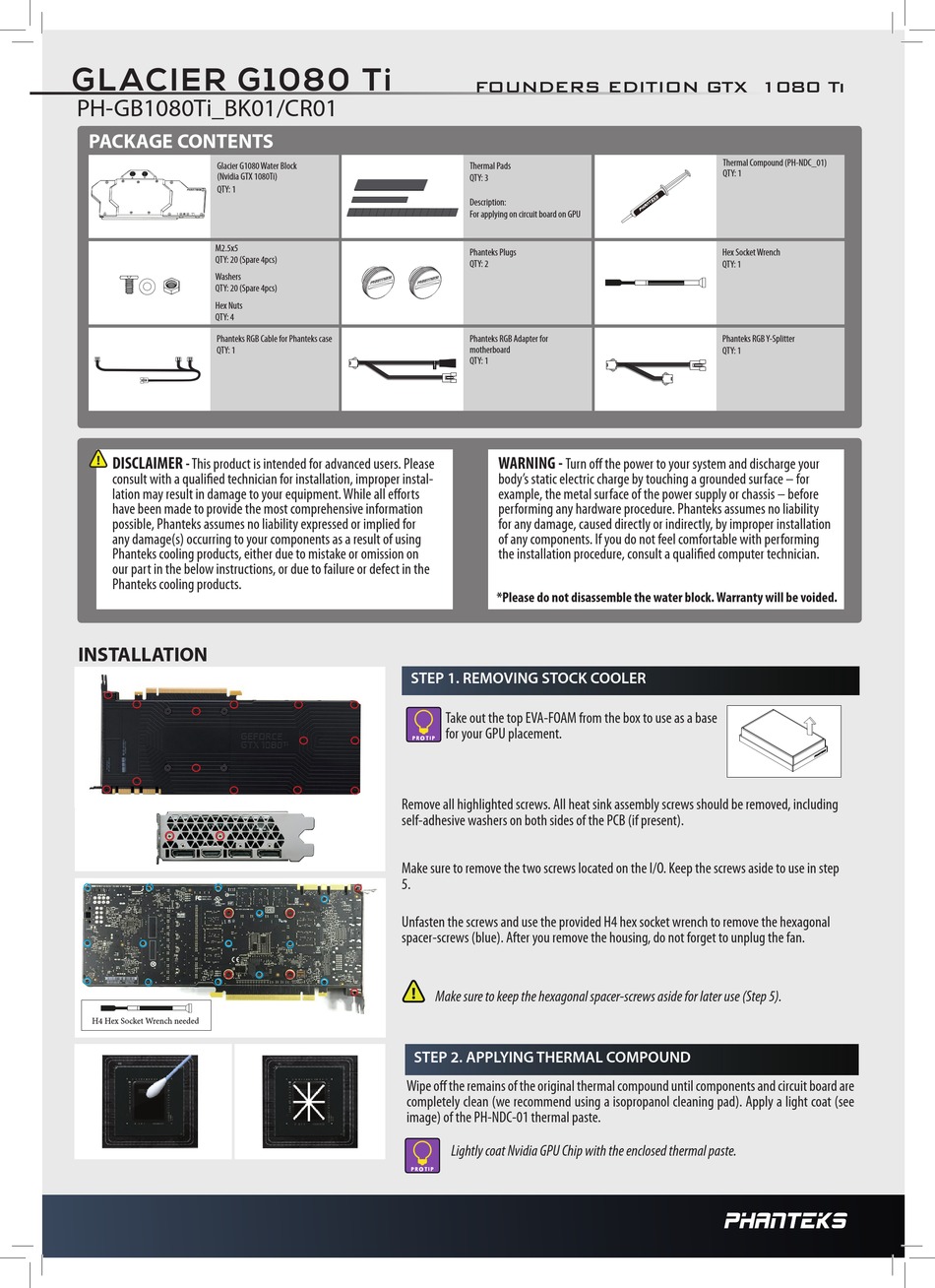

GLAC IER G1080 Ti
PH-GB1080Ti_BK01/CR01
PACKAGE CONTENTS
Glacier G1080 Water Block
(Nvidia GTX 1080Ti)
QTY: 1
M2.5x5
QTY: 20 (Spare 4pcs)
Washers
QTY: 20 (Spare 4pcs)
Hex Nuts
QTY: 4
Phanteks RGB Cable for Phanteks case
QTY: 1
DISCLAIMER
- This product is intended for advanced users. Please
consult with a qualified technician for installation, improper instal-
lation may result in damage to your equipment. While all efforts
have been made to provide the most comprehensive information
possible, Phanteks assumes no liability expressed or implied for
any damage(s) occurring to your components as a result of using
Phanteks cooling products, either due to mistake or omission on
our part in the below instructions, or due to failure or defect in the
Phanteks cooling products.
INSTALLATION
H4 Hex Socket Wrench needed
FOUNDERS EDITION GTX 1080 Ti
Thermal Pads
QTY: 3
Description:
For applying on circuit board on GPU
Phanteks Plugs
QTY: 2
Phanteks RGB Adapter for
motherboard
QTY: 1
WARNING -
Turn off the power to your system and discharge your
body's static electric charge by touching a grounded surface – for
example, the metal surface of the power supply or chassis – before
performing any hardware procedure. Phanteks assumes no liability
for any damage, caused directly or indirectly, by improper installation
of any components. If you do not feel comfortable with performing
the installation procedure, consult a qualified computer technician.
*Please do not disassemble the water block. Warranty will be voided.
STEP 1. REMOVING STOCK COOLER
Take out the top EVA-FOAM from the box to use as a base
for your GPU placement.
Remove all highlighted screws. All heat sink assembly screws should be removed, including
self-adhesive washers on both sides of the PCB (if present).
Make sure to remove the two screws located on the I/O. Keep the screws aside to use in step
5.
Unfasten the screws and use the provided H4 hex socket wrench to remove the hexagonal
spacer-screws (blue). After you remove the housing, do not forget to unplug the fan.
Make sure to keep the hexagonal spacer-screws aside for later use (Step 5).
STEP 2. APPLYING THERMAL COMPOUND
Wipe off the remains of the original thermal compound until components and circuit board are
completely clean (we recommend using a isopropanol cleaning pad). Apply a light coat (see
image) of the PH-NDC-01 thermal paste.
Lightly coat Nvidia GPU Chip with the enclosed thermal paste.
Thermal Compound (PH-NDC_01)
QTY: 1
Hex Socket Wrench
QTY: 1
Phanteks Glacier G1080
PH-GB1080MS_BK01/CR01
Phanteks RGB Y-Splitter
PACKAGE CONTENTS
QTY: 1
Glacier G1080 Water Block
(MSI GTX 1080/1070 GAMING)
QTY: 1
Thermal Compound (PH-NDC_01)
QTY: 1
M2.5x5, washers
M2.5x5, washers
QTY: 20
QTY: 20
DISCLAIMER
- This product is intended for advanced users. Please
have been made to provide the most comprehensive information
possible, Phanteks assumes no liability expressed or implied for
any damage(s) occurring to your components as a result of using
Phanteks cooling products, either due to mistake or omission on
our part in the below instructions, or due to failure or defect in the
Phanteks cooling products.
INSTALLATION
phanteks
-
STEP 1. RE
TAKE OUT
Remove all hig
removed, inclu
MAKE SURE TO
STEP 2. AP
Wipe off the rem
Circuit board ar
cleaning pad). A
LIGHTLY CO
