Summary of Contents for Fronius TransPocket 180 RC HW
- Page 1 Operating Instructions TransPocket 180 RC HW EN-US Operating instructions 42,0426,0267,EA 008-02112022...
-
Page 3: Table Of Contents
Table of contents Safety Instructions Explanation of Safety Instructions General Intended Use Environmental Conditions Obligations of the Operating Company Obligations of Personnel Grid Connection Residual current circuit breaker Personal Protection and Protection of Others Data on noise emission values Danger from toxic gases and vapors Danger from Flying Sparks Risks from grid current and welding current Stray welding currents... - Page 4 Safety Displayed Faults Service messages No Function Average consumption values during welding Average wire electrode consumption during MIG/MAG welding Average shielding gas consumption during MIG/MAG welding Average shielding gas consumption during TIG welding Technical data Explanation of the term duty cycle Technical Data Overview with critical raw materials, year of production of the device...
-
Page 5: Safety Instructions
Safety Instructions Explanation of DANGER! Safety Instruc- tions Indicates an immediate danger. ▶ Death or serious injury may result if appropriate precautions are not taken. WARNING! Indicates a possibly dangerous situation. ▶ Death or serious injury may result if appropriate precautions are not taken. CAUTION! Indicates a situation where damage or injury could occur. -
Page 6: Intended Use
Intended Use The device is to be used exclusively for its intended purpose. The device is intended exclusively for the welding process specified on the rating plate. Utilization for any other purpose, or in any other manner, shall be deemed to be "not in accordance with the intended purpose."... -
Page 7: Grid Connection
Grid Connection Devices with a high output can influence the energy quality of the grid due to their current consumption. This may affect a number of device types in terms of: connection restrictions criteria regarding maximum permissible grid impedance criteria regarding the minimum required short-circuit power both at the interface with the public grid See technical data In this case, the operator or the person using the device should check whether or... -
Page 8: Data On Noise Emission Values
Data on noise The device produces a maximum noise level of <80 dB(A) (ref. 1pW) when idling emission values and in the cooling phase following operation in relation to the maximum permit- ted operating point at standard loading in accordance with EN 60974-1. A workplace-specific emission value for welding (and cutting) cannot be spe- cified because this value depends on the welding process and the environmental conditions. -
Page 9: Risks From Grid Current And Welding Current
Keep suitable, tested fire extinguishers on hand. Sparks and pieces of hot metal may also get into surrounding areas through small cracks and openings. Take appropriate measures to ensure that there is no risk of injury or fire. Do not undertake welding in areas at risk of fire and explosion, or on sealed tanks, drums, or pipes if these have not been prepared in accordance with cor- responding national and international standards. -
Page 10: Stray Welding Currents
When working at elevated heights, wear a safety harness to prevent falls. Before working on the device, switch off the device and remove the grid plug. Secure the device to prevent the grid plug from being connected and switched on again by applying a clearly legible and understandable warning sign. After opening the device: Discharge all electrically charged components Ensure that all components are disconnected from the power supply. -
Page 11: Emf Measures
Test and assess the immunity of equipment in the vicinity of the device in ac- cordance with national and international provisions. Examples of interference- prone equipment that could be affected by the device: Safety devices Grid power lines, signal lines, and data transfer lines IT and telecommunications equipment Devices for measuring and calibrating Supporting measures to avoid EMC problems:... -
Page 12: Requirement For The Shielding Gas
Slag may fly off cooling workpieces. Therefore, also wear regulation-compliant protective equipment when reworking workpieces and ensure that other persons are sufficiently protected. Leave the welding torch and other parts with a high operating temperature to cool before working on them. Special regulations apply in areas at risk of fire or explosion –... -
Page 13: Safety Measures At The Setup Location And During Transport
Protect shielding gas cylinders with compressed gas from excessive heat, mech- anical impact, slag, open flames, sparks, and arcs. Mount the shielding gas cylinders vertically and secure them in accordance with instructions so they cannot fall over. Keep shielding gas cylinders away from welding or other electrical circuits. Never hang a welding torch on a shielding gas cylinder. -
Page 14: Safety Measures In Normal Operation
Safety Measures Only operate the device when all safety devices are fully functional. If the safety in Normal Oper- devices are not fully functional, there is a danger of: ation Injury or death to the operator or a third party Damage to the device and other material assets belonging to the operating company Inefficient operation of the device... -
Page 15: Safety Inspection
Copyright Copyright of these Operating Instructions remains with the manufacturer. Text and illustrations were accurate at the time of printing. Fronius reserves the right to make changes. The contents of the Operating Instructions shall not provide the basis for any claims whatsoever on the part of the purchaser. If you... -
Page 16: General

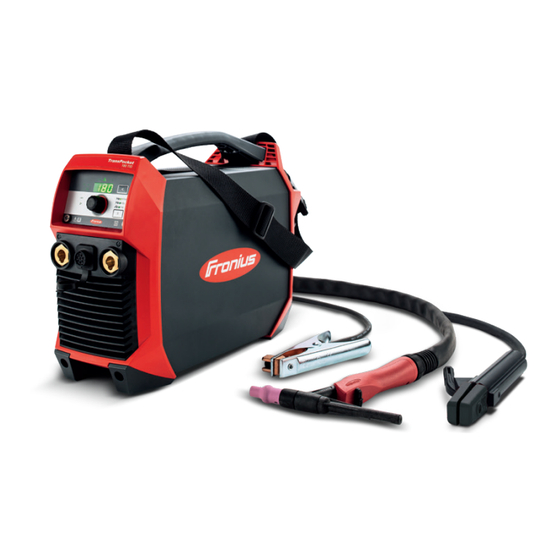

General Device concept The power source is specifically designed to pre-heat welding wires during TIG hot-wire welding and has the following characteristics: Compact dimensions Robust plastic housing High reliability even under tough usage conditions Carrier belt for easy transport even on construction sites Securely attached operating elements Current sockets with bayonet latch Additionally, the power source offers Power Factor Correction, meaning the cur-... -
Page 17: Warning Notices On The Device
Warning Notices on the Device The warning notices and safety symbols located on the power source must not be removed or painted over. They warn against incorrect operation, which may result in serious injury and damage. Meaning of the safety symbols on the device: Welding is dangerous. -
Page 18: Application Example
Application Ex- ample Robot Workpiece Welding torch Wirefeeder Power cable (positive pole) Power source Robot control/power source connection cable Robot control Grounding cable (negative pole) (10) Robot control/robot connection cable... -
Page 19: Before Installation
Before installation Safety WARNING! Danger from incorrect operation and work that is not carried out properly. This can result in serious personal injury and damage to property. ▶ All the work and functions described in this document must only be carried out by technically trained and qualified personnel. - Page 20 The maximum apparent power S of the power source is calculated as follows: 1max 1max 1max and U according to the device rating plate and technical data 1max The generator apparent power S needed is calculated using the following rule of thumb: x 1.35 1max...
-
Page 21: Operating Controls, Connections And Mechanical Components
Operating controls, connections and mechanical components Safety WARNING! Danger from incorrect operation and work that is not carried out properly. This can result in serious personal injury and damage to property. ▶ All the work and functions described in this document must only be carried out by technically trained and qualified personnel. -
Page 22: Operating Controls, Connections, And Mechanical Components
Operating Con- trols, Connec- tions, and Mech- anical Compon- ents Control panel (-) current socket Connect the grounding cable here TIG Multi Connector For connecting an external control system (+) current socket For connecting the power cable to the wirefeeder Carry strap Cable strap To hold the mains cable and the welding power-leads... -
Page 23: Control Panel
Control Panel Set value display displays the currently selected amperage The symbol is always lit; the other indicators have no func- tion Setup button 1 For accessing the Setup menu Display Setup button 2 For accessing the Setup menu Selection dial To change the amperage | To navigate through the Setup menu Status indicators Used to indicate the different operating statuses of the power... -
Page 24: Connecting And Starting The Power Source
Connecting and Starting the Power Source Configuring the Connect the TIG Multi Connector TIG Multi Con- plug to the robot control unit and nector Plug connect pins B (pink cable) and E (green cable) with a floating switch the pins B and E are needed to start the pre-heating process Installing the Power Source... -
Page 25: Starting Pre-Heating
* Correctly connect the cable to the wirefeeder Starting Pre- Set the desired amperage using the selection dial on the control panel of the heating power source Activate pre-heating through a signal on the robot control unit (close the switch between pin B and pin E on the TIG Multi Connector plug - also see Configuring the TIG Multi Connector Plug, on page 24) NOTE! -
Page 26: Setup Menu
Setup Menu Accessing the Press both buttons at the same time Setup Menu The code of the first parameter from the Setup menu is dis- played on the control panel Adjusting Para- Turn the selection dial to select the desired parameter meters Press the selection dial to display the set value of the parameter Press the selection dial to change the value... -
Page 27: Setup Menu Parameters
Setup Menu Para- Description Range Unit Parameters meter Factory setting (FACtory) Here the device can be reset to its factory set- tings Cancel reset Reset the parameters for the set welding process to the factory settings Reset the parameters for all welding pro- cesses to the factory settings Confirm resetting of the selected value to the factory setting by press-... -
Page 28: Setup Menu 2Nd Level
Setup Menu 2nd Level Setup Menu 2nd Paramet- Description Range Unit Level Paramet- Software version The complete version number of the cur- rent software is divided across several displays and can be viewed by turning the selection dial Automatic shutdown (time Shut down) 5 - 60 Minutes If the device is not used or operated... - Page 29 Paramet- Description Range Unit Operating duration (System on time) Hours, minutes For displaying the operating duration (count begins as soon as the device is seconds switched on) The complete operating duration is di- vided across several displays and can be accessed by turning the selection dial Pre-heating duration (System Active Hours,...
-
Page 30: Service, Maintenance And Disposal
Service, maintenance and disposal Safety WARNING! Danger from incorrect operation and work that is not carried out properly. This can result in serious personal injury and damage to property. ▶ All the work and functions described in this document must only be carried out by technically trained and qualified personnel. -
Page 31: Every Two Months
Every Two Clean air filter: Months Disposal Disposal must only be carried out in accordance with the section of the same name in the "Safety rules" chapter. -
Page 32: Fault Correction
Fault Correction Safety WARNING! Danger from incorrect operation and work that is not carried out properly. This can result in serious personal injury and damage to property. ▶ All the work and functions described in this document must only be carried out by technically trained and qualified personnel. -
Page 33: Service Messages
Service mes- If "E" and a two-digit error code (e.g., "E02") appears on the display and the fault sages indication lights up, this is an internal service code for the power source. Example: There can be multiple error codes. These appear by turning the adjustment wheel. -
Page 34: No Function
Cause: Grid voltage exceeds admissible limits Remedy: Immediately pull out the mains plug and ensure that the power source is being operated at the correct grid voltage E36 E41 E45 Cause: Grid voltage is outside of the tolerance or grid output is insufficient for the connected device(s) Remedy: Ensure that the power source is being operated at the correct grid... - Page 35 No current for pre-heating the wire electrode The device is switched on, overtemperature indication lights up Cause: Duty cycle exceeded - device overloaded - fan running Remedy: Observe duty cycle Cause: Thermal automatic circuit breaker has shut down the device Remedy: Wait for device to cool down (do not switch off the device - the fan will cool the device);...
-
Page 36: Average Consumption Values During Welding
Average consumption values during welding Average wire Average wire electrode consumption at a wire speed of 5 m/min electrode con- 1.0 mm wire 1.2 mm wire 1.6 mm wire sumption during electrode dia- electrode dia- electrode dia- MIG/MAG weld- meter meter meter Steel wire electrode... -
Page 37: Technical Data
Technical data Explanation of The duty cycle (ED) is the period of a ten minute cycle in which the device may be the term duty operated at the stated power without overheating. cycle NOTE! The ED values cited on the rating plate relate to an ambient temperature of 40 °C. -
Page 38: Technical Data
230 V Overview with Overview with critical raw materials: critical raw ma- An overview of which critical raw materials are contained in this device can be terials, year of found at the following Internet address. production of www.fronius.com/en/about-fronius/sustainability. the device... - Page 39 To calculate the year of production of the device: Each device is provided with a serial number The serial number consists of 8 digits - for example 28020099 The first two digits give the number from which the year of production of the device can be calculated This figure minus 11 gives the year of production For example: Serial number = 28020065, calculation of the year of pro-...
- Page 40 SPAREPARTS ONLINE Fronius International GmbH Froniusstraße 1 4643 Pettenbach Austria contact@fronius.com www.fronius.com Under www.fronius.com/contact you will find the adresses of all Fronius Sales & Service Partners and locations.
