ASSEMBLY INSTRUCTIONS
RiverRidge
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
®

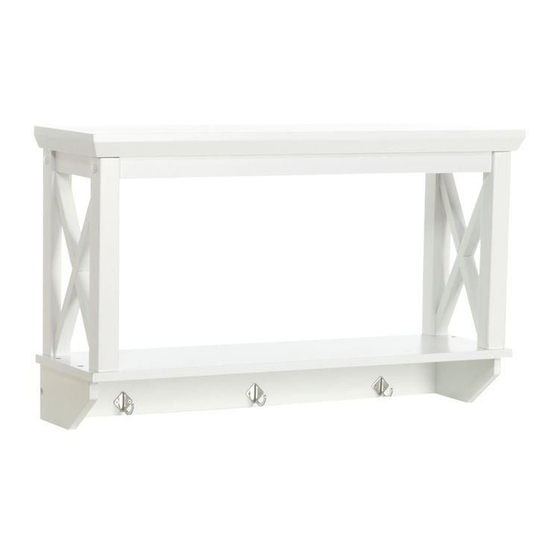

X-Frame Wall Shelf with Hooks
ITEM #: 06-005
ITEM #: 06-006
ADULT ASSEMBLY REQUIRED
SEE FULL WARNING ON PAGE 2
White
Espresso
Advertisement
Related Manuals for RiverRidge 06-005
Summary of Contents for RiverRidge 06-005
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge ® X-Frame Wall Shelf with Hooks ITEM #: 06-005 White ITEM #: 06-006 Espresso ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 50 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS OR A TOTAL OF 50 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 25 POUNDS PER SHELF OR 50 POUNDS TOTAL WEIGHT, THE SHELF MAY FALL FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board 2PCS Side Frame Bottom Board Back Board Left Side Panel Right Side Panel Back Cross Bar Front Cross Bar... - Page 4 PARTS LIST PARTS DESCRIPTION Wood Dowel 4PCS Screw (5x45mm) 8PCS 12PCS Screw (4x35mm) Screw (3x12mm) 6PCS Hook 3PCS Plastic Cap 4PCS 2PCS Screw (4x60mm) Plastic Anchor 2PCS Allen Wrench Wall Mounting Paper Template TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call...
- Page 5 STEP 1 1. Place top board (1) upside down on soft padded surface. 2. Attach back cross bar (7) to top board (1) by inserting 3 screws (C) through holes on back cross bar (7) and tighten to top board (1). 3.
- Page 6 STEP 3 1. Attach other side frame (2) to top board (1) by inserting 2 screws (B) through holes on side frame (2), then tighten to back cross bar (7) and front cross bar (8) using Allen wrench (I). STEP 4 1.
- Page 7 STEP 5 1. Attach 3 hooks (E) to back board (4) by inserting 6 screws (D) through holes on hooks (E), then tighten to back board (4). 2. Insert 2 wood dowels (A) into dowel holes on left side panel (5) and attach left side panel (5) to back board (4) by inserting wood dowels (A) into dowel holes on back board (4).
- Page 8 STEP 7 1. Press 4 plastic caps (F) into screw holes on both side frames (2). *Tip: If added pressure is needed to keep plastic caps in place – cover caps with a piece of paper and tap lightly with hammer to secure cap. STEP 8 Option #1: Securing to Drywall Using wall mounting paper template to determine position, screw 2 plastic anchors (H) into...
-
Page 9: Care Instructions
ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions. CARE INSTRUCTIONS: Wipe clean with a water dampened cloth. - Page 10 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
