SolaX Power SOLAX BOX Quick Installation Manual page 2

IV

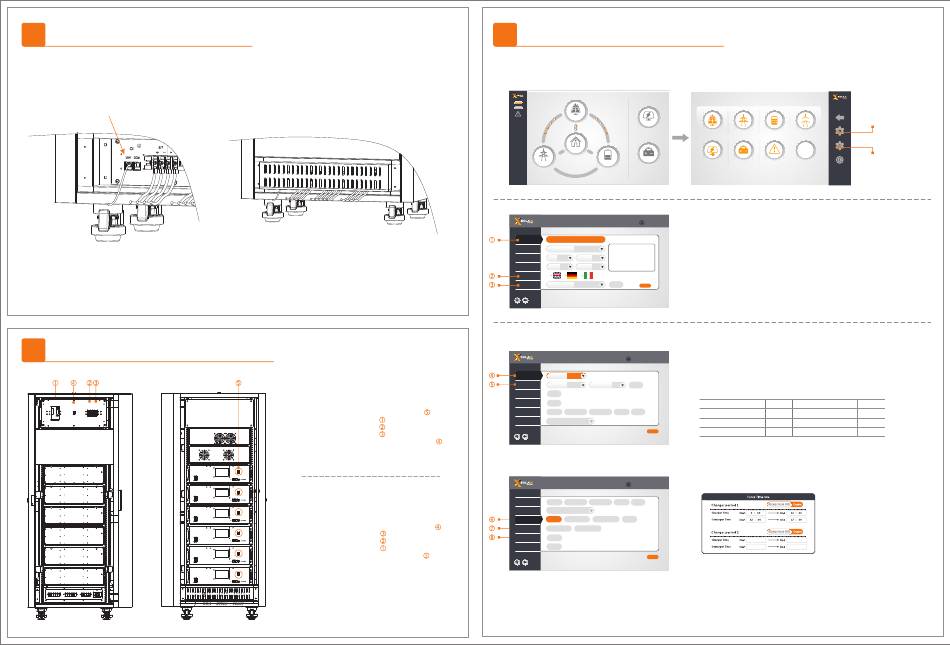

LAN Port Installation & Overview
Step1: Insert one side of the cable into the LAN port, and the other side of the cable into the router or computer.
Step2: Install the cover plate.
LAN port
V
SOLAX BOX Power ON/OFF Procedure
DC
EPS AC
ON
OFF
front view back view
SOLAX BOX boot steps:
Step1: Turn on battery switch.( back door )
Step2: Turn on DC breaker.
Step3: Turn on EPS breaker.
Step4: Turn on AC breaker.
Step5: Turn on On/Off switch.( On control box)
SOLAX BOX power off steps:
Step1: Turn off On/Off switch.( On control box)
Step2: Turn off AC breaker.
Step3: Turn off EPS breaker.
Step4: Turn off DC breaker.
Step5: Turn off battery switch.( back door )
VI
Programming Guide
Enter setting interface
Step1. Press any position on the Home Page to enter Main Interface.
Step2. Press setting symbols to enter Basic Setting Interface and Advaned Setting Interface.
PV
On
EPS
00KW
Fault
00KW·H
PV Daily Generation
00KW
Load Power
00KW·H
00KW 00KW
Battery Yield
Feed In Power Battery Power
Home Page
Do basic setting
Setting
Date Time 12:00 05-30-2015
IP Address
Ethernet Mode Mode Manual
000.000.000.255
Subnet mask
EPS Mute Mute No Frequency Frequency 60Hz
000.000.000.255
Gateway
Reset Energy Energy No Error Logs Error Logs No 000.000.000.255
Language
Wi-Fi Wi-Fi01 Wi-Fi01 Yes Setting
Save
Basic Setting Interface
Do advanced setting
Advanced Setting
PV Connection Connection Connection Comm
Charger Battery Type Battery Type Lithuim Battery Awaken Battery Awaken Yes Setting
Grid Value Setting
Power Limit Setting
Power Factor Off Under Excited Over Excited Curve Setting
Safety
German: VDE0126
Save
Advanced Setting Interface
Advanced Setting
Power Factor Under Excited Setting
Off Over Excited Curve
Safety German: VDE0126
Settings
Woke Mode Self Use Force Time Use Romote Control
Export Control User Value Factory Value
EPE Setting Settings
New Password Settings
Save
Advanced Setting Interface
to enter
Basic Setting Interface
Battery
PV Grid EPS
i
to enter
Inverter Yield Battery Yield Error About
Advanced Setting Interface
Main Interface
1. Set date time.
2. Choose language.
3. Set WIFI.
Step1: Choose "Yes".
Step2: Click " Seting " to enter setting page.
Step3: Choose a home-AP with stronger strength, and type in password.
4. Set mode for PV input.
"Comm" ,means single MPP tracking, 2 MPPT working together.
"Multi" means multi-MPP tracking, 2 MPPT working independently.
5. Set battery type.
Set battery awaken.
Set battery parameters.
20 %
Min capacity Charge Float Voltage
47.0
Charge cut voltage 53.5 V Charge Max Current
50.0
Discharge cut voltage 47.0 V
Discharge Max Current 50.0
Charge Absorp Voltage 54.0 V
6. Set work mode.
Self Use:
The priority for PV generated power will be: local load > battery>public grid.
Force Time Use:
Battery will be charged or discharged in setting time.
It can be set that whether allows to charge from grid or not.
7. Set export control value.
SOlAX BOX can control energy exported to the grid.
8. Set battery backup discharge voltage.
Battery backup discharge voltage must be lower than discharge cut voltage.
V
A
A
614.00100.00
