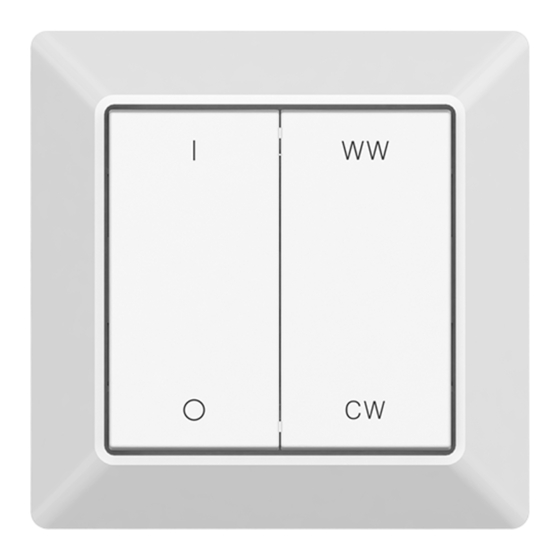

Battery Powered CCT Zigbee GP Switch
Important: Read All Instructions Prior to Installation
Function introduction
Short press to turn on paired
devices,press and hold to
increase brightness smoothly
Short press to turn off paired
devices,press and hold to
decrease brightness smoothly
With Plastic Frame
14.7 mm
The remote control can be fixed on the wall with 3M glue or screw.
Short press to increase WW
and decrease CW by
10%,press and hold to
WW
increase WW and decrease
CW smoothly
Short press to increase CW
and decrease WW by
CW
10%,press and hold to
increase CW and decrease
WW smoothly
Front side
80.5 mm
Back side
70100054
With Glass Frame
10.10 mm
Product Data
Switch Type
Transmission Range
Radio Frequency
Power Supply
Buttons
Dimensions
Operating Temperature
Working Humidity
Waterproof Grade
Warranty
Product Description
The battery powered Zigbee GP switch is a wireless transmitter that communicates with a wide variety of
Zigbee compatible systems. The switch uses a CR2430 battery that powers a built-in transmitter. This
transmitter sends wireless radio signals that are used to remotely control a compatible system.
Compatible With
Zigbee Green Power (included in Zigbee 3.0)
Safety & Warnings
▪ This device contains a button lithium battery that shall be stored and disposed properly
▪ DO NOT expose the device to moisture.
WW
CW
86mm
The remote control can be fixed on the wall with 3M glue or screw.
CCT control
10-30m (typical)
2.4GHz (Zigbee channels 11-26)
3V(1xCR2430 battery)
80.5x80.5x14.7mm / 86x86x14mm
-20 ℃ ~ +45 ℃
10% ~ 95% RH non-condensing
4
IP20
5 years
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunricher SR-ZGP2801K4-CCT-E
Summary of Contents for Sunricher SR-ZGP2801K4-CCT-E
- Page 1 Battery Powered CCT Zigbee GP Switch 70100054 With Glass Frame 10.10 mm Important: Read All Instructions Prior to Installation Function introduction Short press to increase WW and decrease CW by Short press to turn on paired 10%,press and hold to devices,press and hold to increase WW and decrease increase brightness smoothly...
- Page 2 Operations Step 3: Cycle through the sixteen Zigbee channels A radio signal needs be sent from the switch to the compatible light device on the correct Zigbee channel, the light device uses one of the sixteen possible channels, automatically set the device. Using the switch, a signal will be sent on each Pairing GP Switch to a Compatible Zigbee Light Device(Easy Mode): channel until the channel used by the light device is found.
- Page 3 Exit learning mode on the switch that the light device paired to by pressing any other button after pairing deleted. Just ignore step 3. If there is no indication, please continue executing step 3. Step 3: Cycle through the sixteen Zigbee channels If there is no indication on the light device to indicate that pairing is deleted, the signal sent by the switch is not on the correct channel, we need to change the switch’s channel.
