MultiVOIP MVPFXS-8/16/24 Cabling Guide
•
Ensure that the MultiVOIP is properly connected to earth ground via a
grounded power cord. If a power strip is used, ensure that the power strip
provides adequate grounding of the attached apparatus.
•
Ensure that the mains supply circuit is capable of handling the load of the
MultiVOIP. Refer to the power label on the equipment for load requirements.
•
Maximum ambient temperature for the MultiVOIP is 60 degrees Celsius
(140° F) at 20-90%s non-condensing relative humidity.
•
This equipment should only be installed by properly qualified service personnel.
•
Only connect like circuits. In other words, connect SELV (Secondary Extra
Low Voltage) circuits to SELV circuits and TN (Telecommunications
Network) circuits to TN circuits.
•
To reduce the risk of shock, all access doors should be closed during
normal operation of the equipment.

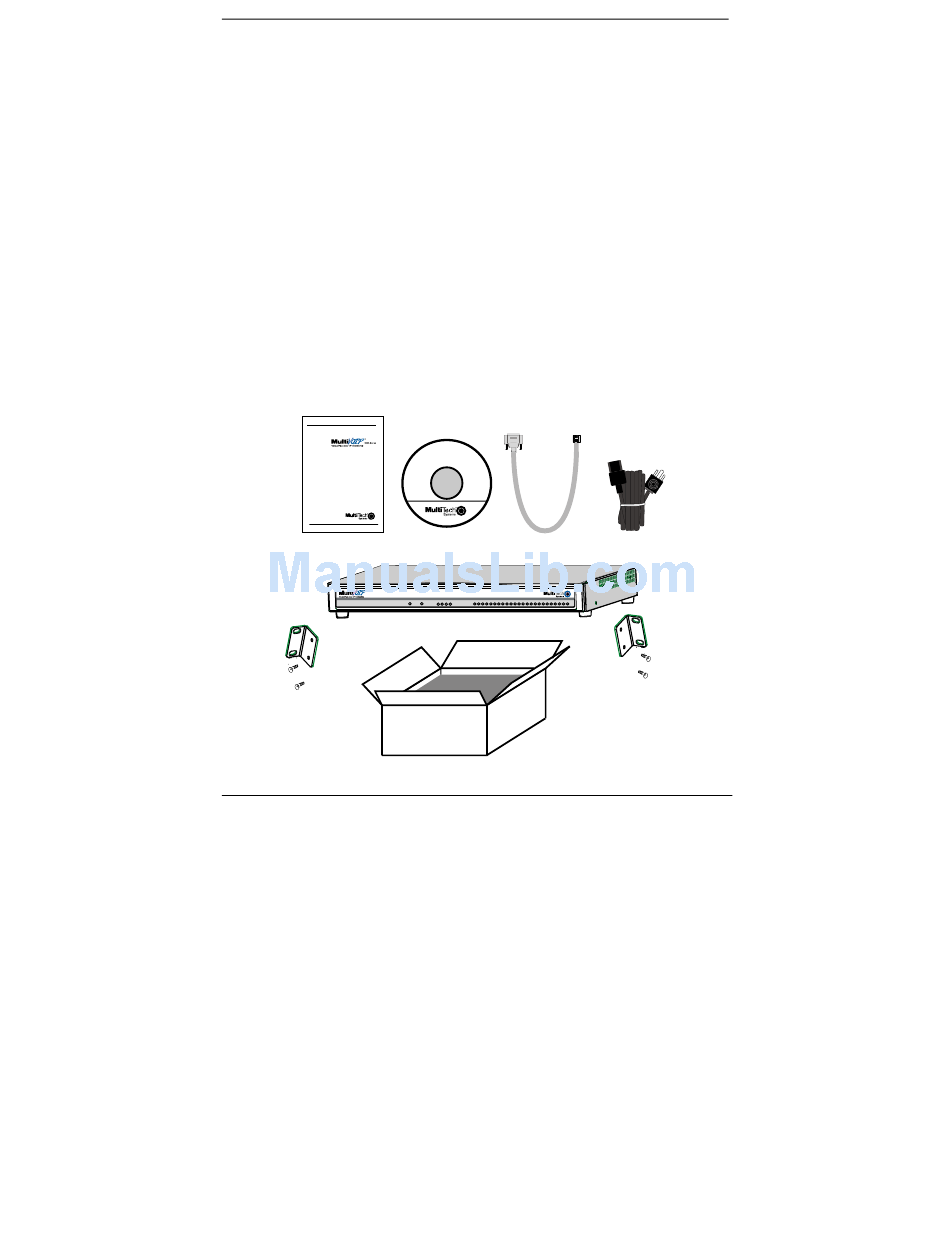

MultiVOIP Package Contents
•
One MultiVOIP MVPFXS unit
•
One power cord
•
One Console Cable (RJ45 to DB9 connectors)
•
Two rack mount brackets and four mounting screws
•
One printed Cabling Guide
•
One MultiVOIP CD containing software and user documentation.
Cabling
Guide
4
MultiVOIP
TM
Power
Boot
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
WA N
LNK
FDX
S PD
COL
Multi-Tech Systems, Inc.
