Summary of Contents for Enovation Controls MURPHY PowerView PV380-R3

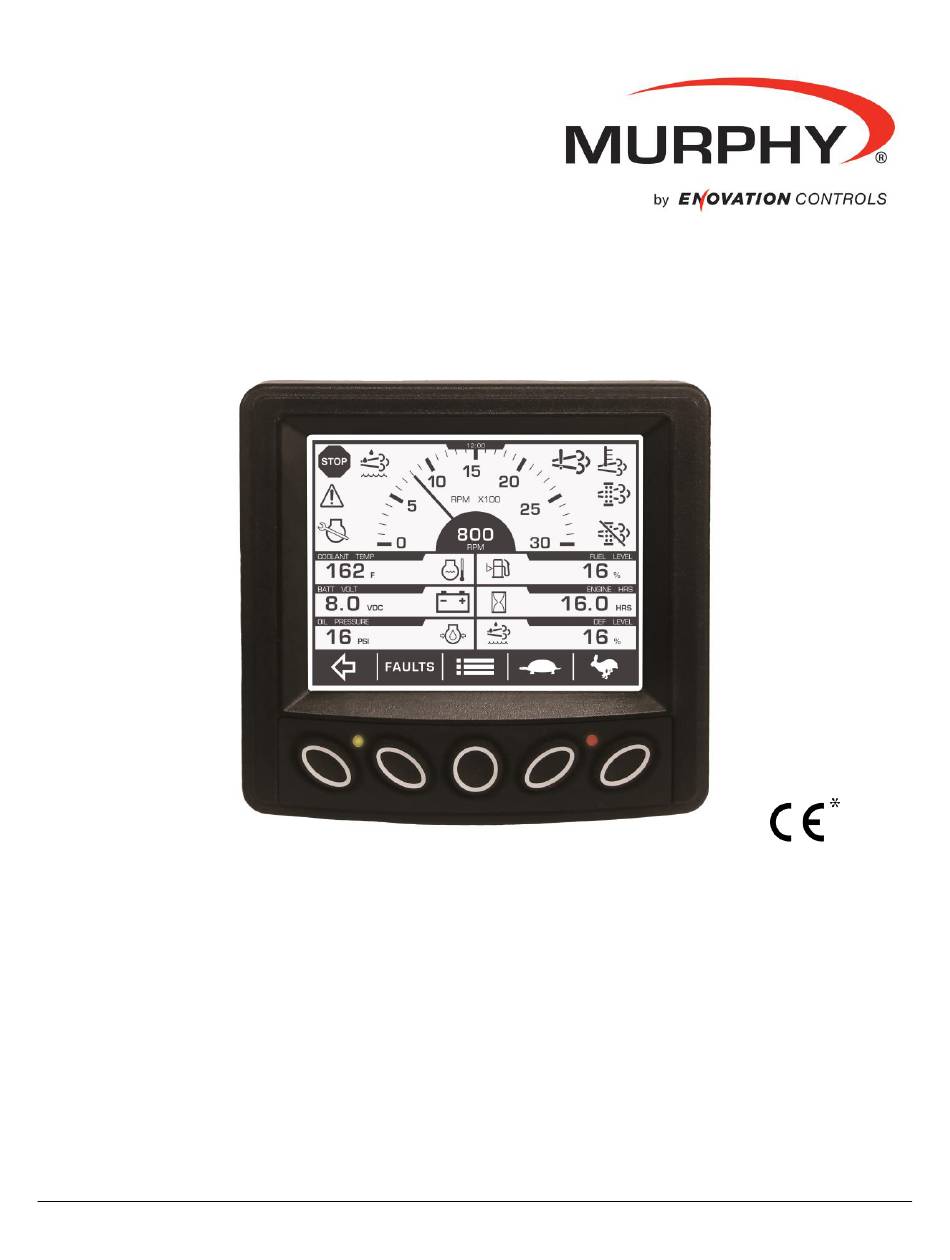

- Page 1 ® PowerView PV380-R3 Murphy Standard Configuration Operations Manual Products covered in this document comply with European Council electromagnetic compatibility directive 2004/108/EC and electrical safety directive 2006/95/EC. Section 78 00-02-1223 (web only) 2023-01-26 - 1 -...
-
Page 2: Table Of Contents
To consistently bring you the highest quality, full-featured products, we reserve the right to change our specifications and designs at any time. The latest version of this manual can be found at www.enovationcontrols.com. Table of Contents Introduction ..........................3 Engine and Transmission Parameters ................. 3 Navigation and Keypad Functions ................ -
Page 3: Introduction
Introduction ® Congratulations on purchasing the PowerView Model PV380 R3. This advanced tool provides monitoring of Tier 4/Euro Stage 4 compliant electronic engines. The PV380 monitors multiple J1939 parameters and provides basic engine alarm/shut-down information. This manual was developed to help you become familiar with the PV380 display, identify navigation basics and recognize useful options and features. - Page 4 Function Key 1 Alternates between parameter screen sets or moves the cursor one position to the left Moves highlight up when in certain Menu selections Decreases the number when in various screens Function Key 2 FAULTS Displays Diagnostic Messages (Faults) and Stored Codes Moves highlight down when in certain Menu selections Increases the number when various screens Function...
- Page 5 Function Key 4 Decreases the Throttle set point STORED Displays the Stored Codes when in Diagnostic Messages CODES Decreases various settings Moves the cursor one slot at a time to the right Function Key 5 Increases the Throttle set point ACTIVE Displays the Active Faults FAULTS...
-
Page 6: First-Time Startup
First-Time Startup When power is applied to the PV380, the Warning and Shutdown lights illuminate and the Murphy logo displays. On electronic engines only, if a preheat message is being actively broadcast from the Engine Control Unit (ECU), a Wait to Start symbol displays below the Murphy logo as shown in the next image. - Page 7 Main gauge screen (Electronic) Second gauge screen (Electronic) Main gauge screen (Mechanical) Second gauge screen (Mechanical) Section 78 00-02-1223 (web only) 2023-01-26 - 7 -...
-
Page 8: Parameter Gauge Settings
Parameter Gauge Settings 1. Alert and Warning Icon area: Up to eight symbols can be shown at one time in the icon area to represent warnings, Tier 4 status and service indicators. The most important symbol will be shown in the upper left area. The following symbols can be shown in this area: Icon(s) Function(s) -
Page 9: Adjusting Menu Selections
2. Tachometer Area: Displays the engine speed gauge with an option to choose a 3000, 4000 or 6000 RPM dial (See Display Setup on page 18 for more information). 3. Parameter Area: The following parameters are the electronic engine defaults until other parameters are selected from the menu. - Page 10 Language Follow these steps to change the Language: 1. Press to display the Menu. 2. Arrow to USER SETTINGS and then press enter, then arrow to LANGUAGE. 3. Press to cycle through the available languages (English, French, German, Spanish and Italian). 4.
-
Page 11: Service Reminders
Date Follow these steps to adjust the Date: 1. Press to display the Menu. 2. Arrow to USER SETTINGS. Press and then arrow to DATE. 3. Press to adjust the day. 4. Press , and the cursor will move to the month. 5. -
Page 12: Regen
Regen Follow these steps to initiate a Regen: 1. Press to display the Menu. 2. Press to Regen. Press to enter. 3. Press once more on Request DPF Regen. 4. In answer to the question “Request Diesel Particulate Filter Regen?” use Key 3 for Yes and Key 5 for No. Follow these steps to change the Regen mode: 1. -
Page 13: Set Points
Warnings and the specified limits. Software Version To display the software version information (useful for Enovation Controls’ personnel to identify which configuration the customer is using), follow these steps: Press to display the Menu. - Page 14 Engine Setup Use the following to configure engine settings. Highlight Engine Type and press to toggle between Electronic or Mechanical engine types. NOTE: Selecting Electronic engine type will enable the Throttle menu to appear in System Settings. The Throttle menu is disabled for Mechanical engine type. See the table below to configure remaining settings Engine Configurable Settings...
- Page 15 Throttle Setup Use the following to configure throttle settings. System Specific Parameters Available Setting • Throttle (Default: enabled) Throttle o Throttle Type ▪ Display (Default) ▪ Switch (Resistive Input 1 will be Throttle Switch UP, Resistive Input 3 will be Throttle Switch DOWN) ▪...
- Page 16 Output 2 Follow these steps to change the Output 2: Press to display the Menu. Press to System Settings. Press to enter. Utilize keys 1, 2 and 3 to input the password (3482) and key 5 to enter. Arrow to highlight Output 2. Press to choose Disabled, Comm Alarm or Air Shutoff.
- Page 17 To move to the next portion of the screen to customize, press . The check mark will move. Repeat steps 8 and 9 until all gauges have been customized. Press to return to the Menu. Highlight Engine Speed Dial and press to alternate between 3000, 4000 and 6000 RPM.
- Page 18 Press to be returned to the System Settings menu. Advanced Settings Follow these steps to enter and review the Advanced Settings: Press to display the Menu. Press to System Settings. Press to enter. Utilize keys 1, 2 and 3 to input the password (3482) and to enter.
-
Page 19: Faults
Available Options 0 – 1000 mS 3349 (TSC1 1 – 750 mS Transmission 2 – 500 mS Rate) 3 – 250 mS 4 – 100 mS 5 – 50 mS 6 – 20 mS 7 – 10 mS To configure the JD Lockout, repeat steps 1 – 5 and Press to highlight the JD Lockout selection then press to Enable/Disable. -
Page 20: Diagnostics And Service
Diagnostics and Service LED Indicators The PV380 features amber (Warning) and red (Shutdown) colored LEDs on the front keypad. These are illuminated according to the J1939 error definition for alarms and shut-down conditions. Indicator Lamps On each gauge screen and menu (where space allows), the following indicator lamps shall be shown: Icon Description... -
Page 21: Supported Pgns
Supported PGNs The following table of parameters shall be available for selections based on being actively broadcast on the CAN bus: Description Icon Accelerator Pedal Position 1 61443 ACCEL PED1 Percent Load at Current RPM 61443 Actual Engine Torque 61444 Engine Speed 61444 Trip Distance... - Page 22 Description Icon Wheel Based Vehicle Speed 65265 VEH SPD Fuel Rate 65266 FUEL RATE Instantaneous Fuel Economy 65266 FUEL ECON Average Fuel Economy 65266 AVG ECON Barometric Pressure 65269 BARO PRES Air Inlet Temperature 65269 Boost Pressure 65270 BST PRES Intake Temperature 65270 Air Filter Dif.
- Page 23 Description Icon Input Shaft Speed 61442 IN SFT SPD 61442 Torque Converter Lockup TORQ LOCK 65241 Auxiliary IO Status 1 AUX IO 1 61443 Accelerator Pedal Switch PEDAL SWT 65247 Engine Desired Op Speed DES ENG SP 65266 Throttle Position THROTTLE 65270 Air Inlet Pressure...
-
Page 24: Specifications
Specifications Electrical 3.8” (9.65 cm) QVGA (320x240 pixels); monochrome transflective Display LCD with heater, MTFB 50,000 hours Resolution QVGA, 320 x 240 pixels Backlighting White LED (1) CAN 2.0B (J1939 protocol and proprietary messaging), (1) RS- Communications 485 serial (Modbus) Protocols J1939, NMEA 2000 Connection...
