Umbrella Holder - Caddytek EZ-Fold User Manual

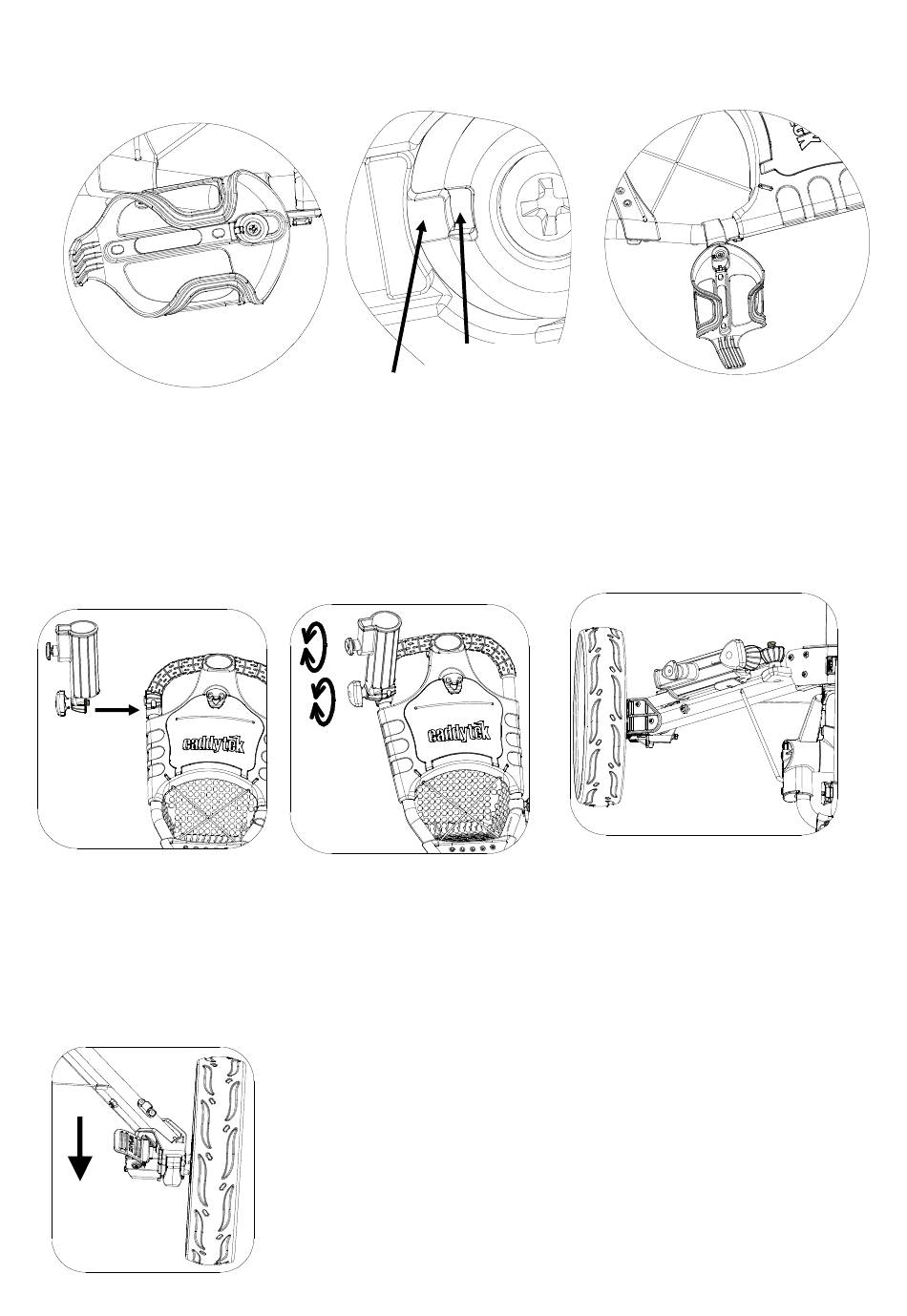

Install the drink holder
Fig. 12
When installing the drink holder, align the smallest part of the slot on
the holder with the fixed blocks. Then pull horizontally to fit the holder
on the base.

Umbrella Holder

Fig. 15
To put in use:
Simply attach the umbrella holder
onto the cart as in fig. 15/16
Use the brake
Fig. 18
Slot on holder
Fixed block on base notch
Fig. 16
Press the brake pedal to
brake and push again to
release as Fig. 18
Fig. 13
To store:
Attach the umbrella holder to
the storage rack on the right
leg frame as in Fig. 17.
4
Fig. 14
Fig. 17
