Caddytek EZ-Fold User Manual page 4

Package contents:
1. The main frame of the cart with the front wheel
2. Two main wheels
3. Umbrella holder
4. Drink holder
5. This user manual
6. Tools for adjustment
In case any of above item is missing or damaged, please call 909-895-6478 or email
service@caddytek.com

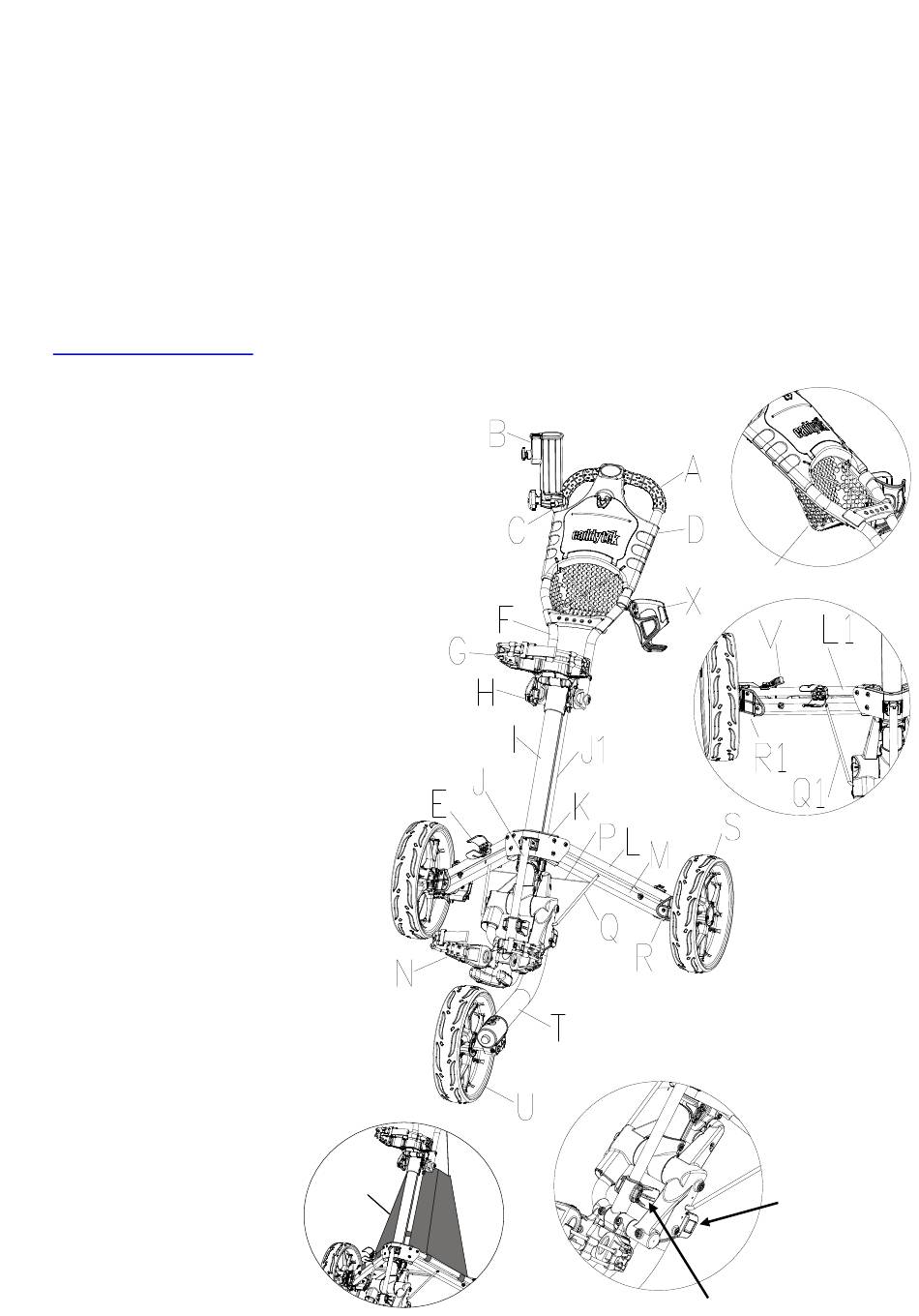

Parts identification:
A: PVC handle grip
B: Umbrella holder
C. Umbrella holder base
D: Scorecard holder assembly
E: Umbrella holder storage rack
F: Handle frame
G: Upper bag holder bracket assembly
H: Handle height adjusting knob assembly
I: Main frame
J: Front connection Rod
J1: Main connection Rod
K: Leg frame bracket
L: 2 holes right leg frame
L1: 2 holes left leg frame
M: 4 holes right leg frame
N: Lower bag holder bracket assembly
O: Optional seat installation slot
P: Supporting cable
Q: Right stabilization bar
Q1: Left stabilization bar
R: Right wheel lock mechanism
R1: Left wheel lock mechanism
S: Rear wheel assembly
T: Front wheel fork assembly
U: Front wheel assembly
V: Foot brake assembly
W: Basket with cooler
X: Drink holder
Handle mesh net
Y:
Main frame folding holder
Z:
