Cabling
Cabling your ProxyServer
Cabling your ProxyServer involves making the proper Power,
Command Port, and DSU connections, and optionally, the
RS232/V.35 connection. Figure 3 shows the back panel
connectors and the associated cable connections. The table
that follows details the procedures for connecting the cables to
your ProxyServer.
Power Connection
DCE Connection
DDS WAN Connection
PC Connection
Ethernet Connection

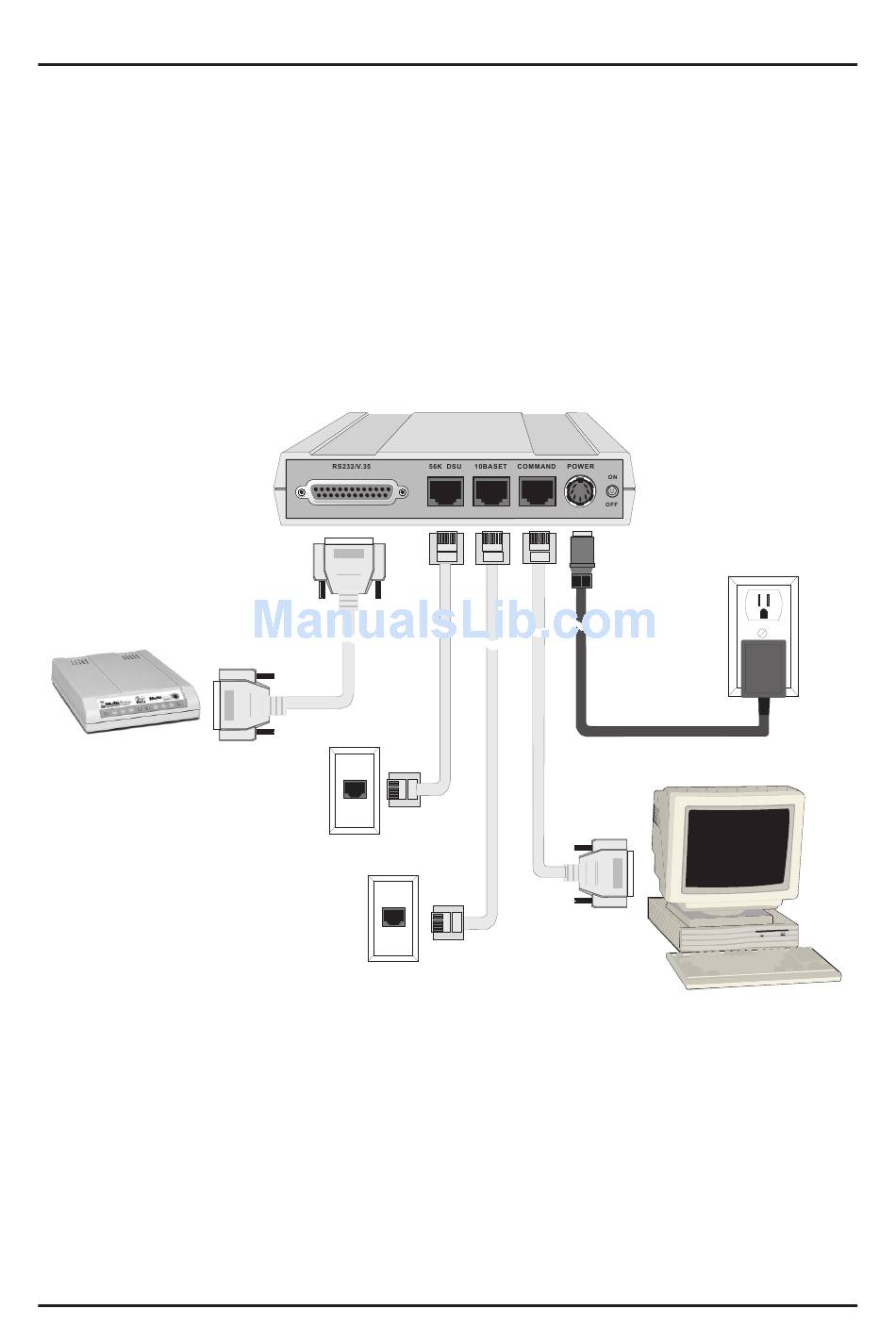

Figure 3. Cable Connections
9
