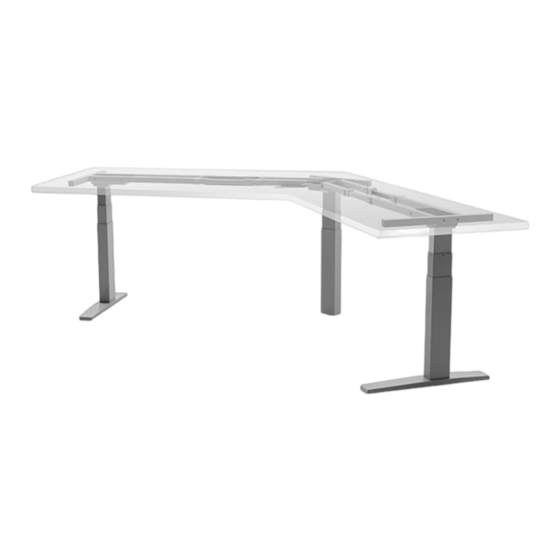

ESI VICTORY ELECTRIC-3-LEG Assembly Manual

ASSEMBLY GUIDE
1. LAY (A) LEGS, (B&C) ADJUSTABLE CROSS CHANNELS, (G&E)
FEET AND (D) TOP SUPPORTS ON THE FLOOR.
2. ATTACH (A) LEG COLUMNS TO (B&C) CROSS CHANNELS AND
(D) TOP SUPPORTS USING (K) M8 SCREWS (X12). DO NOT
TIGHTEN SCREWS COMPLETELY UNTIL ALL PIECES HAVE BEEN
ATTACHED TOGETHER.
3. ATTACH THE (F) FOOT PLATES USING (N) M6 SCREWS (X8) AND
(G&E) FEET USING (L) M6 SCREWS (X8) BE SURE THE LONGER SIDE
OF THE FOOT GOES TOWARDS THE FRONT OF THE TABLE.
TIGHTEN SCREWS COMPLETELY.
4. ADJUST (B&C) CROSS CHANNELS TO APPROPRIATE LENGTH AND TIGHTEN SECURELY
USING M10 (X12) SCREWS PROVIDED WITH CROSS CHANNELS.
5. ATTACH WORKSURFACE USING APPROPRIATE LENGTH SELF-TAPPING SCREWS. BE SURE
SCREWS ARE CORRECT LENGTH SO AS NOT TO PIERCE TOP OF WORKSURFACE.
6. ATTACH (J) KEYPAD/SWITCH AND (K) CONTROL UNIT UNDER WORKSURFACE IN
PREFERRED LOCATIONS USING (M) M5 SCREWS.
7. ATTACH (H) LEG CABLES.
8. TIGHTEN ALL SCREWS SECURELY.
9. MANAGE CABLES APPROPRIATELY AND IF NECESSARY, ADJUST LEVELING GLIDES ON
TABLE FEET TO LEVEL THE WORKSURFACE.
10. INITIALIZE LEGS: AFTER TABLE BASE IS FULLY ASSEMBLED AND
POWER CORD HAS BEEN PLUGGED IN, HOLD DOWN BOTH UP AND
DOWN BUTTONS ON KEYPAD/SWITCH FOR 5-10 SECONDS OR UNTIL
BOTH LEGS ARE IN THE LOWEST POSITION.
ZERO-SET BEFORE USE!
VICTORY ELECTRIC - 3-LEG
TABLE BASE MUST BE
ASSEMBLY GUIDE
1
2 & 3
4
VICTORY ELECTRIC - 3-LEG
5
