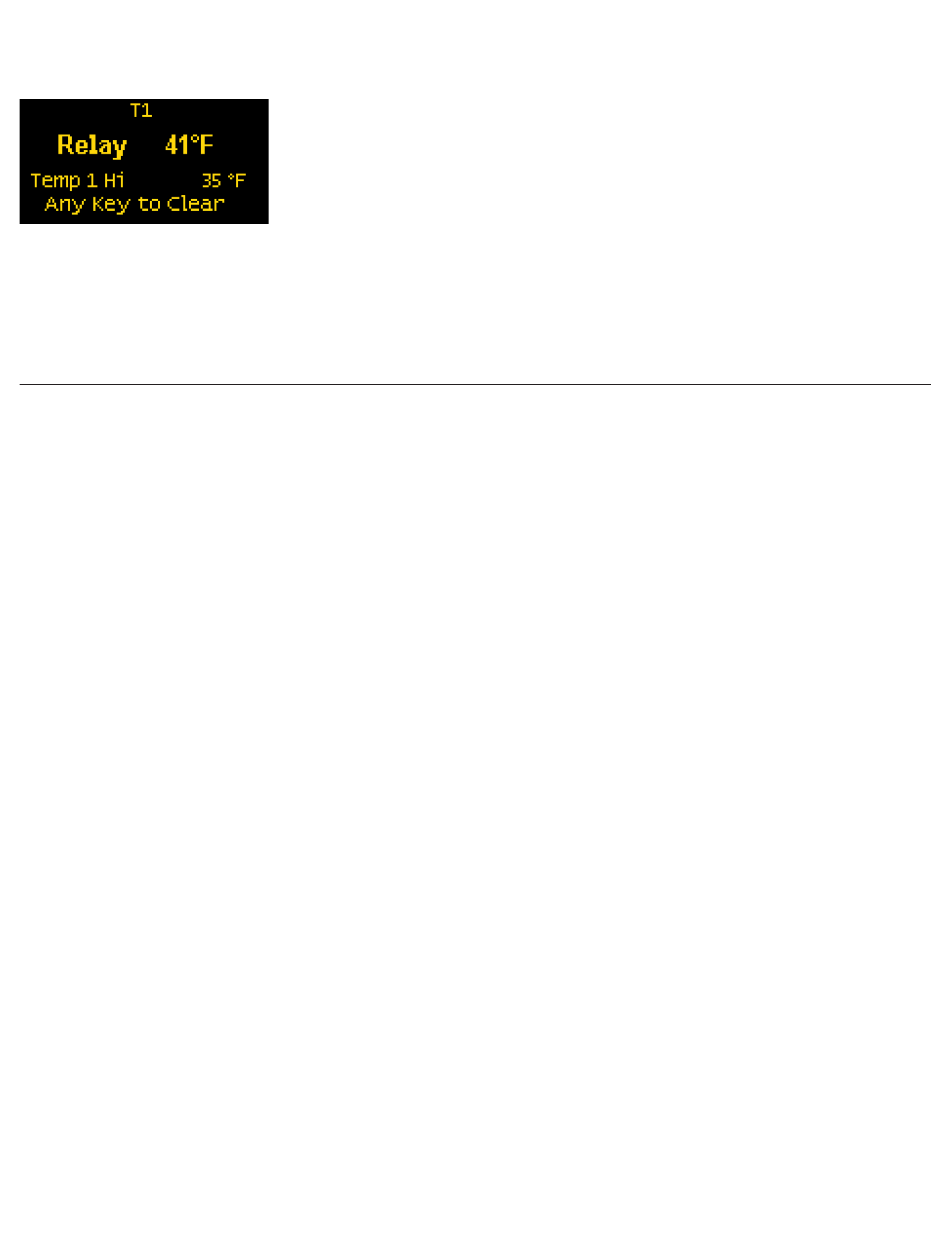

Clearing Relay Notification
If the Notification option is set to ON then any time the relay is opened (Normally Off) or closed (Normally On). A message will be displayed on the main
screen. Pressing a key will clear this notification. If Silence is set to ON then the relay will be opened (Normally Off) or closed (Normally On).
Viewing Relay Status
For any active alarm, the parameter will flash if it is displayed. To view a complete list of active alarms, press Menu>Setup>Relay Setup. Any active
relay will flash.

DISPLAY SETUP

The meter display settings can be accessed from the Display Setup menu. From the setup screen, scroll to Display Setup and press the Select button.
The different display settings are described below. To change a setting, press Enter and press the LEFT ← ← or RIGHT → → arrow buttons to view the
available setting options. Press Enter to save the setting. Press Cancel to cancel a change.
Brightness
This setting is for adjusting the brightness of the display. The value is a percentage where 0% is dimmest and 100% is brightest.
Sleep Timer
Following a certain period of inactivity, the meter will enter a sleep mode and will turn off the display. Any button may be pressed to exit the sleep mode
and restore the display. The Sleep Timer sets the number of minutes from 0 to 600 before entering sleep mode. This feature will be disabled by changing
the setting to OFF.
Dim Timer
In addition to sleep mode, the meter can also dim its display after a period of inactivity. The duration of delay in minutes from 0 to 600 can be adjusted
with this setting. This feature will be disabled by changing the setting to OFF. By continuously pressing the LEFT ← ← button the meter can be placed in
AUTO dim mode. In this mode the meter will automatically dim after two minutes when the ambient light is low (night mode). When the light comes back
on, the meter will revert to its normal brightness.
Units
The temperature meter can display temperatures in °F or °C. Press the LEFT ← ← or RIGHT → → arrow buttons to toggle to toggle between the °F or °C.
Display Min/Max
Minimum and Maximum arrows are only displayed on the vertical bar summary screen. Minimum and Maximum values are always displayed on the
individual temperature screens.
Demo Mode
With Demo Mode ON, the meter displays factory programmed values. Changing the setting to OFF returns the meter to display actual measured values.
This mode is typically used for commercial or promotional purposes. Note: Alarms and Relay settings will still respond to the actual settings and not the
Demo settings. To enter Demo Mode, press Menu>Setup>Display Setup>Demo Mode. Press the LEFT ← ← or RIGHT → → arrow buttons to toggle Demo
Mode ON or OF
