M2 OLED Temperature Monitor Instructions
PN 1841

Installation Checklist

• Check for components included
• Read Warning and Cautions
• Read page 3 for mounting instructions
• Read System Overview, Mounting Considerations, Detailed Wiring,
and Sensing Description
• Follow Initial System Setup instructions
• Configure Displays
• Configure Alarms
• Configure Relays

Specifications

Display Size
55mm x 28mm
Power Supply
7V–70V DC
Power Consumption
0.3W–1.0W*
Sensors
Blue Sea Systems PN (1821)
Sensor Range
-40°F – 250°F (-40°C –120°C)
Sensor Resolution
1%
Temp Alarms
80dB
External Relay
0.5A DC
* Variable with voltage, display intensity, and sleep mode
Regulatory
Monitor face is IP66 – protected against powerful water jets
when installed according to instructions
Warning and Caution Symbols
WARNING: The
symbol refers to possible injury to the user or
significant damage to the meter if the user does not follow the procedures.
CAUTION: The
symbol refers to restrictions and rules with regard
to preventing damage to the meter.
WARNING
• If you are not knowledgeable about electrical systems, have an
electrical professional install this unit. The diagrams in these
instructions pertain to the installation of M2 Digital Meters and not
to the overall wiring of the vessel.
• If an inverter is installed on the vessel, its power leads must be
disconnected at the battery before the meter is installed.
• If an AC generator is installed on the vessel, it must be stopped
and rendered inoperable before the meter is installed.
• Verify that no other DC or AC sources are connected to the vessel's
wiring before installing the meter.
CAUTION
• The back of the unit is not waterproof. Do not install where the back
of the meter is exposed to water.

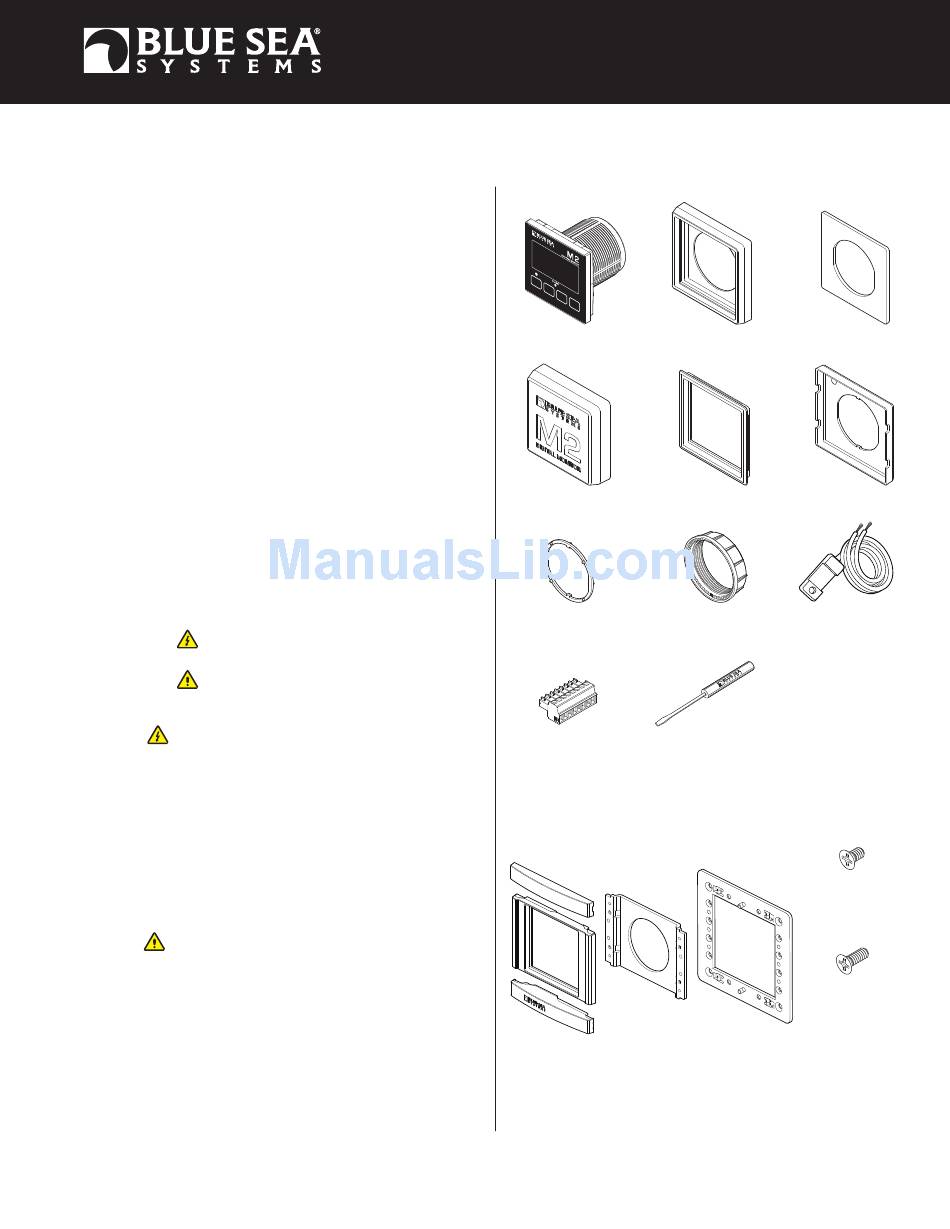

Components Included
M2 Head Unit
Surface Mount Bezel
Surface Mount Cover
Flat Mount Bezel
Mounting Ring
Mounting Nut
Connector
Screwdriver
Retail Package Only
360 Panel Mounting Kit
(PN 1525 sold separately)
Header
Bezel
Mount
Carrier
Mount
Footer
Surface Mount Gasket
and Seal
Flat Mount Clamp
4x 1821
Temperature Sensors
#6-32 x 1/4"
Flat Head
Machine Screws
(4X)
Panel
Frame
#6-32 x 3/8"
Flat Head
Machine Screws
(4X)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2 OLED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Blue Sea Systems M2 OLED

  • Page 1: Installation Checklist

    M2 OLED Temperature Monitor Instructions PN 1841 Components Included Installation Checklist • Check for components included • Read Warning and Cautions • Read page 3 for mounting instructions • Read System Overview, Mounting Considerations, Detailed Wiring, and Sensing Description • Follow Initial System Setup instructions •...
  • Page 2: Mounting Considerations

    Installation 1. Make all connections to the meter’s terminal block before connecting the terminal block to the unit. Keep hands away from the terminal block when applying power to the meter. 2. As the final DC connection, insert a fuse into the in-line fuse holder on the wire to the positive (+) battery terminal. Mounting Templates Flat Mount Surface Mount...
  • Page 3: Panel Mount

    Flat Mount 360 Panel Mount PN 1525 STEP 1 Use 1/4" Mounting Screws Mounting Ring and Nut 360 Panel Mount Carrier Clamp Panel Frame Flat Head Mount Mounting Unit Bezel Substrate STEP 2 Surface Mount Snap header and footer Header into mounting clips and post.
  • Page 4 The negative lead of all the temperature sensors should terminate as close as possible to pin 1. For a simple and clean installation, use Blue Sea Systems PN 2304 as a small common bus bar for all of the meters DC negative connection. There should be one connection between pin 1 of...
  • Page 5 Note: The negative feed of all of the temperature sensors should terminate as close as possible to pin 1. Use Blue Sea Systems’ PN 2304 Mini Bus with a short 18 AWG guage wire from pin 1 to the Mini Bus.
  • Page 6 M2 Relay Connections M2 Meters contains an internal MOSFET relay that can drive external DC loads up to 0.5A. The input is protected with a thermally activated auto-reset- ting fuse that will protect against shorts. In addition, an inline fuse rated at 5A should be used to protect against shorts. In typical applications, a power source is connected to the Relay+ pin and a load is connected to the Relay Out to Load connection.
  • Page 7 External Alarm (1070 Floyd Bell Turbo) The Relay+ terminal can support an external audible alarm. Such as the Floyd Bell Turbo Alarm (1070). External Alarm Supply 5 to 30V DC 1 2 3 4 5 6 7 8 + Red - Silver 1070 External Relay...
  • Page 8: Getting Started

    Example Screens From PN 1841 Temperature Meter When an M2 Meter is initially powered up, it will display the Blue Sea Systems Logo, its serial number and its Software revision. After a couple of seconds, the unit will display a high-level System Summary screen.
  • Page 9: Setting Alarms

    Other Display Indications The dotted lines in T4 indicate the Hi and Lo Alarm Levels. The Hi and Lo Relay levels are not shown. If Display MinMax is on, then split triangles on the right side of the each graph indicate the minimum and maximum levels. A single triangle indicates that the minimum and maximum levels are close to each other.
  • Page 10 Viewing Alarms Status For any active alarm, the parameter will flash if it is displayed. To view a complete list of active alarms, press Menu>Setup>Alarm Setup. Any active alarm will flash. You may have to scroll through the menu to see all of the alarms. Relay Setup &...
  • Page 11 Setting Input Thresholds Settings for each channel’s high and low temperature thresholds are provided. The connected relay’s normal operating state will toggle (change state) if these thresholds are met. For both high and low thresholds, the activation and deactivation levels are different to prevent the relay from rapidly toggling (cycling on and off).
  • Page 12: Display Setup

    Clearing Relay Notification If the Notification option is set to ON then any time the relay is opened (Normally Off) or closed (Normally On). A message will be displayed on the main screen. Pressing a key will clear this notification. If Silence is set to ON then the relay will be opened (Normally Off) or closed (Normally On). Viewing Relay Status For any active alarm, the parameter will flash if it is displayed.
  • Page 13 Temperature Channel Setup Changing System Labels The M2 allows the user to change the labels that are displayed above each channel. Each channel can have a maximum of 16 characters however in the summary screens only the first 11 or 12 characters of the channel label are displayed. Changing Label Names To change the name of a temperature channel, follow the instructions below: 1.
  • Page 14: Factory Reset

    Version Info The Version Info option in the Setup menu displays the product name, serial number, and software version. This information will be displayed on a screen after scrolling to Version Info and pressing Select. Pressing any button will return to the Setup menu. Factory Reset The Factory Reset option in the Setup menu allows the user to restore the meter’s factory default settings.
  • Page 15 425 Sequoia Drive Bellingham, WA 98226 USA p 360.738.8230 p 800.222.7617 USA and Canada Customer Service f 360.734.4195 conductor@bluesea.com www.bluesea.com 980023530 Rev. 002...
