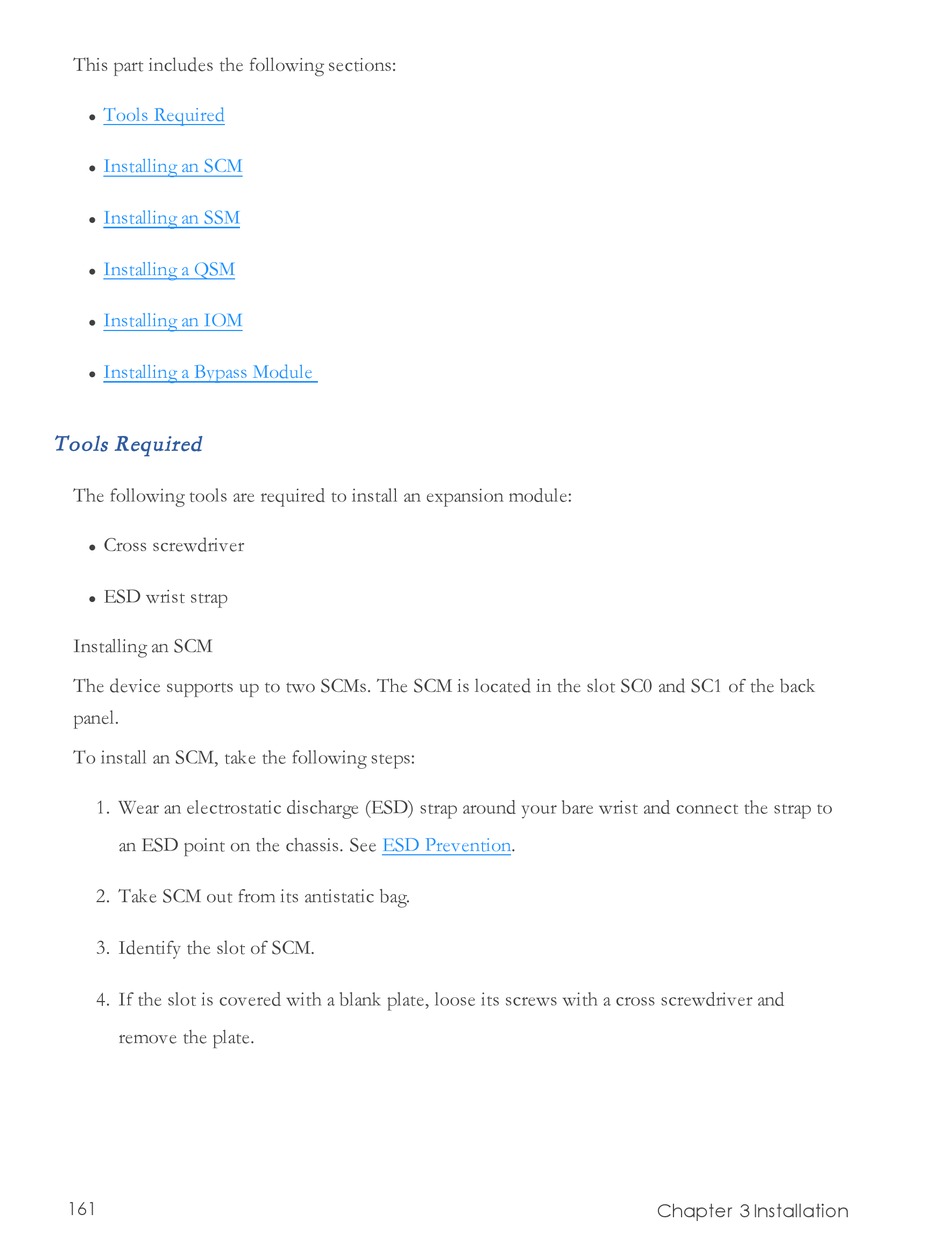

This part includes the following sections:

Tools Required

l
Installing an SCM
l
Installing an SSM
l
Installing a QSM
l
Installing an IOM
l
Installing a Bypass Module
l
Tools Required
The following tools are required to install an expansion module:
Cross screwdriver
l
ESD wrist strap
l
Installing an SCM
The device supports up to two SCMs. The SCM is located in the slot SC0 and SC1 of the back
panel.
To install an SCM, take the following steps:
1. Wear an electrostatic discharge (ESD) strap around your bare wrist and connect the strap to
an ESD point on the chassis. See
2. Take SCM out from its antistatic bag.
3. Identify the slot of SCM.
4. If the slot is covered with a blank plate, loose its screws with a cross screwdriver and
remove the plate.
161
ESD Prevention.
Chapter 3 Installation
